【Bluedroid】HFP连接流程源码分析（二）

接上一篇【Bluedroid】HFP连接流程源码分析（一）-CSDN博客分析。本篇主要围绕RFCOMM Connect 与 RFCOMM UA Frame 的处理流程来展开分析。

RFCOMM Connect

RFCOMM（Radio Frequency Communication）作为蓝牙协议栈的关键部分，旨在蓝牙设备间模拟串口通信，使传统串口应用能无缝迁移至蓝牙环境。RFCOMM连接的建立是一个复杂且有序的过程，涉及多个关键步骤：

• 服务发现与初始化：

  • 利用蓝牙服务发现协议（SDP）查找目标设备上的RFCOMM服务。

  • 本地设备RFCOMM层初始化，包括链路参数、配置信息等设置。

  • 配置L2CAP层，为后续链路建立奠定基础。

• 连接请求：

  • 发起方设备通过L2CAP层向目标设备发送连接请求。

  • 请求携带本地设备标识、期望链路参数等信息。

• 配置协商：

  • 目标设备接收连接请求后，双方进行配置协商。

  • 协商内容包括最大传输单元（MTU）、流控方式等。

  • 使用L2CA_ConfigInd和L2CA_ConfigRsp等消息进行交互。

• 链路建立：

  • 完成配置协商后，正式建立RFCOMM链路。

  • 链路两端进入就绪状态，可传输数据。

  • 支持音频数据、文本信息等传输。

RFCOMM UA

RFCOMM UA（Unnumbered Acknowledge，无编号确认）帧在RFCOMM连接过程中扮演着重要角色：

• 帧的功能：

  • 用于确认之前收到的特定控制帧。

  • 如接收方同意并准备好链路连接，会回发UA帧确认SABME帧的链路建立请求。

• 帧结构：

  • 遵循RFCOMM协议规定的帧结构。

  • 包含控制字段、地址字段等。

  • 控制字段携带帧类型、轮询/终结标志等信息。

  • 地址字段用于标识链路连接。

• 通信流程关联性：

  • UA帧是RFCOMM连接流程中的关键反馈环节。

  • 从链路建立初期的控制帧交互到后续链路状态变更的确认场景，UA帧均适时出现。

  • 确保通信双方知晓链路相关操作是否被正确接收与认可，促进通信流程顺畅运转。

RFCOMM Connect与RFCOMM UA Frame共同构成了RFCOMM协议中连接建立与确认的重要机制。通过服务发现、连接请求、配置协商与链路建立等步骤，RFCOMM Connect实现了蓝牙设备间的串口通信模拟。而RFCOMM UA Frame则作为关键反馈环节，确保了通信双方对链路相关操作的正确接收与认可。

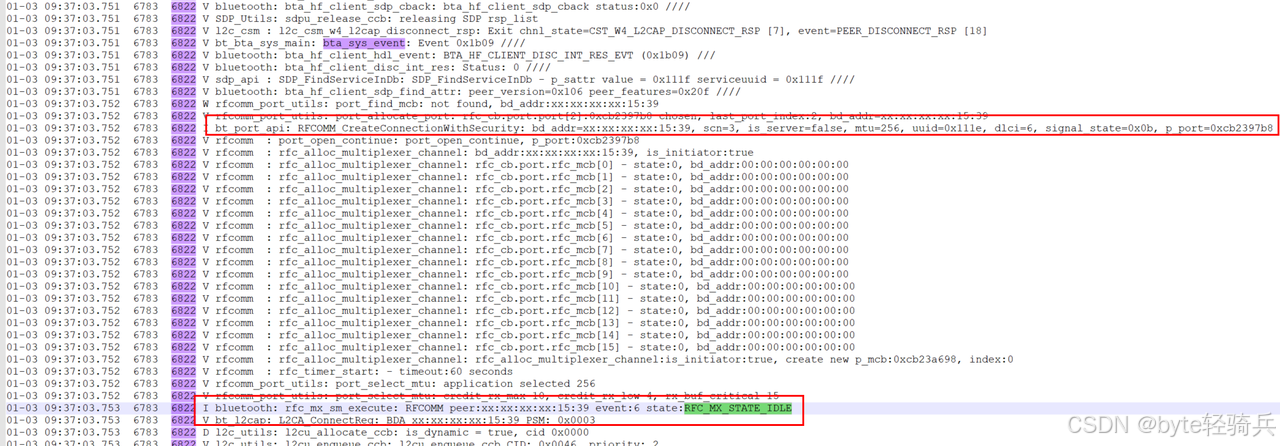

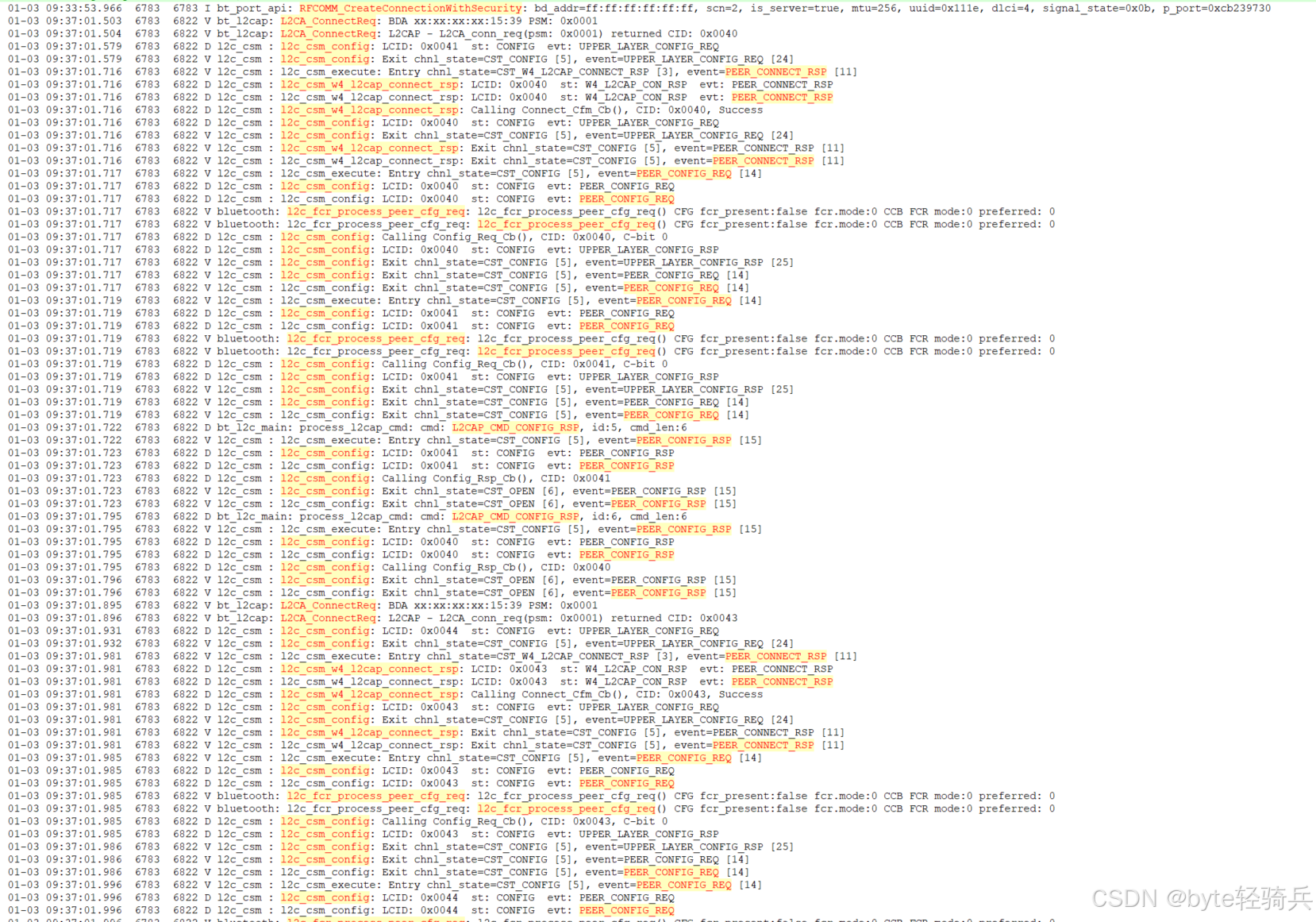

RFCOMM_CreateConnectionWithSecurity

/packages/modules/Bluetooth/system/stack/rfcomm/port_api.cc
/********************************************************************************* Function         RFCOMM_CreateConnectionWithSecurity** Description      RFCOMM_CreateConnectionWithSecurity function is used from*the application to establish serial port connection to the peer device, or*allow RFCOMM to accept a connection from the peer application.** Parameters:      scn          - Service Channel Number as registered with*                                 the SDP (server) or obtained using SDP from*                                 the peer device (client).*                  is_server    - true if requesting application is a server*                  mtu          - Maximum frame size the application can accept*                  bd_addr      - address of the peer (client)*                  p_handle     - OUT pointer to the handle.*                  p_mgmt_cb    - pointer to callback function to receive*                                 connection up/down events.*                  sec_mask     - bitmask of BTM_SEC_* values indicating the*                                 minimum security requirements for this*connection Notes:** Server can call this function with the same scn parameter multiple times if* it is ready to accept multiple simulteneous connections.** DLCI for the connection is (scn * 2 + 1) if client originates connection on* existing none initiator multiplexer channel.  Otherwise it is (scn * 2).* For the server DLCI can be changed later if client will be calling it using* (scn * 2 + 1) dlci.*******************************************************************************/
int RFCOMM_CreateConnectionWithSecurity(uint16_t uuid, uint8_t scn,bool is_server, uint16_t mtu,const RawAddress& bd_addr,uint16_t* p_handle,tPORT_CALLBACK* p_mgmt_cb,uint16_t sec_mask) {*p_handle = 0;if ((scn == 0) || (scn > RFCOMM_MAX_SCN)) {// Server Channel Number (SCN) should be in range [1, 30]log::error("Invalid SCN, bd_addr={}, scn={}, is_server={}, mtu={}, uuid={}",ADDRESS_TO_LOGGABLE_STR(bd_addr), static_cast<int>(scn),is_server, static_cast<int>(mtu), loghex(uuid));return (PORT_INVALID_SCN);}// For client that originates connection on the existing none initiator// multiplexer channel, DLCI should be odd.// DLCI计算：根据SCN和连接类型（客户端或服务器）计算DLCI（数据链路连接标识符）// 如果客户端在非发起方复用通道上发起连接，DLCI应为奇数；否则为偶数。uint8_t dlci;tRFC_MCB* p_mcb = port_find_mcb(bd_addr);if (p_mcb && !p_mcb->is_initiator && !is_server) {dlci = static_cast<uint8_t>((scn << 1) + 1);} else {dlci = (scn << 1);}// On the client side, do not allow the same (dlci, bd_addr) to be opened// twice by applicationtPORT* p_port;// 检查重复连接：对于客户端，检查是否已存在具有相同（DLCI，bd_addr）的打开端口 if (!is_server) {p_port = port_find_port(dlci, bd_addr);if (p_port != nullptr) {// if existing port is also a client port, error outif (!p_port->is_server) {log::error("already at opened state {}, RFC_state={}, MCB_state={}, ""bd_addr={}, scn={}, is_server={}, mtu={}, uuid={}, dlci={}, ""p_mcb={}, port={}",static_cast<int>(p_port->state),static_cast<int>(p_port->rfc.state),(p_port->rfc.p_mcb ? p_port->rfc.p_mcb->state : 0),ADDRESS_TO_LOGGABLE_STR(bd_addr), scn, is_server, mtu, loghex(uuid),dlci, fmt::ptr(p_mcb), p_port->handle);*p_handle = p_port->handle;return (PORT_ALREADY_OPENED);}}}// On the server side, always allocate a new port.// 分配端口：对于服务器，始终分配一个新端口p_port = port_allocate_port(dlci, bd_addr);if (p_port == nullptr) {log::error("no resources, bd_addr={}, scn={}, is_server={}, mtu={}, uuid={}, ""dlci={}",ADDRESS_TO_LOGGABLE_STR(bd_addr), scn, is_server, mtu, loghex(uuid),dlci);return PORT_NO_RESOURCES;}p_port->sec_mask = sec_mask;*p_handle = p_port->handle;// Get default signal state// 设置端口参数：根据UUID设置默认信号状态，并分配其他端口参数，如MTU、连接状态、UUID、是否是服务器、SCN、事件掩码等switch (uuid) {case UUID_PROTOCOL_OBEX:p_port->default_signal_state = PORT_OBEX_DEFAULT_SIGNAL_STATE;break;case UUID_SERVCLASS_SERIAL_PORT:p_port->default_signal_state = PORT_SPP_DEFAULT_SIGNAL_STATE;break;case UUID_SERVCLASS_LAN_ACCESS_USING_PPP:p_port->default_signal_state = PORT_PPP_DEFAULT_SIGNAL_STATE;break;case UUID_SERVCLASS_DIALUP_NETWORKING:case UUID_SERVCLASS_FAX:p_port->default_signal_state = PORT_DUN_DEFAULT_SIGNAL_STATE;break;default:p_port->default_signal_state =(PORT_DTRDSR_ON | PORT_CTSRTS_ON | PORT_DCD_ON);break;}// Assign port specific valuesp_port->state = PORT_CONNECTION_STATE_OPENING;p_port->uuid = uuid;p_port->is_server = is_server;p_port->scn = scn;p_port->ev_mask = 0;// Find MTU// If the MTU is not specified (0), keep MTU decision until the PN frame has// to be send at that time connection should be established and we will know// for sure our prefered MTU// MTU处理：如果指定了MTU，将其设置为指定值// 如果未指定MTU，则使用默认L2CAP MTU减去RFCOMM数据开销uint16_t rfcomm_mtu = L2CAP_MTU_SIZE - RFCOMM_DATA_OVERHEAD;if (mtu) {p_port->mtu = (mtu < rfcomm_mtu) ? mtu : rfcomm_mtu;} else { p_port->mtu = rfcomm_mtu;}// Other states// server doesn't need to release port when closing// 其他状态设置：对于服务器，设置端口以保持端口句柄和MTU。设置本地控制信号和流控制if (is_server) {p_port->keep_port_handle = true;// keep mtu that user asked, p_port->mtu could be updated during param// negotiationp_port->keep_mtu = p_port->mtu;}p_port->local_ctrl.modem_signal = p_port->default_signal_state;p_port->local_ctrl.fc = false;p_port->p_mgmt_callback = p_mgmt_cb;p_port->bd_addr = bd_addr;log::info("bd_addr={}, scn={}, is_server={}, mtu={}, uuid={}, dlci={}, ""signal_state={}, p_port={}",ADDRESS_TO_LOGGABLE_STR(bd_addr), scn, is_server, mtu, loghex(uuid), dlci,loghex(p_port->default_signal_state), fmt::ptr(p_port));// If this is not initiator of the connection need to just waitif (p_port->is_server) {return (PORT_SUCCESS);}// Open will be continued after security checks are passedreturn port_open_continue(p_port);
}

负责创建 RFCOMM 连接的前期准备工作，包括参数检查、资源分配、状态及参数配置等，同时处理了客户端重复连接、服务器端特殊需求等情况，为安全可靠的 RFCOMM 连接奠定基础。

port_open_continue

packages/modules/Bluetooth/system/stack/rfcomm/port_rfc.cc
/********************************************************************************* Function         port_open_continue** Description      This function is called after security manager completes*                  required security checks.** Returns          PORT_SUCCESS or PORT_[ERROR]*******************************************************************************/
int port_open_continue(tPORT* p_port) {log::verbose("port_open_continue, p_port:{}", fmt::ptr(p_port));/* Check if multiplexer channel has already been established */// 尝试为给定的BD地址分配一个复用器通道（Multiplexer Channel）tRFC_MCB* p_mcb = rfc_alloc_multiplexer_channel(p_port->bd_addr, true);if (p_mcb == nullptr) {log::warn("port_open_continue no mx channel");port_release_port(p_port);return (PORT_NO_RESOURCES);}p_port->rfc.p_mcb = p_mcb;// 记录该端口的DLCI（数据链路连接标识符）和句柄p_mcb->port_handles[p_port->dlci] = p_port->handle;/* Connection is up and we know local and remote features, select MTU */port_select_mtu(p_port); // 选择MTUif (p_mcb->state == RFC_MX_STATE_CONNECTED) {RFCOMM_ParameterNegotiationRequest(p_mcb, p_port->dlci, p_port->mtu); // 发送RFCOMM参数协商请求} else if ((p_mcb->state == RFC_MX_STATE_IDLE) ||(p_mcb->state == RFC_MX_STATE_DISC_WAIT_UA)) {// In RFC_MX_STATE_IDLE state, MX state machine will create connection// In RFC_MX_STATE_DISC_WAIT_UA state, MX state machine will recreate// connection after disconnecting is completedRFCOMM_StartReq(p_mcb); // 发送RFCOMM开始请求} else {// MX state machine ignores RFC_MX_EVENT_START_REQ in these states// When it enters RFC_MX_STATE_CONNECTED, it will check any openning portslog::verbose("port_open_continue: mx state({}) mx channel is opening",p_mcb->state);}return (PORT_SUCCESS);
}

继续打开端口的流程。涉及到复用器通道的分配、状态处理和MTU的选择，以及根据复用器的当前状态采取相应的动作。

RFCOMM_StartReq

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_port_if.cc
/********************************************************************************* Function         RFCOMM_StartReq** Description      This function handles Start Request from the upper layer.*                  If RFCOMM multiplexer channel can not be allocated*                  send start not accepted confirmation.  Otherwise dispatch*                  start event to the state machine.*******************************************************************************/
void RFCOMM_StartReq(tRFC_MCB* p_mcb) {rfc_mx_sm_execute(p_mcb, RFC_MX_EVENT_START_REQ, nullptr);
}

起到一个简单的转接作用，把来自上层的启动请求，原封不动地传递给复用器状态机 rfc_mx_sm_execute，让状态机去处理后续的逻辑。

rfc_mx_sm_execute(RFC_MX_EVENT_START_REQ)

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_sm_execute** Description      This function sends multiplexer events through the state*                  machine.** Returns          void*******************************************************************************/
void rfc_mx_sm_execute(tRFC_MCB* p_mcb, tRFC_MX_EVENT event, void* p_data) {CHECK(p_mcb != nullptr) << __func__ << ": NULL mcb for event " << event;log::info("RFCOMM peer:{} event:{} state:{}",ADDRESS_TO_LOGGABLE_CSTR(p_mcb->bd_addr), event,rfcomm_mx_state_text(static_cast<tRFC_MX_STATE>(p_mcb->state)));switch (p_mcb->state) {case RFC_MX_STATE_IDLE:rfc_mx_sm_state_idle(p_mcb, event, p_data);break;case RFC_MX_STATE_WAIT_CONN_CNF:rfc_mx_sm_state_wait_conn_cnf(p_mcb, event, p_data);break;case RFC_MX_STATE_CONFIGURE:rfc_mx_sm_state_configure(p_mcb, event, p_data);break;case RFC_MX_STATE_SABME_WAIT_UA:rfc_mx_sm_sabme_wait_ua(p_mcb, event, p_data);break;case RFC_MX_STATE_WAIT_SABME:rfc_mx_sm_state_wait_sabme(p_mcb, event, p_data);break;case RFC_MX_STATE_CONNECTED:rfc_mx_sm_state_connected(p_mcb, event, p_data);break;case RFC_MX_STATE_DISC_WAIT_UA:rfc_mx_sm_state_disc_wait_ua(p_mcb, event, p_data);break;default:log::error("Received unexpected event:{} in state:{}", event,p_mcb->state);}
}

进入RFCOMM协议栈状态机，一开始的状态是IDLE(RFC_MX_STATE_IDLE)。调用 rfc_mx_sm_state_idle处理事件。

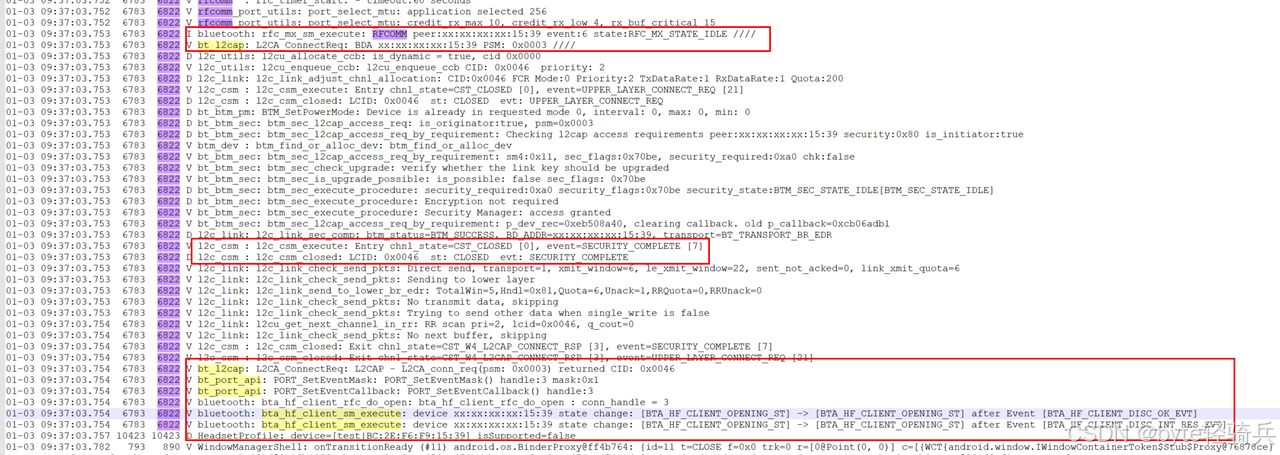

rfc_mx_sm_state_idle

packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_sm_state_idle** Description      This function handles events when the multiplexer is in*                  IDLE state. This state exists when connection is being*                  initially established.** Returns          void*******************************************************************************/
void rfc_mx_sm_state_idle(tRFC_MCB* p_mcb, tRFC_MX_EVENT event, void* p_data) {switch (event) {case RFC_MX_EVENT_START_REQ: {/* Initialize L2CAP MTU */p_mcb->peer_l2cap_mtu = L2CAP_DEFAULT_MTU - RFCOMM_MIN_OFFSET - 1;uint16_t lcid = L2CA_ConnectReq(BT_PSM_RFCOMM, p_mcb->bd_addr); // 建立与对端设备的L2CAP通道if (lcid == 0) {log::error("failed to open L2CAP channel for {}",ADDRESS_TO_LOGGABLE_STR(p_mcb->bd_addr));rfc_save_lcid_mcb(nullptr, p_mcb->lcid);p_mcb->lcid = 0;PORT_StartCnf(p_mcb, RFCOMM_ERROR); // 保存L2CAP通道ID（lcid）return;}p_mcb->lcid = lcid;/* Save entry for quicker access to mcb based on the LCID */rfc_save_lcid_mcb(p_mcb, p_mcb->lcid);p_mcb->state = RFC_MX_STATE_WAIT_CONN_CNF; // 等待连接确认return;}case RFC_MX_EVENT_CONN_IND:rfc_timer_start(p_mcb, RFCOMM_CONN_TIMEOUT);p_mcb->state = RFC_MX_STATE_CONFIGURE;return;case RFC_MX_EVENT_SABME:break;case RFC_MX_EVENT_UA:case RFC_MX_EVENT_DM:return;case RFC_MX_EVENT_DISC:rfc_send_dm(p_mcb, RFCOMM_MX_DLCI, true);return;case RFC_MX_EVENT_UIH:rfc_send_dm(p_mcb, RFCOMM_MX_DLCI, false);return;default:log::error("Mx error state {} event {}", p_mcb->state, event);return;}log::verbose("RFCOMM MX ignored - evt:{} in state:{}", event, p_mcb->state);
}

专门处理复用器处于IDLE状态时的各种事件。IDLE状态通常表示连接正在初始建立阶段。

针对事件RFC_MX_EVENT_START_REQ，尝试通过L2CA_ConnectReq建立与对端设备的L2CAP通道。参数指定了协议 / 服务复用器（PSM）为 BT_PSM_RFCOMM 以及目标蓝牙设备地址。并返回唯一的L2CAP通道ID。

在蓝牙通信架构里，当建立 RFCOMM（仿真串行端口的协议）的连接时，首先需要发起 L2CAP（逻辑链路控制与适配协议）连接请求。这是因为 L2CAP 为上层协议（如 RFCOMM）提供了面向连接和无连接的数据服务，是构建稳定蓝牙链路的基础层级。比如，手机要连接蓝牙音频设备进行音频传输，底层就得先发起这个请求来准备好链路。

L2CA_ConnectReq

L2CA_ConnectReq链接分析见 https://blog.csdn.net/weixin_37800531/article/details/141754774

直接看HCIlog:

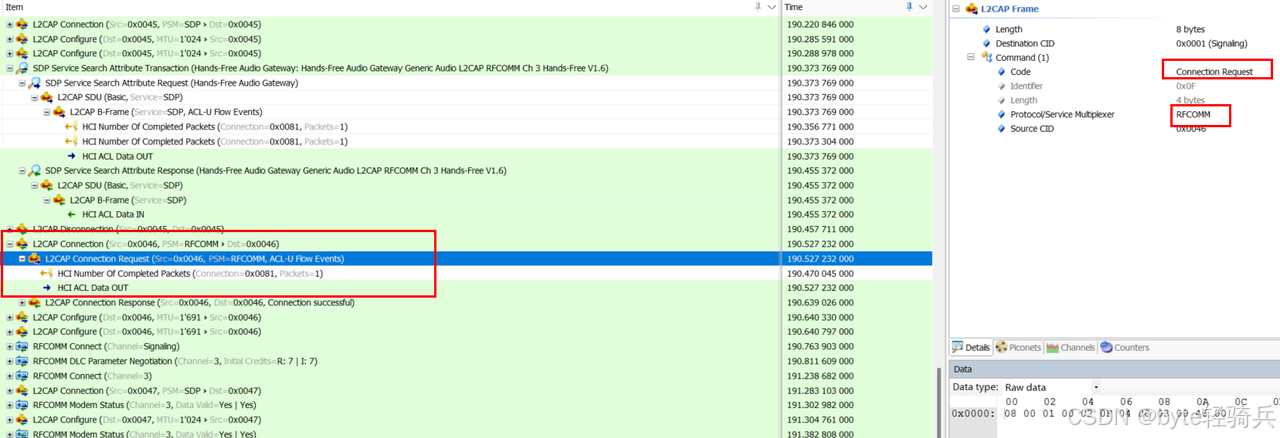

L2CAP Connection Request(RFCOMM)

当RFCOMM层需要建立一个到远程设备的连接时，它会通过L2CAP层发送一个连接请求。这个请求通常包含以下信息：

• PSM（Protocol/Service Multiplexer）：对于RFCOMM，通常使用固定的PSM值（如0x0003），以标识这是一个RFCOMM连接请求。

• 其他L2CAP参数：可能包括服务质量（QoS）要求、通道标识等。

L2CAP层接收到这个请求后，会尝试与远程设备的L2CAP层建立连接。发送一个包含上述信息的L2CAP连接请求帧到远程设备，并等待一个连接响应帧。

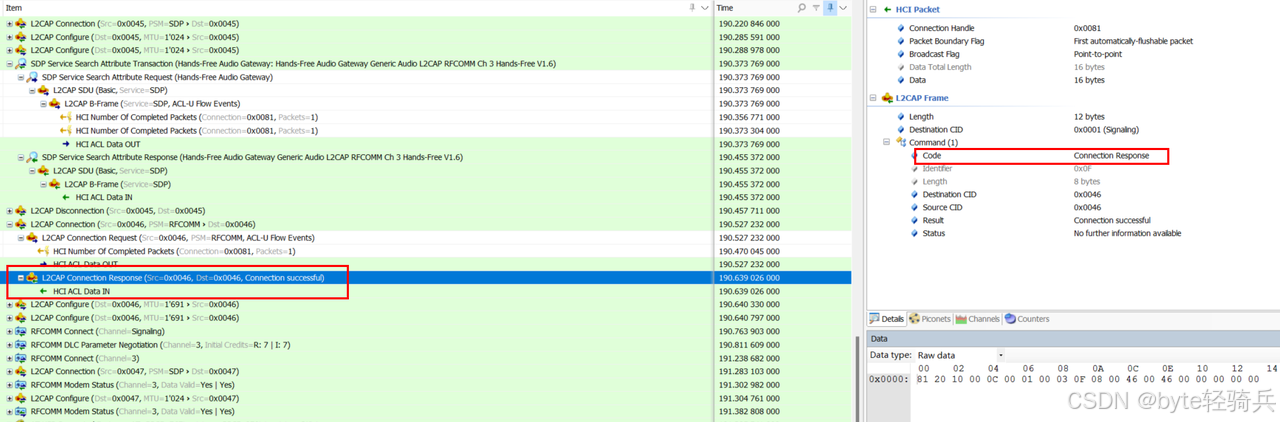

L2CAP Connection Response

远程设备的L2CAP层在接收到连接请求后，会根据其策略和资源情况决定是否接受连接。然后，它会发送一个L2CAP连接响应帧回给发起请求的设备。

这个响应帧通常包含以下信息：

• 状态代码：指示连接请求是否被接受（成功）或被拒绝（失败）。如果失败，可能还包含一个错误代码来说明失败的原因。

• 源CID（Channel Identifier）：如果连接成功，这是分配给新建立的L2CAP通道的本地通道标识符。

• 目的CID：这是请求中指定的远程通道标识符的回声（echo），通常用于确认。

如果连接成功建立，发起请求的设备现在可以使用这个L2CAP通道与远程设备进行RFCOMM通信。RFCOMM层将使用这个通道来传输和接收数据，模拟串行端口的通信行为。

acl_rcv_acl_data

ACL数据处理流程见 https://blog.csdn.net/weixin_37800531/article/details/141754774。

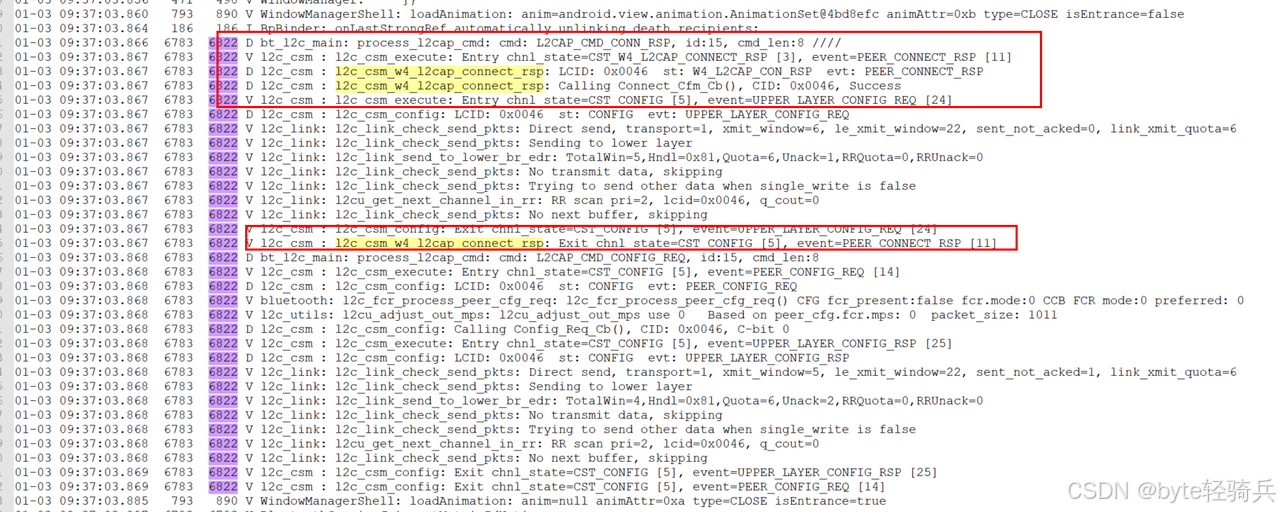

直接分析协议栈对L2CAP_CMD_CONN_RSP的处理

process_l2cap_cmd（L2CAP_CMD_CONN_RSP）

/packages/modules/Bluetooth/system/stack/l2cap/l2c_main.cccase L2CAP_CMD_CONN_RSP: {uint16_t lcid;if (p + 8 > p_next_cmd) {log::warn("Not enough data for L2CAP_CMD_CONN_REQ");return;}STREAM_TO_UINT16(con_info.remote_cid, p);STREAM_TO_UINT16(lcid, p);STREAM_TO_UINT16(con_info.l2cap_result, p);STREAM_TO_UINT16(con_info.l2cap_status, p);tL2C_CCB* p_ccb = l2cu_find_ccb_by_cid(p_lcb, lcid);if (!p_ccb) {log::warn("no CCB for conn rsp, LCID: {} RCID: {}", lcid,con_info.remote_cid);break;}if (p_ccb->local_id != id) {log::warn("con rsp - bad ID. Exp: {} Got: {}", p_ccb->local_id, id);break;}if (con_info.l2cap_result == L2CAP_CONN_OK) {l2c_csm_execute(p_ccb, L2CEVT_L2CAP_CONNECT_RSP, &con_info);} else if (con_info.l2cap_result == L2CAP_CONN_PENDING) {l2c_csm_execute(p_ccb, L2CEVT_L2CAP_CONNECT_RSP_PND, &con_info);} else {l2c_csm_execute(p_ccb, L2CEVT_L2CAP_CONNECT_RSP_NEG, &con_info);p_rcb = p_ccb->p_rcb;if (p_rcb->psm == BT_PSM_RFCOMM) {bluetooth::shim::GetSnoopLogger()->AddRfcommL2capChannel(p_lcb->Handle(), p_ccb->local_cid, p_ccb->remote_cid);} else if (p_rcb->log_packets) {bluetooth::shim::GetSnoopLogger()->AcceptlistL2capChannel(p_lcb->Handle(), p_ccb->local_cid, p_ccb->remote_cid);}}break;}

负责处理来自远程设备的连接响应，并根据响应结果执行相应的状态机操作。如果l2cap_result为L2CAP_CONN_OK（连接成功），则调用l2c_csm_execute函数，传入相应的事件L2CEVT_L2CAP_CONNECT_RSP和连接信息con_info，以执行状态机。

l2c_csm_execute（L2CEVT_L2CAP_CONNECT_RSP）

    case CST_W4_L2CAP_CONNECT_RSP:l2c_csm_w4_l2cap_connect_rsp(p_ccb, event, p_data);break;

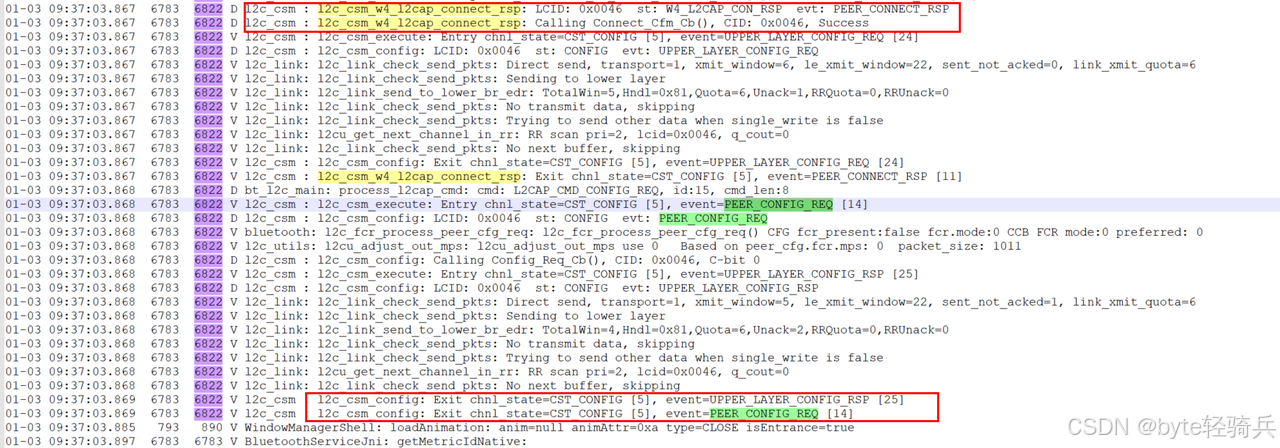

l2c_csm_w4_l2cap_connect_rsp

/packages/modules/Bluetooth/system/stack/l2cap/l2c_csm.cc
/********************************************************************************* Function         l2c_csm_w4_l2cap_connect_rsp** Description      This function handles events when the channel is in*                  CST_W4_L2CAP_CONNECT_RSP state.** Returns          void*******************************************************************************/
static void l2c_csm_w4_l2cap_connect_rsp(tL2C_CCB* p_ccb, tL2CEVT event,void* p_data) {tL2C_CONN_INFO* p_ci = (tL2C_CONN_INFO*)p_data;tL2CA_DISCONNECT_IND_CB* disconnect_ind =p_ccb->p_rcb->api.pL2CA_DisconnectInd_Cb;tL2CA_CREDIT_BASED_CONNECT_CFM_CB* credit_based_connect_cfm =p_ccb->p_rcb->api.pL2CA_CreditBasedConnectCfm_Cb;uint16_t local_cid = p_ccb->local_cid;tL2C_LCB* p_lcb = p_ccb->p_lcb;log::debug("LCID: 0x{:04x}  st: W4_L2CAP_CON_RSP  evt: {}", p_ccb->local_cid,l2c_csm_get_event_name(event));switch (event) {...case L2CEVT_L2CAP_CONNECT_RSP: /* Got peer connect confirm */p_ccb->remote_cid = p_ci->remote_cid;if (p_ccb->p_lcb->transport == BT_TRANSPORT_LE) {/* Connection is completed */alarm_cancel(p_ccb->l2c_ccb_timer);p_ccb->chnl_state = CST_OPEN;l2c_csm_indicate_connection_open(p_ccb);p_ccb->local_conn_cfg = p_ccb->p_rcb->coc_cfg;p_ccb->remote_credit_count = p_ccb->p_rcb->coc_cfg.credits;l2c_csm_execute(p_ccb, L2CEVT_L2CA_CONNECT_RSP, NULL);} else {p_ccb->chnl_state = CST_CONFIG;alarm_set_on_mloop(p_ccb->l2c_ccb_timer, L2CAP_CHNL_CFG_TIMEOUT_MS,l2c_ccb_timer_timeout, p_ccb);}log::debug("Calling Connect_Cfm_Cb(), CID: 0x{:04x}, Success",p_ccb->local_cid);l2c_csm_send_config_req(p_ccb); // 发送一个L2CAP配置请求break;...default:log::error("Handling unexpected event:{}", l2c_csm_get_event_name(event));}log::verbose("Exit chnl_state={} [{}], event={} [{}]",channel_state_text(p_ccb->chnl_state), p_ccb->chnl_state,l2c_csm_get_event_name(event), event);
}

负责处理连接响应事件，并根据传输类型（LE或BR/EDR）执行不同的操作。它还负责启动配置过程，确保信道正确配置以供后续数据传输使用。

l2c_csm_send_config_req

/packages/modules/Bluetooth/system/stack/l2cap/l2c_csm.cc
// Send a config request and adjust the state machine
static void l2c_csm_send_config_req(tL2C_CCB* p_ccb) {tL2CAP_CFG_INFO config{}; // 存储L2CAP信道的配置信息config.mtu_present = true; // 表示MTU字段是有效的config.mtu = p_ccb->p_rcb->my_mtu; // my_mtu是本地设备希望使用的MTU大小p_ccb->max_rx_mtu = config.mtu; // 表示本地设备能够接收的最大MTU大小// 设置FCR（Flow Control Rules，流控规则)if (p_ccb->p_rcb->ertm_info.preferred_mode != L2CAP_FCR_BASIC_MODE) {config.fcr_present = true; // 表示FCR字段是有效的config.fcr = kDefaultErtmOptions;}p_ccb->our_cfg = config;l2c_csm_execute(p_ccb, L2CEVT_L2CA_CONFIG_REQ, &config);
}

负责准备L2CAP信道的配置信息，包括MTU和FCR（如果适用），然后借助状态机推动链路配置进程。确保两端设备在传输参数、流控模式等关键方面达成一致，为稳定高效的蓝牙数据传输筑牢基础。

l2c_csm_execute(L2CEVT_L2CA_CONFIG_REQ)

    case CST_CONFIG:l2c_csm_config(p_ccb, event, p_data);break;

l2c_csm_config

packages/modules/Bluetooth/system/stack/l2cap/l2c_csm.cc
/********************************************************************************* Function         l2c_csm_config** Description      This function handles events when the channel is in*                  CONFIG state.** Returns          void*******************************************************************************/
static void l2c_csm_config(tL2C_CCB* p_ccb, tL2CEVT event, void* p_data) {tL2CAP_CFG_INFO* p_cfg = (tL2CAP_CFG_INFO*)p_data;tL2CA_DISCONNECT_IND_CB* disconnect_ind =p_ccb->p_rcb->api.pL2CA_DisconnectInd_Cb;uint16_t local_cid = p_ccb->local_cid;uint8_t cfg_result;tL2C_LCB* p_lcb = p_ccb->p_lcb;tL2C_CCB* temp_p_ccb;tL2CAP_LE_CFG_INFO* p_le_cfg = (tL2CAP_LE_CFG_INFO*)p_data;log::debug("LCID: 0x{:04x}  st: CONFIG  evt: {}", p_ccb->local_cid,l2c_csm_get_event_name(event));switch (event) {...case L2CEVT_L2CA_CONFIG_REQ: /* Upper layer config req   */l2cu_process_our_cfg_req(p_ccb, p_cfg); // 处理本地配置请求l2cu_send_peer_config_req(p_ccb, p_cfg); // 向对端发送配置请求alarm_set_on_mloop(p_ccb->l2c_ccb_timer, L2CAP_CHNL_CFG_TIMEOUT_MS,l2c_ccb_timer_timeout, p_ccb);break;...default:log::error("Handling unexpected event:{}", l2c_csm_get_event_name(event));}log::verbose("Exit chnl_state={} [{}], event={} [{}]",channel_state_text(p_ccb->chnl_state), p_ccb->chnl_state,l2c_csm_get_event_name(event), event);
}

通道处于 CONFIG 状态时的事件处理，对上层配置请求事件进行有序响应，包括本地处理、向对等设备发送请求以及设置超时机制。

l2cu_send_peer_config_req

l2cu_send_peer_config_req见 https://blog.csdn.net/weixin_37800531/article/details/141754774

当一方设备（通常是发起连接的设备，也称为“主机”或“主设备”）希望设置与另一方设备（从设备或“从机”）之间的L2CAP信道参数时，会发送一个L2CAP配置请求（Configure Request）。这个请求包含了主机希望设置的信道参数。

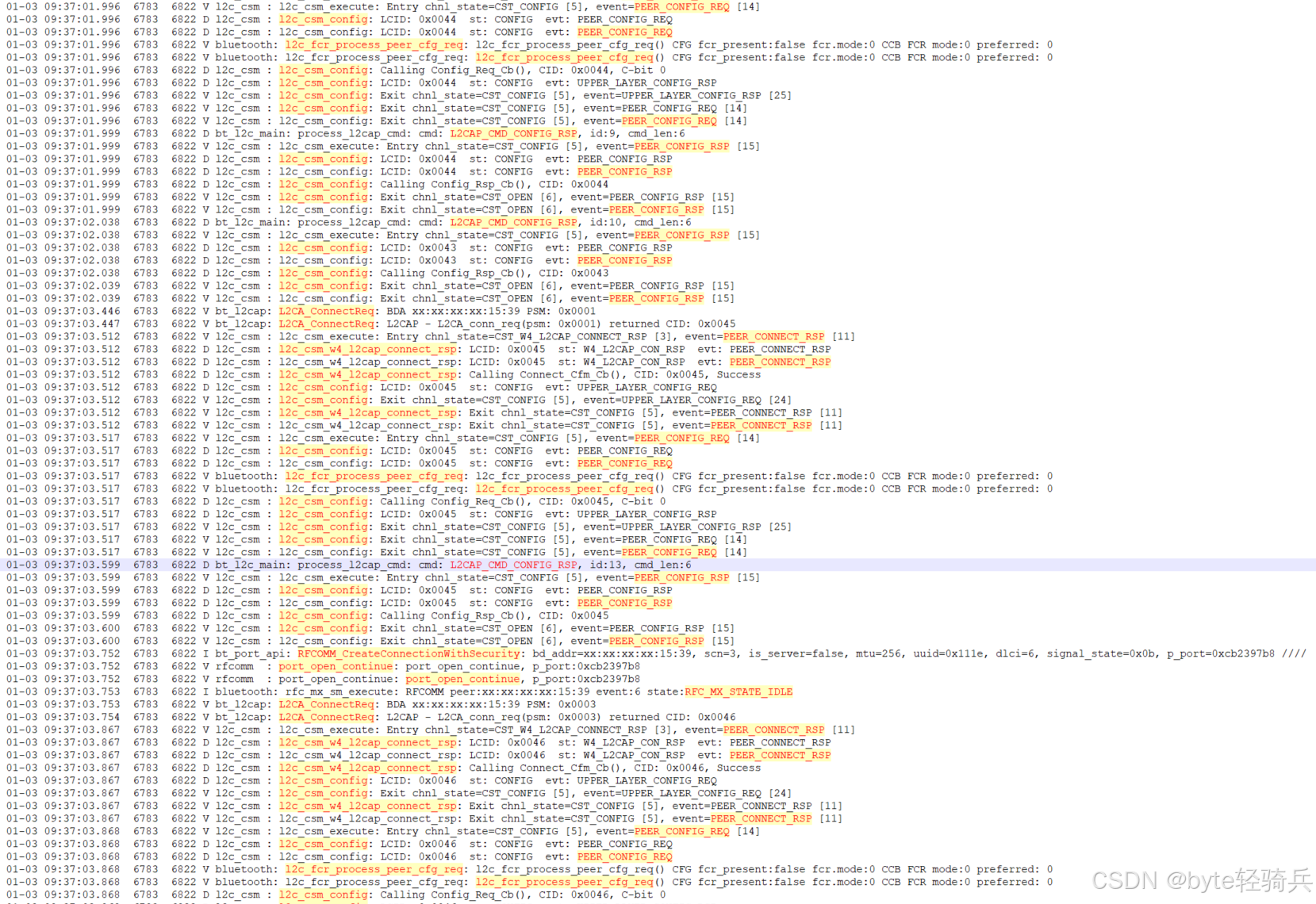

直接看对应的HCI LOG:

L2CAP Configure Request ( MTU=1'691, ACL-U Flow Events)

在 L2CAP 链路建立过程中，配置请求用于协商两端设备间的链路参数，确保后续数据传输的高效与稳定。这里指定的 MTU为 1,691 字节，以及涉及 ACL-U（异步无连接链路）流事件相关配置，是为了让双方就数据传输的包大小上限与流控机制达成共识。

L2CAP配置请求包含以下参数：

• MTU（Maximum Transmission Unit）：最大传输单元设置为1691字节。MTU定义了可以通过L2CAP信道一次性传输的最大数据量。这个值可以根据应用需求进行调整，但受到蓝牙规范中定义的限制（对于基本L2CAP信道，MTU最大值为65535字节，但考虑到其他因素，如设备能力和蓝牙堆栈实现，实际可用值可能较小）。

• ACL-U Flow Events：ACL（Asynchronous Connection-Less）数据链路上的流量事件。这个参数与流量控制相关，用于管理信道上的数据传输。ACL-U Flow Events允许设备监控和报告信道上的数据传输情况，以便进行适当的流量调整。然而，需要注意的是，不是所有的L2CAP信道都会使用流量事件，取决于信道类型和设备配置。

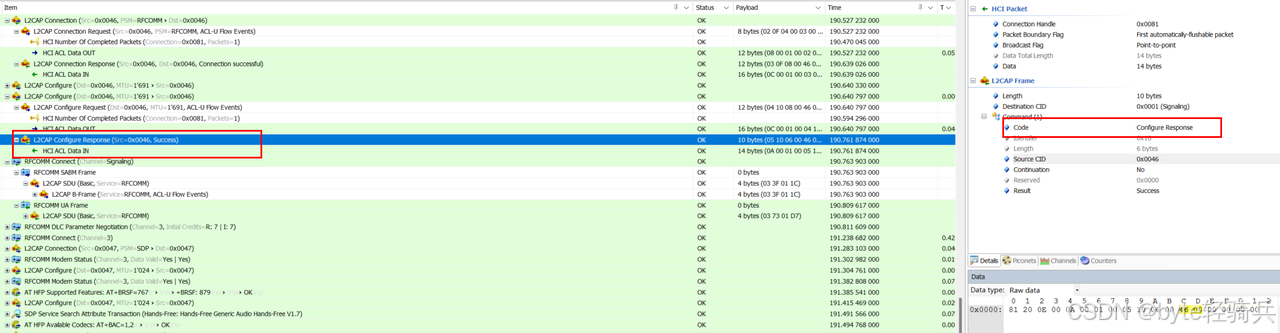

L2CAP Configure Response

在从设备接收到配置请求后，它会评估请求中的参数，并根据自己的能力和配置来决定是否接受这些参数。然后，从设备会发送一个L2CAP配置响应（Configure Response）回给主机。

配置响应包含以下内容：

• 结果代码：指示从设备是否接受了配置请求。如果接受，结果代码将指示成功；如果不接受，则可能包含拒绝的原因（如参数不支持、资源不足等）。

• 实际使用的参数：如果配置请求被接受，并且从设备对请求中的某些参数进行了调整（例如，降低了MTU值以匹配自己的限制），则配置响应中将包含实际使用的参数值。

• 继续标志：在某些情况下，配置过程可能需要多个步骤（例如，当双方设备需要就多个参数进行协商时）。继续标志用于指示配置过程是否已完成，或者是否还需要进一步的配置请求和响应。

一旦双方设备就信道参数达成一致，L2CAP信道就被认为是配置完成的，可以开始传输数据了。如果配置过程中出现问题，则可能需要重新尝试配置，或者连接可能会被断开。

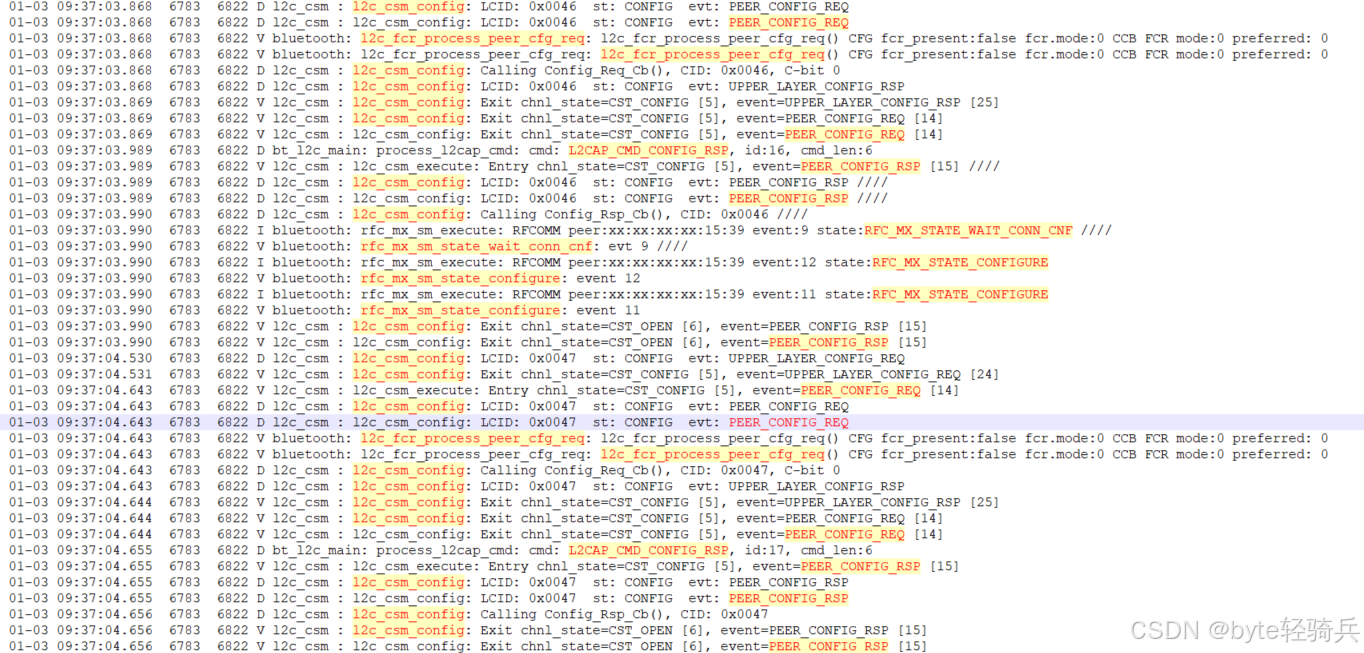

process_l2cap_cmd(L2CAP_CMD_CONFIG_RSP)

case L2CAP_CMD_CONFIG_RSP: {uint8_t* p_cfg_end = p + cmd_len;uint16_t lcid;if (p + 6 > p_next_cmd) {log::warn("Not enough data for L2CAP_CMD_CONFIG_RSP");return;}// 解析配置响应头STREAM_TO_UINT16(lcid, p);STREAM_TO_UINT16(cfg_info.flags, p);STREAM_TO_UINT16(cfg_info.result, p);cfg_info.flush_to_present = cfg_info.mtu_present =cfg_info.qos_present = cfg_info.fcr_present = cfg_info.fcs_present =false;//循环解析配置参数while (p < p_cfg_end) {uint8_t cfg_code, cfg_len;if (p + 2 > p_next_cmd) {log::warn("Not enough data for L2CAP_CMD_CONFIG_RSP sub_event");return;}STREAM_TO_UINT8(cfg_code, p);STREAM_TO_UINT8(cfg_len, p);switch (cfg_code & 0x7F) {case L2CAP_CFG_TYPE_MTU: // 解析最大传输单元cfg_info.mtu_present = true;if (p + 2 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_MTU");return;}STREAM_TO_UINT16(cfg_info.mtu, p);break;case L2CAP_CFG_TYPE_FLUSH_TOUT: // 解析刷新超时cfg_info.flush_to_present = true;if (p + 2 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_FLUSH_TOUT");return;}STREAM_TO_UINT16(cfg_info.flush_to, p);break;case L2CAP_CFG_TYPE_QOS: // 解析服务质量参数，包括QoS标志、服务类型、令牌速率、令牌桶大小、峰值带宽、延迟和延迟变化cfg_info.qos_present = true;if (p + 2 + 5 * 4 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_QOS");return;}STREAM_TO_UINT8(cfg_info.qos.qos_flags, p);STREAM_TO_UINT8(cfg_info.qos.service_type, p);STREAM_TO_UINT32(cfg_info.qos.token_rate, p);STREAM_TO_UINT32(cfg_info.qos.token_bucket_size, p);STREAM_TO_UINT32(cfg_info.qos.peak_bandwidth, p);STREAM_TO_UINT32(cfg_info.qos.latency, p);STREAM_TO_UINT32(cfg_info.qos.delay_variation, p);break;case L2CAP_CFG_TYPE_FCR: // 解析流量控制参数，包括模式、发送窗口大小、最大传输次数、重传超时、监视超时和最大PDU大小cfg_info.fcr_present = true;if (p + 3 + 3 * 2 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_FCR");return;}STREAM_TO_UINT8(cfg_info.fcr.mode, p);STREAM_TO_UINT8(cfg_info.fcr.tx_win_sz, p);STREAM_TO_UINT8(cfg_info.fcr.max_transmit, p);STREAM_TO_UINT16(cfg_info.fcr.rtrans_tout, p);STREAM_TO_UINT16(cfg_info.fcr.mon_tout, p);STREAM_TO_UINT16(cfg_info.fcr.mps, p);break;case L2CAP_CFG_TYPE_FCS: // 解析帧校验序列cfg_info.fcs_present = true;if (p + 1 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_FCS");return;}STREAM_TO_UINT8(cfg_info.fcs, p);break;case L2CAP_CFG_TYPE_EXT_FLOW: // 解析扩展流量规范参数cfg_info.ext_flow_spec_present = true;if (p + 2 + 2 + 3 * 4 > p_next_cmd) {log::warn("Not enough data for L2CAP_CFG_TYPE_EXT_FLOW");return;}STREAM_TO_UINT8(cfg_info.ext_flow_spec.id, p);STREAM_TO_UINT8(cfg_info.ext_flow_spec.stype, p);STREAM_TO_UINT16(cfg_info.ext_flow_spec.max_sdu_size, p);STREAM_TO_UINT32(cfg_info.ext_flow_spec.sdu_inter_time, p);STREAM_TO_UINT32(cfg_info.ext_flow_spec.access_latency, p);STREAM_TO_UINT32(cfg_info.ext_flow_spec.flush_timeout, p);break;}}tL2C_CCB* p_ccb = l2cu_find_ccb_by_cid(p_lcb, lcid); // 查找对应的通道控制块（CCB）if (p_ccb) {if (p_ccb->local_id != id) {log::warn("cfg rsp - bad ID. Exp: {} Got: {}", p_ccb->local_id, id);break;}if (cfg_info.result == L2CAP_CFG_OK) {l2c_csm_execute(p_ccb, L2CEVT_L2CAP_CONFIG_RSP, &cfg_info);} else {l2c_csm_execute(p_ccb, L2CEVT_L2CAP_CONFIG_RSP_NEG, &cfg_info);}} else {log::warn("Rcvd cfg rsp for unknown CID: 0x{:04x}", lcid);}break;}

处理L2CAP配置响应，解析其中的配置参数，并根据配置结果更新相应的通道状态。通过这种方式，蓝牙设备可以协商并确定数据传输的参数，确保数据能够正确、高效地传输。

l2c_csm_execute(L2CEVT_L2CAP_CONFIG_RSP)

    case CST_CONFIG:l2c_csm_config(p_ccb, event, p_data);break;

l2c_csm_config

/packages/modules/Bluetooth/system/stack/l2cap/l2c_csm.cc    case L2CEVT_L2CAP_CONFIG_RSP: /* Peer config response  */l2cu_process_peer_cfg_rsp(p_ccb, p_cfg); // 根据对端的配置参数更新当前连接控制块（p_ccb）中的配置信息/* TBD: When config options grow beyong minimum MTU (48 bytes)*      logic needs to be added to handle responses with*      continuation bit set in flags field.*       1. Send additional config request out until C-bit is cleared in* response*/p_ccb->config_done |= OB_CFG_DONE; // 表示本端已经发送了配置请求，并且收到了对端的响应if (p_ccb->config_done & IB_CFG_DONE) { // 表示双方的配置交换已经完成/* Verify two sides are in compatible modes before continuing */// 配置兼容性检查if (p_ccb->our_cfg.fcr.mode != p_ccb->peer_cfg.fcr.mode) {l2cu_send_peer_disc_req(p_ccb); // 发送断开连接请求log::warn("Calling Disconnect_Ind_Cb(Incompatible CFG), CID: 0x{:04x}  No ""Conf Needed",p_ccb->local_cid);l2cu_release_ccb(p_ccb);(*disconnect_ind)(local_cid, false); // 调用disconnect_ind回调函数通知上层断开连接break;}p_ccb->config_done |= RECONFIG_FLAG;p_ccb->chnl_state = CST_OPEN;l2c_link_adjust_chnl_allocation();alarm_cancel(p_ccb->l2c_ccb_timer);/* If using eRTM and waiting for an ACK, restart the ACK timer */// 重新启动ERTM（Enhanced Retransmission Mode）的ACK计时器if (p_ccb->fcrb.wait_ack) l2c_fcr_start_timer(p_ccb);/*** check p_ccb->our_cfg.fcr.mon_tout and*p_ccb->our_cfg.fcr.rtrans_tout** we may set them to zero when sending config request during*renegotiation*/// ERTM模式下的超时调整if ((p_ccb->our_cfg.fcr.mode == L2CAP_FCR_ERTM_MODE) &&((p_ccb->our_cfg.fcr.mon_tout == 0) ||(p_ccb->our_cfg.fcr.rtrans_tout))) {l2c_fcr_adj_monitor_retran_timeout(p_ccb);}/* See if we can forward anything on the hold queue */// 发送待处理数据包if (!fixed_queue_is_empty(p_ccb->xmit_hold_q)) {l2c_link_check_send_pkts(p_ccb->p_lcb, 0, NULL);}}if (p_ccb->config_done & RECONFIG_FLAG) { // ，表示这是重新配置后的首次成功配置响应// Notify only once// 通道打开通知bluetooth::shim::GetSnoopLogger()->SetL2capChannelOpen(p_ccb->p_lcb->Handle(), p_ccb->local_cid, p_ccb->remote_cid,p_ccb->p_rcb->psm,p_ccb->peer_cfg.fcr.mode != L2CAP_FCR_BASIC_MODE);}log::debug("Calling Config_Rsp_Cb(), CID: 0x{:04x}", p_ccb->local_cid);// 调用配置响应回调函数p_ccb->remote_config_rsp_result = p_cfg->result;if (p_ccb->config_done & IB_CFG_DONE) {l2c_csm_indicate_connection_open(p_ccb); // 通知连接已打开}break;

L2CAP协议栈中处理配置响应事件的核心部分，涉及到配置参数的交换、配置兼容性的检查、通道状态的更新、超时管理以及数据包的发送等多个方面。

l2c_csm_indicate_connection_open

packages/modules/Bluetooth/system/stack/l2cap/l2c_csm.cc
static void l2c_csm_indicate_connection_open(tL2C_CCB* p_ccb) {// 判断连接是由本地设备发起还是由远程设备发起if (p_ccb->connection_initiator == L2CAP_INITIATOR_LOCAL) {(*p_ccb->p_rcb->api.pL2CA_ConnectCfm_Cb)(p_ccb->local_cid, L2CAP_CONN_OK);} else {if (*p_ccb->p_rcb->api.pL2CA_ConnectInd_Cb) {(*p_ccb->p_rcb->api.pL2CA_ConnectInd_Cb)(p_ccb->p_lcb->remote_bd_addr, p_ccb->local_cid, p_ccb->p_rcb->psm,p_ccb->remote_id);} else {log::warn("pL2CA_ConnectInd_Cb is null");}}if (p_ccb->chnl_state == CST_OPEN && !p_ccb->p_lcb->is_transport_ble()) {(*p_ccb->p_rcb->api.pL2CA_ConfigCfm_Cb)(p_ccb->local_cid, p_ccb->connection_initiator, &p_ccb->peer_cfg); // 配置确认的回调函数}power_telemetry::GetInstance().LogChannelConnected(p_ccb->p_rcb->psm, p_ccb->local_cid, p_ccb->remote_id,p_ccb->p_lcb->remote_bd_addr);
}

负责在L2CAP连接打开后，根据连接是由本地还是远程发起，调用相应的回调函数。

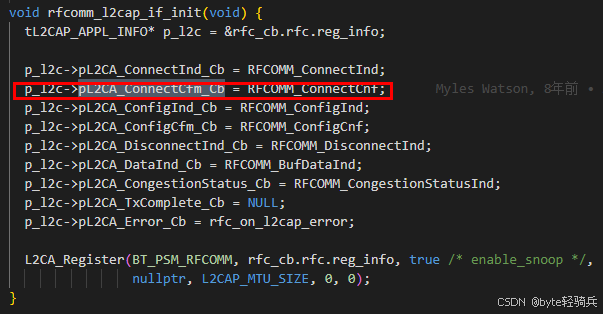

RFCOMM_ConnectCnf

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_l2cap_if.cc
/********************************************************************************* Function         RFCOMM_ConnectCnf** Description      This is a callback function called by L2CAP when*                  L2CA_ConnectCnf received.  Save L2CAP handle and dispatch*                  event to the FSM.*******************************************************************************/
void RFCOMM_ConnectCnf(uint16_t lcid, uint16_t result) {tRFC_MCB* p_mcb = rfc_find_lcid_mcb(lcid); // 查找与给定lcid相关联的RFCOMM主控制块if (!p_mcb) {log::error("RFCOMM_ConnectCnf LCID:0x{:x}", lcid);return;}// 处理挂起的LCIDif (p_mcb->pending_lcid) { // 如果MCB中存在一个挂起的lcid// 意味着RFCOMM层之前发起了一个连接请求，并且正在等待对方的响应/* if peer rejects our connect request but peer's connect request is pending*/if (result != L2CAP_CONN_OK) {return;} else {log::verbose("RFCOMM_ConnectCnf peer gave up pending LCID(0x{:x})",p_mcb->pending_lcid);/* Peer gave up its connection request, make sure cleaning up L2CAP* channel */L2CA_DisconnectReq(p_mcb->pending_lcid);p_mcb->pending_lcid = 0;}}/* Save LCID to be used in all consecutive calls to L2CAP */p_mcb->lcid = lcid;rfc_mx_sm_execute(p_mcb, RFC_MX_EVENT_CONN_CNF, &result);
}

处理连接结果、管理挂起的连接请求，并将事件传递给RFCOMM的状态机以进行进一步的处理。

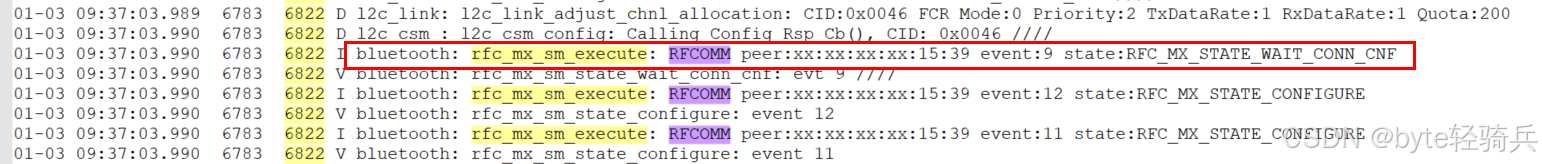

rfc_mx_sm_execute（RFC_MX_EVENT_CONN_CNF）

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_sm_execute** Description      This function sends multiplexer events through the state*                  machine.** Returns          void*******************************************************************************/
void rfc_mx_sm_execute(tRFC_MCB* p_mcb, tRFC_MX_EVENT event, void* p_data) {CHECK(p_mcb != nullptr) << __func__ << ": NULL mcb for event " << event;log::info("RFCOMM peer:{} event:{} state:{}",ADDRESS_TO_LOGGABLE_CSTR(p_mcb->bd_addr), event,rfcomm_mx_state_text(static_cast<tRFC_MX_STATE>(p_mcb->state)));switch (p_mcb->state) {...case RFC_MX_STATE_WAIT_CONN_CNF:rfc_mx_sm_state_wait_conn_cnf(p_mcb, event, p_data);break;...default:log::error("Received unexpected event:{} in state:{}", event,p_mcb->state);}
}

继续看rfc_mx_sm_state_wait_conn_cnf。

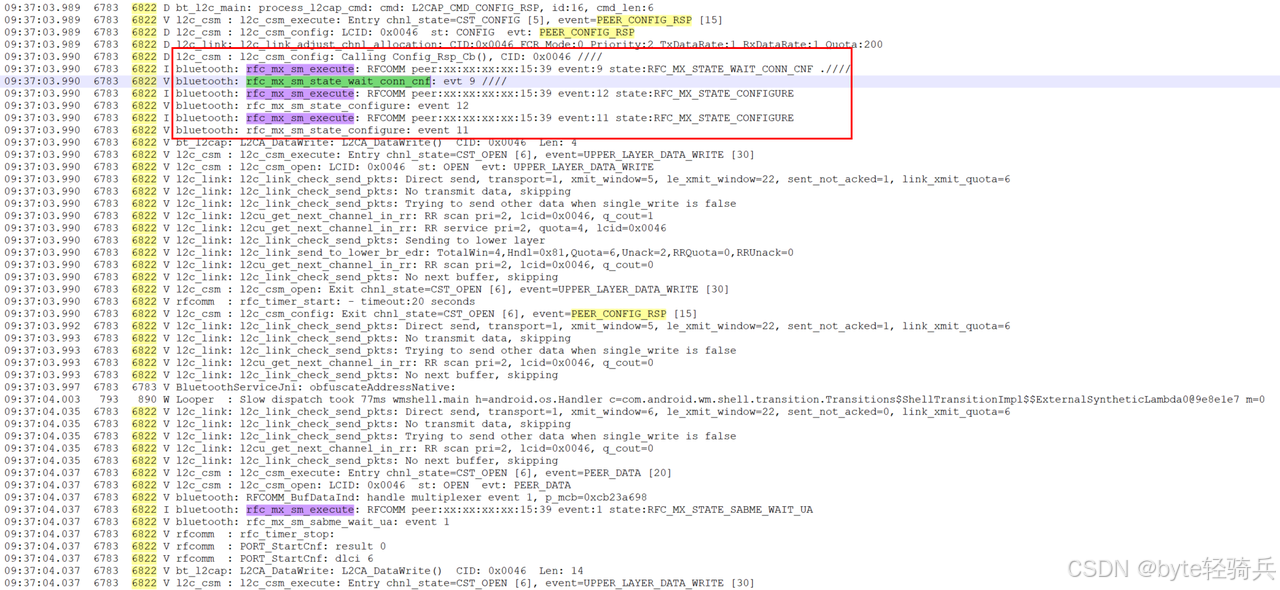

rfc_mx_sm_state_wait_conn_cnf

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_sm_state_wait_conn_cnf** Description      This function handles events when the multiplexer is*                  waiting for Connection Confirm from L2CAP.** Returns          void*******************************************************************************/
void rfc_mx_sm_state_wait_conn_cnf(tRFC_MCB* p_mcb, tRFC_MX_EVENT event,void* p_data) {log::verbose("evt {}", event);switch (event) {...case RFC_MX_EVENT_CONN_CNF: // 接收到连接确认事件if (*((uint16_t*)p_data) != L2CAP_SUCCESS) { // 连接未成功p_mcb->state = RFC_MX_STATE_IDLE; // 通知上层应用连接结果PORT_StartCnf(p_mcb, *((uint16_t*)p_data));return;}p_mcb->state = RFC_MX_STATE_CONFIGURE; // 将多路复用器的状态设置为配置状态，准备进行下一步的配置return;...default:log::error("Received unexpected event:{} in state:{}", event,p_mcb->state);}log::verbose("RFCOMM MX ignored - evt:{} in state:{}", event, p_mcb->state);
}

RFCOMM多路复用器有限状态机中处理等待连接确认状态的关键部分，根据L2CAP层的连接结果更新状态机的状态，并通知上层应用连接的结果。

rfc_mx_sm_execute(RFC_MX_STATE_CONFIGURE)

    case RFC_MX_STATE_CONFIGURE:rfc_mx_sm_state_configure(p_mcb, event, p_data);break;

rfc_mx_sm_state_configure

/********************************************************************************* Function         rfc_mx_sm_state_configure** Description      This function handles events when the multiplexer in the*                  configuration state.** Returns          void*******************************************************************************/
void rfc_mx_sm_state_configure(tRFC_MCB* p_mcb, tRFC_MX_EVENT event,void* p_data) {log::verbose("event {}", event);switch (event) {case RFC_MX_EVENT_START_REQ:case RFC_MX_EVENT_CONN_CNF:log::error("Mx error state {} event {}", p_mcb->state, event);return;...default:log::error("Received unexpected event:{} in state:{}", event,p_mcb->state);}log::verbose("RFCOMM MX ignored - evt:{} in state:{}", event, p_mcb->state);
}

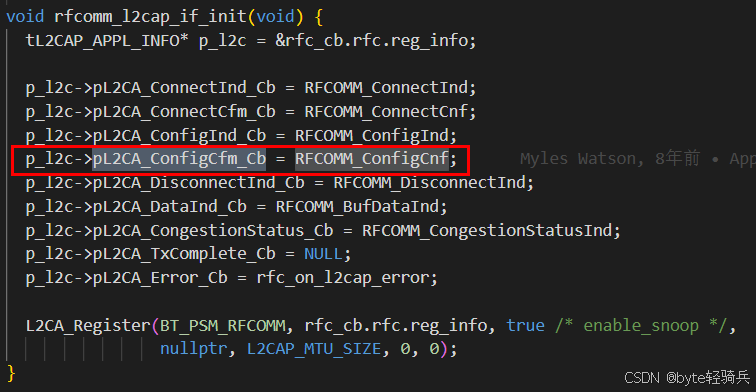

RFCOMM_ConfigCnf

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_l2cap_if.cc
/********************************************************************************* Function         RFCOMM_ConfigCnf** Description      This is a callback function called by L2CAP when*                  L2CA_ConfigCnf received.  Save L2CAP handle and dispatch*                  event to the FSM.*******************************************************************************/
void RFCOMM_ConfigCnf(uint16_t lcid, UNUSED_ATTR uint16_t initiator,tL2CAP_CFG_INFO* p_cfg) {RFCOMM_ConfigInd(lcid, p_cfg);tRFC_MCB* p_mcb = rfc_find_lcid_mcb(lcid);if (!p_mcb) {log::error("RFCOMM_ConfigCnf no MCB LCID:0x{:x}", lcid);return;}uintptr_t result_as_ptr = L2CAP_CFG_OK;rfc_mx_sm_execute(p_mcb, RFC_MX_EVENT_CONF_CNF, (void*)result_as_ptr);
}

L2CAP配置确认（Configuration Confirmation）的回调函数。当L2CAP层接收到配置确认（L2CA_ConfigCnf）时，这个函数会被调用。主要作用是保存L2CAP的句柄（handle），并将事件分发给有限状态机（FSM，Finite State Machine）。

RFCOMM_ConfigInd

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_l2cap_if.cc
/********************************************************************************* Function         RFCOMM_ConfigInd** Description      This is a callback function called by L2CAP when*                  L2CA_ConfigInd received.  Save parameters in the control*                  block and dispatch event to the FSM.*******************************************************************************/
void RFCOMM_ConfigInd(uint16_t lcid, tL2CAP_CFG_INFO* p_cfg) {if (p_cfg == nullptr) {log::error("Received l2cap configuration info with nullptr");return;}// 查找与给定lcid相关联的RFCOMM控制块（MCB，Management Control Block）// MCB是用于存储RFCOMM连接状态和控制信息的结构体tRFC_MCB* p_mcb = rfc_find_lcid_mcb(lcid);if (!p_mcb) {log::error("RFCOMM_ConfigInd LCID:0x{:x}", lcid);for (auto& [cid, mcb] : rfc_lcid_mcb) {if (mcb != nullptr && mcb->pending_lcid == lcid) {tL2CAP_CFG_INFO l2cap_cfg_info(*p_cfg);mcb->pending_configure_complete = true; // 有一个待处理的配置完成事件mcb->pending_cfg_info = l2cap_cfg_info;return;}}return;}rfc_mx_sm_execute(p_mcb, RFC_MX_EVENT_CONF_IND, (void*)p_cfg);
}

RFCOMM协议栈中用于处理L2CAP配置指示（Configuration Indication）的回调函数。当L2CAP层接收到一个配置指示时，这个函数会被调用，以处理该指示并采取相应的动作。

rfc_mx_sm_execute(RFC_MX_EVENT_CONF_IND)

    case RFC_MX_STATE_CONFIGURE:rfc_mx_sm_state_configure(p_mcb, event, p_data);break;

rfc_mx_sm_state_configure

    case RFC_MX_EVENT_CONF_IND:rfc_mx_conf_ind(p_mcb, (tL2CAP_CFG_INFO*)p_data);return;

rfc_mx_conf_ind

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_conf_ind** Description      This function handles L2CA_ConfigInd message from the*                  L2CAP.  Send the L2CA_ConfigRsp message.*******************************************************************************/
static void rfc_mx_conf_ind(tRFC_MCB* p_mcb, tL2CAP_CFG_INFO* p_cfg) {/* Save peer L2CAP MTU if present *//* RFCOMM adds 3-4 bytes in the beginning and 1 bytes FCS */if (p_cfg->mtu_present) {p_mcb->peer_l2cap_mtu = p_cfg->mtu - RFCOMM_MIN_OFFSET - 1;} else {p_mcb->peer_l2cap_mtu = L2CAP_DEFAULT_MTU - RFCOMM_MIN_OFFSET - 1;}
}

处理从 L2CAP 层接收到的配置指示（L2CA_ConfigInd）消息。根据 L2CAP 配置信息更新 RFCOMM 管理控制块（MCB）中的相关字段。

rfc_mx_sm_execute(RFC_MX_EVENT_CONF_CNF)

    case RFC_MX_STATE_CONFIGURE:rfc_mx_sm_state_configure(p_mcb, event, p_data);break;

rfc_mx_sm_state_configure

packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cccase RFC_MX_EVENT_CONF_CNF:rfc_mx_conf_cnf(p_mcb, (uintptr_t)p_data);return;

蓝牙RFCOMM（Radio FrequencyCOMMunication）模块负责处理L2CAP配置确认消息。RFCOMM是一种用于串行端口仿真的蓝牙协议，允许设备通过蓝牙连接模拟RS-232串口通信。

rfc_mx_conf_cnf

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_conf_cnf** Description      This function handles L2CA_ConfigCnf message from the*                  L2CAP.  If result is not success tell upper layer that*                  start has not been accepted.  If initiator send SABME*                  on DLCI 0.  T1 is still running.*******************************************************************************/
static void rfc_mx_conf_cnf(tRFC_MCB* p_mcb, uint16_t result) {if (p_mcb->state == RFC_MX_STATE_CONFIGURE) { // 是否处于配置状态if (p_mcb->is_initiator) {p_mcb->state = RFC_MX_STATE_SABME_WAIT_UA;rfc_send_sabme(p_mcb, RFCOMM_MX_DLCI);rfc_timer_start(p_mcb, RFC_T1_TIMEOUT);} else {p_mcb->state = RFC_MX_STATE_WAIT_SABME;rfc_timer_start(p_mcb, RFCOMM_CONN_TIMEOUT); /* - increased from T2=20 to CONN=120to allow the user more than 10 sec to type in thepin which can be e.g. 16 digits */}}
}

处理从L2CAP层接收到的配置确认（L2CA_ConfigCnf）消息。根据配置的结果，相应地通知上层应用或者发起下一步的SABME（Set Asynchronous Balanced Mode Extended）帧的发送。

如果是发起者，将MCB的状态更新为RFC_MX_STATE_SABME_WAIT_UA，表示正在等待对方设备对SABME帧的确认（UA，Unnumbered Acknowledgement）。然后，通过rfc_send_sabme函数在DLCI（Data Link Connection Identifier，数据链路连接标识符）0上发送SABME帧，并通过rfc_timer_start函数启动T1定时器，等待对方的响应。

rfc_send_sabme

packages/modules/Bluetooth/system/stack/rfcomm/rfc_ts_frames.cc
/********************************************************************************* Function         rfc_send_sabme** Description      This function sends SABME frame.*******************************************************************************/
void rfc_send_sabme(tRFC_MCB* p_mcb, uint8_t dlci) {uint8_t* p_data;uint8_t cr = RFCOMM_CR(p_mcb->is_initiator, true);BT_HDR* p_buf = (BT_HDR*)osi_malloc(RFCOMM_CMD_BUF_SIZE);p_buf->offset = L2CAP_MIN_OFFSET; // L2CAP层要求的最小偏移量p_data = (uint8_t*)(p_buf + 1) + L2CAP_MIN_OFFSET; // 数据指针初始化/* SABME frame, command, PF = 1, dlci */*p_data++ = RFCOMM_EA | cr | (dlci << RFCOMM_SHIFT_DLCI);*p_data++ = RFCOMM_SABME | RFCOMM_PF;*p_data++ = RFCOMM_EA | 0;*p_data =RFCOMM_SABME_FCS((uint8_t*)(p_buf + 1) + L2CAP_MIN_OFFSET, cr, dlci);p_buf->len = 4; // 表示SABME帧的长度（包括地址、控制、信息和FCS字段）rfc_check_send_cmd(p_mcb, p_buf); // 发送命令
}

发送SABME帧。SABME帧在RFCOMM协议中用于初始化连接或重新初始化一个已经存在的连接。

构建SABME帧：

• 第一个字节包含了EA（End of Address field，地址字段结束标志）、CR（Command/Response，命令/响应位）和DLCI（左移RFCOMM_SHIFT_DLCI位）。EA位设置为1表示地址字段结束，CR位根据p_mcb->is_initiator的值设置（如果是发起者则设置为1），DLCI是数据链路连接标识符。

• 第二个字节是控制字段，包含了SABME命令和PF（Poll Final，轮询最终位）位。PF位设置为1表示这是最后一个要发送的帧。

• 第三个字节是信息字段的开始，只包含一个EA位（设置为1表示信息字段结束），没有实际的信息数据。

• 第四个字节是FCS（Frame Check Sequence，帧校验序列），用于确保帧的完整性。RFCOMM_SABME_FCS函数根据前面的数据计算FCS值。

rfc_check_send_cmd

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_utils.cc
/********************************************************************************* Function         rfc_check_send_cmd** Description      This function is called to send an RFCOMM command message*                  or to handle the RFCOMM command message queue.** Returns          void*******************************************************************************/
void rfc_check_send_cmd(tRFC_MCB* p_mcb, BT_HDR* p_buf) {/* if passed a buffer queue it */if (p_buf != NULL) { // 表示有一个新的RFCOMM命令消息需要发送if (p_mcb->cmd_q == NULL) {log::error("empty queue: p_mcb = {} p_mcb->lcid = {} cached p_mcb = {}",fmt::ptr(p_mcb), p_mcb->lcid,fmt::ptr(rfc_find_lcid_mcb(p_mcb->lcid)));}fixed_queue_enqueue(p_mcb->cmd_q, p_buf);}/* handle queue if L2CAP not congested */// 当L2CAP层不拥塞时（p_mcb->l2cap_congested为false），尝试从命令队列中取出消息并发送while (!p_mcb->l2cap_congested) {BT_HDR* p = (BT_HDR*)fixed_queue_try_dequeue(p_mcb->cmd_q);if (p == NULL) break;L2CA_DataWrite(p_mcb->lcid, p); // 通过L2CAP层发送该消息}
}

发送RFCOMM命令消息或处理RFCOMM命令消息队列。RFCOMM层能够管理其命令消息的发送。当有新消息需要发送时，会被加入队列。然后，检查L2CAP层的拥塞状态，如果不拥塞，尝试从队列中取出消息并通过L2CAP层发送。这种机制确保了RFCOMM层能够有序地发送命令消息，同时避免了在L2CAP层拥塞时发送过多消息导致的问题。

L2CA_DataWrite流程单独分析。

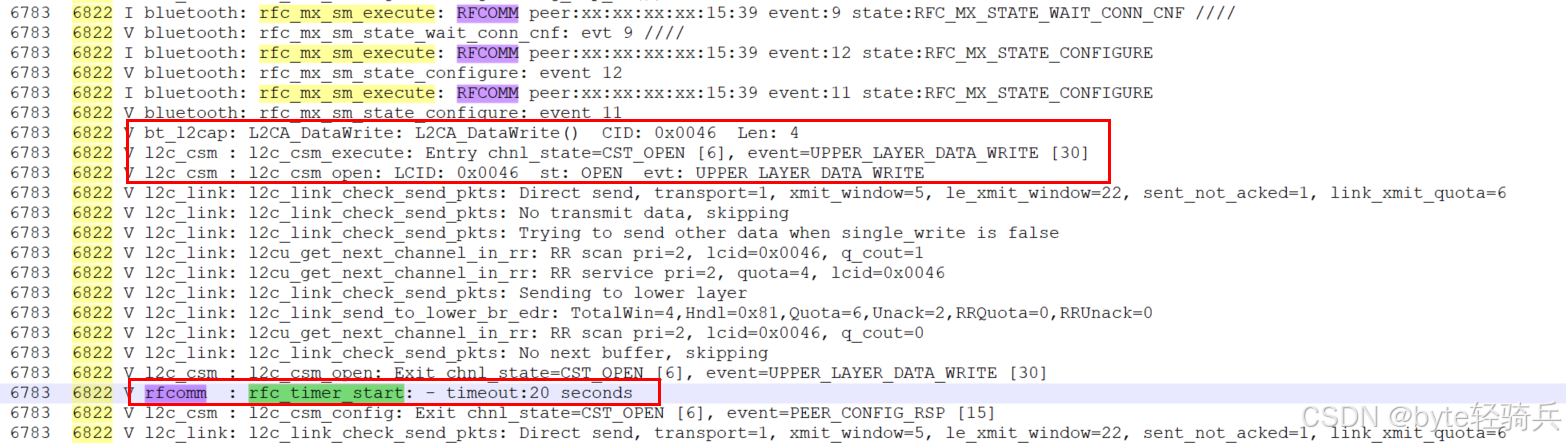

rfc_timer_start

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_utils.cc
/********************************************************************************* Function         rfc_timer_start** Description      Start RFC Timer*******************************************************************************/
void rfc_timer_start(tRFC_MCB* p_mcb, uint16_t timeout) {log::verbose("- timeout:{} seconds", timeout);uint64_t interval_ms = timeout * 1000;alarm_set_on_mloop(p_mcb->mcb_timer, interval_ms, rfcomm_mcb_timer_timeout,p_mcb);
}

启动 RFCOMM协议栈中的定时器。该定时器在指定的超时时间（20s）后触发回调函数rfcomm_mcb_timer_timeout。这种机制通常用于实现超时重传、状态机转换等需要定时控制的功能。

RFCOMM协议是在蓝牙技术中用于串口仿真的一种协议，它基于GSM 07.10标准但有所简化并增加了特定的扩展。RFCOMM协议允许在两个蓝牙设备之间建立多达60个连接，这些连接用于模拟传统的串口通信。下面直接看RFCOMM Connect（连接机制）与RFCOMM UA（Unnumbered Acknowledgement，未编号确认）Frame（帧） snoop log：

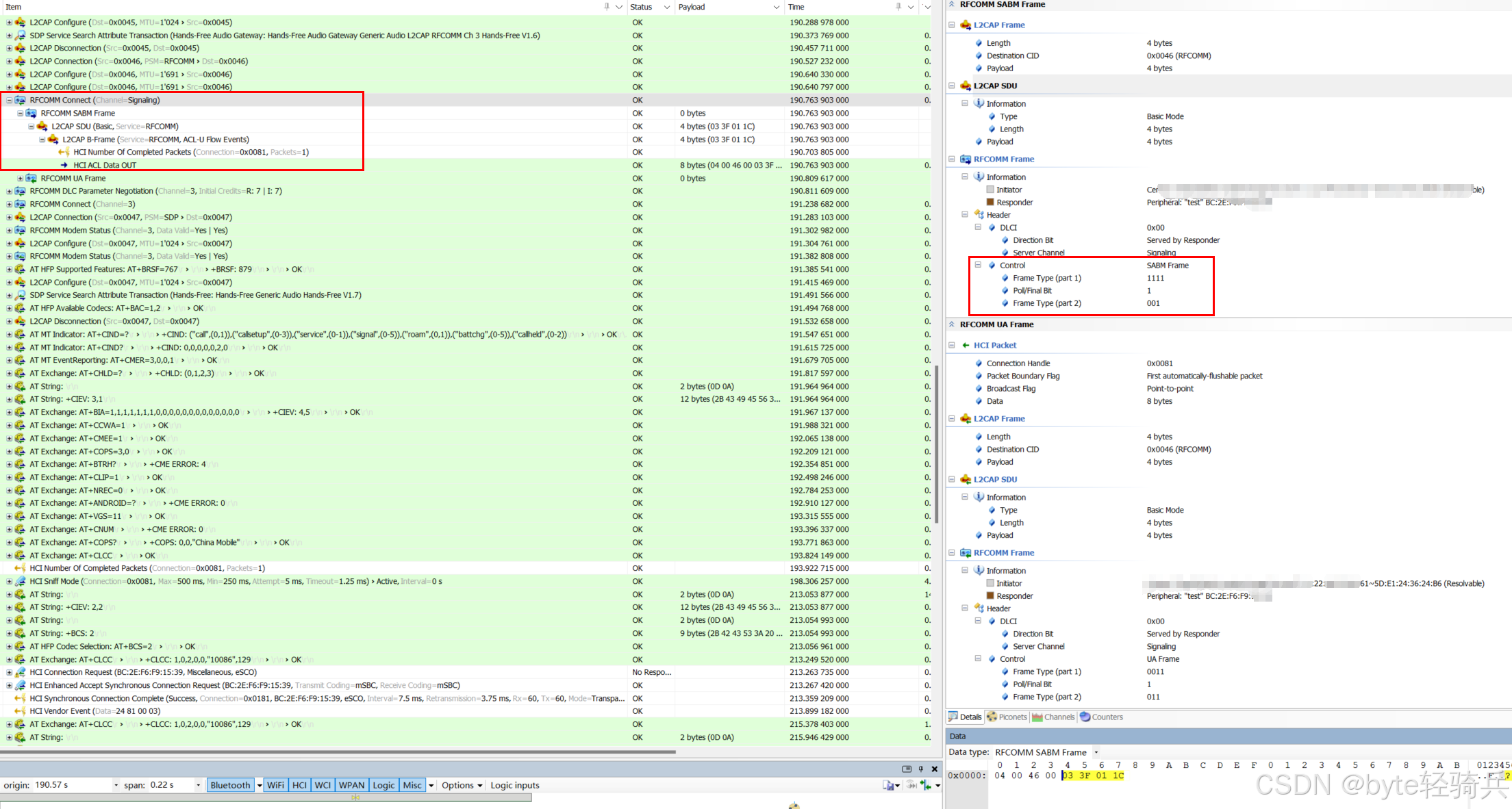

RFCOMM Connect

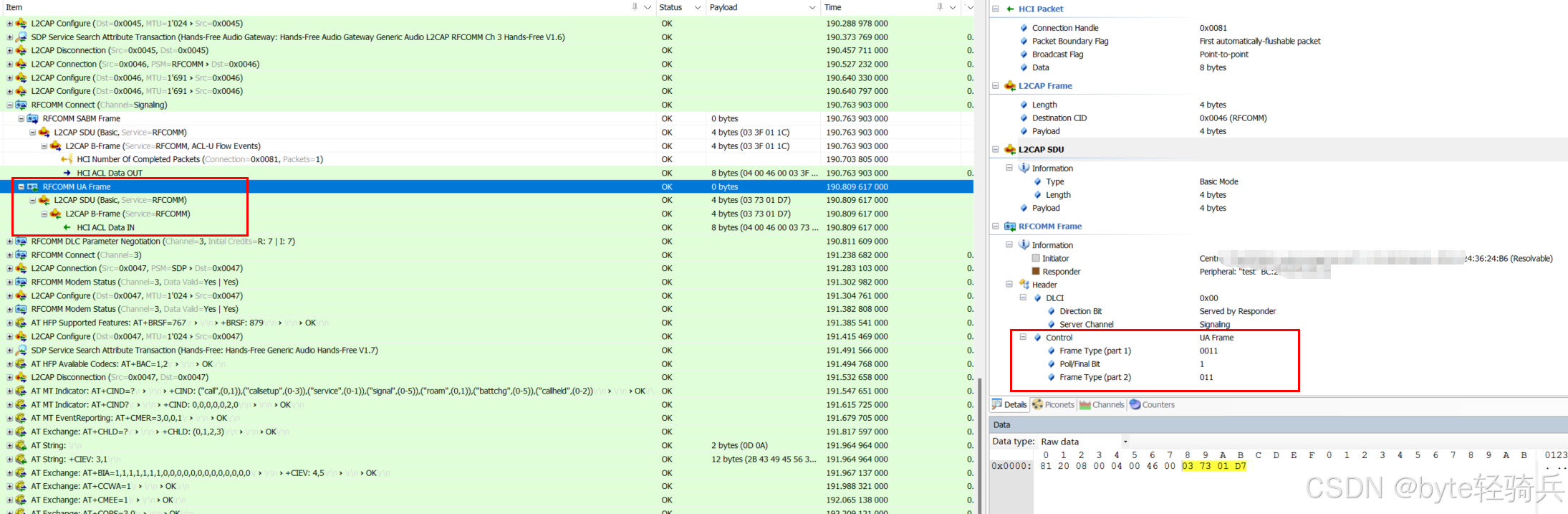

RFCOMM UA Frame

• 状态转换：完成配置协商后，相关的蓝牙协议栈状态机进行状态转换，宣告 RFCOMM 链路正式建立。此时，设备两端的 RFCOMM 层进入就绪状态，可以开始模拟串口通信。

• 数据传输准备：链路建立好后，通信双方就可以按照串口通信的模式准备传输数据，例如音频流、文本消息等不同类型的数据，后续的数据传输都基于这条已建立的 RFCOMM 链路。

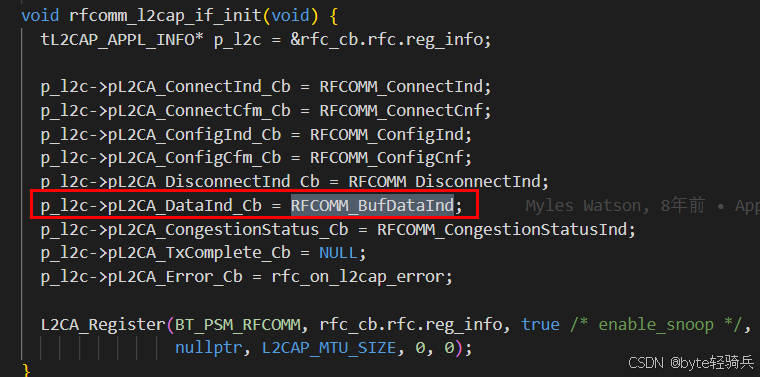

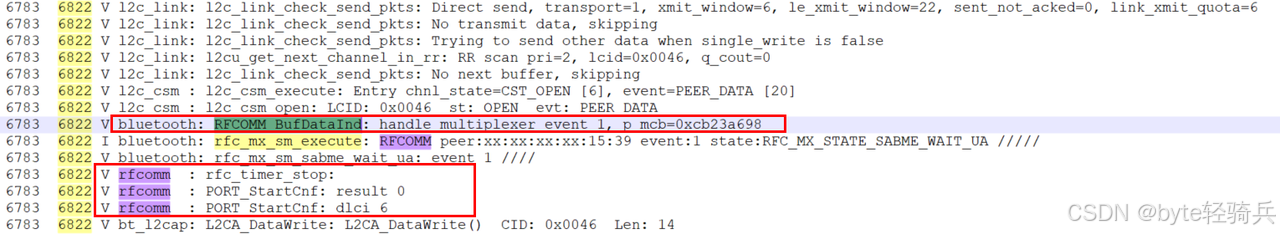

RFCOMM_BufDataInd

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_l2cap_if.cc
/********************************************************************************* Function         RFCOMM_BufDataInd** Description      This is a callback function called by L2CAP when*                  data RFCOMM frame is received.  Parse the frames, check*                  the checksum and dispatch event to multiplexer or port*                  state machine depending on the frame destination.*******************************************************************************/
void RFCOMM_BufDataInd(uint16_t lcid, BT_HDR* p_buf) {tRFC_MCB* p_mcb = rfc_find_lcid_mcb(lcid); // 查找复用器控制块if (!p_mcb) {log::warn("Cannot find RFCOMM multiplexer for lcid {}", loghex(lcid));osi_free(p_buf);return;}tRFC_EVENT event = rfc_parse_data(p_mcb, &rfc_cb.rfc.rx_frame, p_buf); // 解析数据帧/* If the frame did not pass validation just ignore it */if (event == RFC_EVENT_BAD_FRAME) { // 帧未通过验证log::warn("Bad RFCOMM frame from lcid={}, bd_addr={}, p_mcb={}",loghex(lcid), ADDRESS_TO_LOGGABLE_STR(p_mcb->bd_addr),fmt::ptr(p_mcb));osi_free(p_buf);return;}if (rfc_cb.rfc.rx_frame.dlci == RFCOMM_MX_DLCI) { // 发送给复用器的log::verbose("handle multiplexer event {}, p_mcb={}", event,fmt::ptr(p_mcb));/* Take special care of the Multiplexer Control Messages */if (event == RFC_EVENT_UIH) {rfc_process_mx_message(p_mcb, p_buf);return;}/* Other multiplexer events go to state machine */rfc_mx_sm_execute(p_mcb, static_cast<tRFC_MX_EVENT>(event), nullptr);osi_free(p_buf);return;}/* The frame was received on the data channel DLCI, verify that DLC exists */tPORT* p_port = port_find_mcb_dlci_port(p_mcb, rfc_cb.rfc.rx_frame.dlci); // 数据通道帧处理if (p_port == nullptr || !p_port->rfc.p_mcb) {/* If this is a SABME on new port, check if any app is waiting for it */if (event != RFC_EVENT_SABME) {log::warn("no for none-SABME event, lcid={}, bd_addr={}, p_mcb={}",loghex(lcid), ADDRESS_TO_LOGGABLE_STR(p_mcb->bd_addr),fmt::ptr(p_mcb));if ((p_mcb->is_initiator && !rfc_cb.rfc.rx_frame.cr) ||(!p_mcb->is_initiator && rfc_cb.rfc.rx_frame.cr)) {log::error("Disconnecting RFCOMM, lcid={}, bd_addr={}, p_mcb={}",loghex(lcid), ADDRESS_TO_LOGGABLE_STR(p_mcb->bd_addr),fmt::ptr(p_mcb));rfc_send_dm(p_mcb, rfc_cb.rfc.rx_frame.dlci, rfc_cb.rfc.rx_frame.pf);}osi_free(p_buf);return;}p_port = port_find_dlci_port(rfc_cb.rfc.rx_frame.dlci);if (p_port == nullptr) {log::error("Disconnecting RFCOMM, no port for dlci {}, lcid={}, bd_addr={}, ""p_mcb={}",rfc_cb.rfc.rx_frame.dlci, loghex(lcid),ADDRESS_TO_LOGGABLE_STR(p_mcb->bd_addr), fmt::ptr(p_mcb));rfc_send_dm(p_mcb, rfc_cb.rfc.rx_frame.dlci, true);osi_free(p_buf);return;}log::verbose("port_handles[dlci={}]:{}->{}, p_mcb={}",rfc_cb.rfc.rx_frame.dlci,p_mcb->port_handles[rfc_cb.rfc.rx_frame.dlci], p_port->handle,fmt::ptr(p_mcb));p_mcb->port_handles[rfc_cb.rfc.rx_frame.dlci] = p_port->handle;p_port->rfc.p_mcb = p_mcb;}if (event == RFC_EVENT_UIH) {log::verbose("Handling UIH event, buf_len={}, credit={}", p_buf->len,rfc_cb.rfc.rx_frame.credit);if (p_buf->len > 0) {rfc_port_sm_execute(p_port, static_cast<tRFC_PORT_EVENT>(event), p_buf);} else {osi_free(p_buf);}if (rfc_cb.rfc.rx_frame.credit != 0) {rfc_inc_credit(p_port, rfc_cb.rfc.rx_frame.credit);}return;}rfc_port_sm_execute(p_port, static_cast<tRFC_PORT_EVENT>(event), nullptr);osi_free(p_buf);
}

负责处理从L2CAP层接收到的RFCOMM数据帧，解析这些帧，检查校验和，并根据帧的目的地将事件分发到复用器或端口状态机。支持RFCOMM连接的建立、维护和断开，以及数据的可靠传输。

rfc_parse_data

/packages/modules/Bluetooth/system/stack/rfcomm/rfc_ts_frames.cc
/********************************************************************************* Function         rfc_parse_data** Description      This function processes data packet received from L2CAP*******************************************************************************/
tRFC_EVENT rfc_parse_data(tRFC_MCB* p_mcb, MX_FRAME* p_frame, BT_HDR* p_buf) {uint8_t ead, eal, fcs;uint8_t* p_data = (uint8_t*)(p_buf + 1) + p_buf->offset;uint8_t* p_start = p_data;uint16_t len;if (p_buf->len < RFCOMM_CTRL_FRAME_LEN) {log::error("Bad Length1: {}", p_buf->len);return (RFC_EVENT_BAD_FRAME);}RFCOMM_PARSE_CTRL_FIELD(ead, p_frame->cr, p_frame->dlci, p_data);if (!ead) {log::error("Bad Address(EA must be 1)");return (RFC_EVENT_BAD_FRAME);}RFCOMM_PARSE_TYPE_FIELD(p_frame->type, p_frame->pf, p_data);// 解析控制字段，包括地址（EAD）、命令/响应位（CR）、数据链路连接标识符（DLCI）和指针（p_data）的移动// 如果EAD不为1，则记录错误并返回RFC_EVENT_BAD_FRAME。eal = *(p_data)&RFCOMM_EA;len = *(p_data)++ >> RFCOMM_SHIFT_LENGTH1;if (eal == 0 && p_buf->len > RFCOMM_CTRL_FRAME_LEN) {len += (*(p_data)++ << RFCOMM_SHIFT_LENGTH2);} else if (eal == 0) {log::error("Bad Length when EAL = 0: {}", p_buf->len);return RFC_EVENT_BAD_FRAME;}if (p_buf->len < (3 + !ead + !eal + 1)) {log::error("Bad Length: {}", p_buf->len);return RFC_EVENT_BAD_FRAME;}p_buf->len -= (3 + !ead + !eal + 1); /* Additional 1 for FCS */p_buf->offset += (3 + !ead + !eal);/* handle credit if credit based flow control */if ((p_mcb->flow == PORT_FC_CREDIT) && (p_frame->type == RFCOMM_UIH) &&(p_frame->dlci != RFCOMM_MX_DLCI) && (p_frame->pf == 1)) {if (p_buf->len < sizeof(uint8_t)) {log::error("Bad Length in flow control: {}", p_buf->len);return RFC_EVENT_BAD_FRAME;}p_frame->credit = *p_data++;p_buf->len--;p_buf->offset++;} else {p_frame->credit = 0;}if (p_buf->len != len) {log::error("Bad Length2 {} {}", p_buf->len, len);return (RFC_EVENT_BAD_FRAME);}fcs = *(p_data + len);/* All control frames that we are sending are sent with P=1, expect *//* reply with F=1 *//* According to TS 07.10 spec ivalid frames are discarded without *//* notification to the sender */switch (p_frame->type) {case RFCOMM_SABME:if (RFCOMM_FRAME_IS_RSP(p_mcb->is_initiator, p_frame->cr) ||!p_frame->pf || len || !RFCOMM_VALID_DLCI(p_frame->dlci) ||!rfc_check_fcs(RFCOMM_CTRL_FRAME_LEN, p_start, fcs)) {log::error("Bad SABME");return (RFC_EVENT_BAD_FRAME);} elsereturn (RFC_EVENT_SABME);case RFCOMM_UA:if (RFCOMM_FRAME_IS_CMD(p_mcb->is_initiator, p_frame->cr) ||!p_frame->pf || len || !RFCOMM_VALID_DLCI(p_frame->dlci) ||!rfc_check_fcs(RFCOMM_CTRL_FRAME_LEN, p_start, fcs)) {log::error("Bad UA");return (RFC_EVENT_BAD_FRAME);} elsereturn (RFC_EVENT_UA);case RFCOMM_DM:if (RFCOMM_FRAME_IS_CMD(p_mcb->is_initiator, p_frame->cr) || len ||!RFCOMM_VALID_DLCI(p_frame->dlci) ||!rfc_check_fcs(RFCOMM_CTRL_FRAME_LEN, p_start, fcs)) {log::error("Bad DM");return (RFC_EVENT_BAD_FRAME);} elsereturn (RFC_EVENT_DM);case RFCOMM_DISC:if (RFCOMM_FRAME_IS_RSP(p_mcb->is_initiator, p_frame->cr) ||!p_frame->pf || len || !RFCOMM_VALID_DLCI(p_frame->dlci) ||!rfc_check_fcs(RFCOMM_CTRL_FRAME_LEN, p_start, fcs)) {log::error("Bad DISC");return (RFC_EVENT_BAD_FRAME);} elsereturn (RFC_EVENT_DISC);case RFCOMM_UIH:if (!RFCOMM_VALID_DLCI(p_frame->dlci)) {log::error("Bad UIH - invalid DLCI");return (RFC_EVENT_BAD_FRAME);} else if (!rfc_check_fcs(2, p_start, fcs)) {log::error("Bad UIH - FCS");return (RFC_EVENT_BAD_FRAME);} else if (RFCOMM_FRAME_IS_RSP(p_mcb->is_initiator, p_frame->cr)) {/* we assume that this is ok to allow bad implementations to work */log::error("Bad UIH - response");return (RFC_EVENT_UIH);} else {return (RFC_EVENT_UIH);}}return (RFC_EVENT_BAD_FRAME);
}

解析从L2CAP层接收到的数据包。

rfc_mx_sm_execute(RFC_EVENT_UA)

    case RFC_MX_STATE_SABME_WAIT_UA:rfc_mx_sm_sabme_wait_ua(p_mcb, event, p_data);break;

rfc_mx_sm_sabme_wait_ua

packages/modules/Bluetooth/system/stack/rfcomm/rfc_mx_fsm.cc
/********************************************************************************* Function         rfc_mx_sm_sabme_wait_ua** Description      This function handles events when the multiplexer sent*                  SABME and is waiting for UA reply.** Returns          void*******************************************************************************/
void rfc_mx_sm_sabme_wait_ua(tRFC_MCB* p_mcb, tRFC_MX_EVENT event,UNUSED_ATTR void* p_data) {log::verbose("event {}", event);switch (event) {...case RFC_MX_EVENT_UA: // 表示收到了对方的UA帧回复rfc_timer_stop(p_mcb); // 停止之前可能启动的计时器p_mcb->state = RFC_MX_STATE_CONNECTED;p_mcb->peer_ready = true; // 表示对方已经准备好PORT_StartCnf(p_mcb, RFCOMM_SUCCESS); // 通知上层应用连接成功return;...default:log::error("Received unexpected event:{} in state:{}", event,p_mcb->state);}log::verbose("RFCOMM MX ignored - evt:{} in state:{}", event, p_mcb->state);
}

RFCOMM协议栈中负责处理多路复用器（Multiplexer）状态机的部分。处理在发送SABME帧后等待对方回复UA帧的事件。

PORT_StartCnf

/packages/modules/Bluetooth/system/stack/rfcomm/port_rfc.cc
/********************************************************************************* Function         PORT_StartCnf** Description      This function is called from the RFCOMM layer when*                  establishing of the multiplexer channel is completed.*                  Continue establishing of the connection for all ports that*                  are in the OPENING state*******************************************************************************/
void PORT_StartCnf(tRFC_MCB* p_mcb, uint16_t result) {bool no_ports_up = true;log::verbose("result {}", result);tPORT* p_port = &rfc_cb.port.port[0];for (int i = 0; i < MAX_RFC_PORTS; i++, p_port++) {if (p_port->rfc.p_mcb == p_mcb) {no_ports_up = false; // 表示至少有一个端口与当前的多路复用器关联if (result == RFCOMM_SUCCESS) {log::verbose("dlci {}", p_port->dlci);RFCOMM_ParameterNegotiationRequest(p_mcb, p_port->dlci, p_port->mtu); // 进行参数协商} else {log::warn("failed result:{}", result);/* Warning: result is also set to 4 when l2cap connectionfails due to l2cap connect cnf (no_resources) */if (result == HCI_ERR_PAGE_TIMEOUT) {p_port->error = PORT_PAGE_TIMEOUT;} else {p_port->error = PORT_START_FAILED;}rfc_release_multiplexer_channel(p_mcb);/* Send event to the application */if (p_port->p_callback && (p_port->ev_mask & PORT_EV_CONNECT_ERR)) {(p_port->p_callback)(PORT_EV_CONNECT_ERR, p_port->handle);}if (p_port->p_mgmt_callback) {p_port->p_mgmt_callback(PORT_START_FAILED, p_port->handle);log_counter_metrics(android::bluetooth::CodePathCounterKeyEnum::RFCOMM_PORT_START_CNF_FAILED,1);}port_release_port(p_port);}}}/* There can be a situation when after starting connection, user closes the *//* port, we can catch it here to close multiplexor channel */if (no_ports_up) {rfc_check_mcb_active(p_mcb);}
}

在RFCOMM层的多路复用器通道建立完成后，继续为所有处于OPENING状态的端口建立连接。

关键字

RFCOMM_CreateConnectionWithSecurity|port_open_continue|RFC_MX_STATE_IDLE|PEER_CONNECT_RSP|L2CA_ConnectReq|l2c_csm_w4_l2cap_connect_rsp|l2c_fcr_process_peer_cfg_req|PEER_CONFIG_REQ|L2CAP_CMD_CONFIG_RSP|PEER_CONFIG_RSP|l2c_csm_config|rfc_mx_sm_state_wait_conn_cnf|RFC_MX_STATE_WAIT_CONN_CNF|rfc_mx_sm_state_configure|RFC_MX_STATE_CONFIGURE
