vue3+ts+element-plus 开发一个页面模块的详细过程

目录、文件名均使用kebab-case（短横线分隔式）命名规范

子组件目录：./progress-ctrl/comps

1、新建页面文件 progress-ctrl.vue

<script setup lang="ts" name="progress-ctrl"></script><template></template><style scoped lang="scss"></style>

运行效果：

2、 页面布局

<script setup lang="ts" name="progress-ctrl"></script><template><el-container class="layout-container"><el-aside class="aside"><!-- 左侧受理类别节点树 -->受理类别节点树</el-aside><el-container class="container"><el-header class="header"><!-- 查询栏 -->查询栏</el-header><el-main class="main"><!-- main -->主项数据区域</el-main><el-footer class="footer"><!-- 选项卡 -->选项卡<!-- 分页 -->分页</el-footer></el-container></el-container>
</template><style scoped lang="scss">
* {margin: 0;padding: 0;
}
.layout-container {height: 100%;border: 1px solid #ddd;.aside {width: 150px;}.container {border-left: 1px solid #ddd;.header {height: auto;min-height: 40px;border-bottom: 1px solid #ddd;}.main {min-height: 100px;}.footer {height: auto;min-height: 40px;border-top: 1px solid #ddd;}}
}
</style>

运行效果：

3、新建子组件

3.1、左侧树子组件

./progress-ctrl/comps/progress-ctrl-tree.vue

<script setup lang="ts" name="progress-ctrl-tree"></script><template><div class="tree"><el-scrollbar><el-tree:default-expand-all="true":highlight-current="true":expand-on-click-node="false":indent="0"></el-tree></el-scrollbar></div>
</template><style scoped lang="scss"></style>

3.2、查询栏子组件

./progress-ctrl/comps/progress-ctrl-search.vue

<script setup lang="ts" name="progress-ctrl-search"></script><template><div class="search"><el-form class="header-form" :inline="true" :label-width="90"><el-form-item class="header-form-item-330" label="受理编号："><el-input clearable /></el-form-item><el-form-item class="header-form-item-auto"><el-button class="btn-same-width" type="primary" plain @click="">查询</el-button><el-button class="btn-same-width" type="primary" plain @click="">重置</el-button><el-button class="btn-same-width" type="primary" plain @click="">更多筛选</el-button></el-form-item></el-form><el-form class="header-form" :inline="true" :label-width="90" v-show=""><el-form-item class="header-form-item-330" label="受理日期："><el-date-pickertype="daterange"start-placeholder="开始日期"range-separator="至"end-placeholder="结束日期"format="YYYY-MM-DD"value-format="YYYY-MM-DD"></el-date-picker></el-form-item><el-form-item class="header-form-item-330" label="受检单位："><el-input clearable /></el-form-item></el-form></div>
</template><style scoped lang="scss"></style>

3.3、main子组件

./progress-ctrl/comps/progress-ctrl-main.vue

<script setup lang="ts" name="progress-ctrl-main"></script><template><div class="main"><el-tableref="table":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="outerApplyId"label="受理编号"width="120"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="stateDescription"label="状态"width="150"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptDate"label="受理日期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="reportDate"label="报告限期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="verifyTypeName"label="检验类别"width="120"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptTypeName"label="受理类别"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptGroupName"label="受理组别"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="sjdwName"label="受检单位"width="300"header-align="center"sortableshow-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

3.4、选项卡子组件

./progress-ctrl/comps/progress-ctrl-tabs.vue

<script setup lang="ts" name="progress-ctrl-tabs"></script><template><div class="tabs"><el-tabs type="border-card" @tab-click=""><el-tab-pane label="受理信息" name="apply"></el-tab-pane><el-tab-pane label="交接信息" name="jjd"></el-tab-pane><el-tab-pane label="检测信息" name="test"></el-tab-pane><el-tab-pane label="报告信息" name="report"></el-tab-pane></el-tabs></div>
</template><style scoped lang="scss"></style>

3.5、分页子组件

./progress-ctrl/comps/progress-ctrl-pagination.vue

<script setup lang="ts" name="progress-ctrl-pagination"></script><template><div class="pagination"><el-pagination:page-sizes="[5]"backgroundlayout="total, prev, pager, next":small="true" /></div>
</template><style scoped lang="scss"></style>

4、新建选项卡组件的子组件

4.1、apply子组件

./progress-ctrl/comps/progress-ctrl-tabs-apply.vue

<script setup lang="ts" name="progress-ctrl-tabs-apply"></script><template><div class="tabs-apply"><el-tableref="applyTable":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="applyId"label="子受理编号"width="120"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptDate"label="受理日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="acceptSmallTypeName"label="受理小类"width="150"header-align="center"show-overflow-tooltip /><el-table-column prop="sampleKind" label="检材类别" width="150" header-align="center" show-overflow-tooltip /><el-table-columnprop="keepCondition"label="描述信息"width="150"header-align="center"show-overflow-tooltip /><el-table-columnprop="acceptPersonName"label="受理人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

4.2、jjd子组件

 ./progress-ctrl/comps/progress-ctrl-tabs-jjd.vue

<script setup lang="ts" name="progress-ctrl-tabs-jjd"></script><template><div class="tabs-jjd"><el-tableref="jjdTable":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="blPersonName"label="派样人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-column prop="submitTime" label="派样时间" width="200" header-align="center" show-overflow-tooltip /><el-table-columnprop="checkGroupName"label="检验组别"width="150"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="receivePersonName"label="接样人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="receiveTime"label="接样时间"width="200"header-align="center"show-overflow-tooltip /><el-table-columnprop="deadlineTime"label="交接限期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

 4.3、test子组件

 ./progress-ctrl/comps/progress-ctrl-tabs-test.vue

<script setup lang="ts" name="progress-ctrl-tabs-test"></script><template><div class="tabs-test"><el-tableref="sampleItemResultTable":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="sampleNo"label="样品编号"width="120"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-columnprop="sampleName"label="样品名称"width="150"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-columnprop="itemName"label="检验项目"width="150"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-columnprop="result"label="结果"width="120"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="conclusion"label="结论"width="80"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="standardScript"label="标准值"width="120"header-align="center"sortableshow-overflow-tooltip /><el-table-column prop="unit" label="单位" width="100" header-align="center" sortable show-overflow-tooltip /><el-table-columnprop="ffbzId"label="检测标准编号"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="ffbzName"label="检测标准名称"width="300"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="verifyMethod"label="检验方法"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="person"label="检验员"width="100"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="allotTime"label="分派时间"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="submitTime"label="检测时间"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="deadlineDate"label="检测限期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

4.4、report子组件

  ./progress-ctrl/comps/progress-ctrl-tabs-report.vue

<script setup lang="ts" name="progress-ctrl-tabs-report"></script><template><div class="tabs-report"><el-tableref="reportTable":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="deptName"label="所属部门"width="150"header-align="center"fixed="left"sortableshow-overflow-tooltip /><el-table-columnprop="type"label="类型"width="100"header-align="center":align="`center`"fixed="left"sortableshow-overflow-tooltip:formatter="(row: any) => { return row.type === 1 ? `检验报告` : `评价报告` }" /><el-table-columnprop="reportTypeName"label="报告类型"width="200"header-align="center"fixed="left"sortableshow-overflow-tooltip /><el-table-columnprop="hbPerson"label="编制人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hbDate"label="编制日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hdPerson"label="核对人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hdDate"label="核对日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hfPerson"label="签发人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hfDate"label="签发日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="reportDate"label="报告限期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

5、选项卡子组件导入使用子组件

<script setup lang="ts" name="progress-ctrl-tabs">
import ProgressCtrlTabsApply from './progress-ctrl-tabs-apply.vue';
import ProgressCtrlTabsJJD from './progress-ctrl-tabs-jjd.vue';
import ProgressCtrlTabsTest from './progress-ctrl-tabs-test.vue';
import ProgressCtrlTabsReport from './progress-ctrl-tabs-report.vue';</script><template><div class="tabs"><el-tabs type="border-card" @tab-click=""><el-tab-pane label="受理信息" name="apply"><ProgressCtrlTabsApply /></el-tab-pane><el-tab-pane label="交接信息" name="jjd"><ProgressCtrlTabsJJD /></el-tab-pane><el-tab-pane label="检测信息" name="test"><ProgressCtrlTabsTest /></el-tab-pane><el-tab-pane label="报告信息" name="report"><ProgressCtrlTabsReport /></el-tab-pane></el-tabs></div>
</template><style scoped lang="scss"></style>

6、父组件导入使用子组件

<script setup lang="ts" name="progress-ctrl">
import ProgressCtrlTree from './progress-ctrl/comps/progress-ctrl-tree.vue';
import ProgressCtrlSearch from './progress-ctrl/comps/progress-ctrl-search.vue';
import ProgressCtrlMain from './progress-ctrl/comps/progress-ctrl-main.vue';
import ProgressCtrlTabs from './progress-ctrl/comps/progress-ctrl-tabs.vue';
import ProgressCtrlPagination from './progress-ctrl/comps/progress-ctrl-pagination.vue';</script><template><el-container class="layout-container"><el-aside class="aside"><!-- 左侧受理类别节点树 --><ProgressCtrlTree /></el-aside><el-container class="container"><el-header class="header"><!-- 查询栏 --><ProgressCtrlSearch /></el-header><el-main class="main"><!-- main --><ProgressCtrlMain /></el-main><el-footer class="footer"><!-- 选项卡 --><ProgressCtrlTabs /><!-- 分页 --><ProgressCtrlPagination /></el-footer></el-container></el-container>
</template><style scoped lang="scss">
* {margin: 0;padding: 0;
}
.layout-container {height: 100%;border: 1px solid #ddd;.aside {width: 150px;}.container {border-left: 1px solid #ddd;.header {height: auto;min-height: 40px;border-bottom: 1px solid #ddd;}.main {min-height: 100px;}.footer {height: auto;min-height: 40px;border-top: 1px solid #ddd;}}
}
</style>

运行效果：

7、数据模型业务逻辑处理

7.1、数据定义

import type { Component } from "vue";export interface ITree {// 树节点的label，受理类别名称label: string;// 树节点的value，受理类别代码value: string;// 树节点的图标icon?: Component;// 图标颜色iconColor?: string;// 子节点children?: ITree[];
}// 分页对象
interface IPage {// 当前页码page: number// 每页显示数量                   size: number
}// 查询对象
export interface IQueryObj {// 分页器pageHelper: IPage// 受理编号outerApplyId?: string  // 受检单位        sjdwName?: string  // 受理类别            acceptType?: string  // 受理开始日期          acceptDateBegin?: string      // 受理结束日期 acceptDateEnd?: string
}export interface IApplyBasicInfo {// 受理编号outerApplyId: string// 状态stateDescription: string// 受理日期acceptDate: string// 报告限期reportDate: string// 检验类别verifyTypeName: string// 受理类别acceptTypeName: string// 受理组别acceptGroupName: string// 受检单位sjdwName: string
}// 结构继承使用 extends
// import type { Apply, JJD, SampleItemResult, ReportSimpleVO } from "@/interface";
// export interface IApply extends Apply {
// }
// export interface IJJD extends JJD {
// }
// export interface ITest extends SampleItemResult {
// }
// export interface IReport extends ReportSimpleVO {
// }

7.2、数据处理

import { defineStore } from "pinia";
import { ref } from "vue";
import { acceptTypeOptionsByUserNameService } from "@/api/selectOptions";
import type { IApplyBasicInfo, IQueryObj, ITree } from "../types";
import {applyBasicInfoSjkByQueryDTOService,applyBasicInfoYztByQueryDTOService,applyBasicInfoSjkAllService,applyBasicInfoSjkTodayService,applyBasicInfoSjk3DayService,applyBasicInfoSjkRecentService,applyBasicInfoSjkOverdueService
} from "@/api/applyBasicInfo";
// 使用 as 重命名导出的类型
import type { Apply as IApply, JJD as IJJD, SampleItemResult as ITest, ReportSimpleVO as IReport } from "@/interface";
import { applyDataByOuterApplyIdService } from "@/api/apply";
import { jjdDataByOuterApplyIdService } from "@/api/jjd";
// 使用 as 重命名导出的方法
import { sampleItemResultByOuterApplyIdService as testDataByOuterApplyIdService } from "@/api/sampleItemResult";
import { reportDataByOuterApplyIdService } from "@/api/report";const useProgressCtrlStore = defineStore("progressCtrl", () => {// 页面实例数据// 受理类别列表数据const acceptTypeListData = ref<{ label: string; value: string }[]>([]);// 树数据const treeData = ref<ITree[]>([]);// 受理列表数据const applyBasicInfoListData = ref<IApplyBasicInfo[]>([]);// 查询对象const queryObj = ref<IQueryObj>({pageHelper: {page: 1,size: 5},acceptType: "",outerApplyId: "",sjdwName: "",acceptDateBegin: "",acceptDateEnd: ""});// 当前点击选择的树节点const currentNode = ref<ITree>();// 当前表格选择行const currentTableRow = ref<IApplyBasicInfo>();// 当前选中的选项卡名称const activeTabName = ref("test");// 子受理列表数据const applyListData = ref<IApply[]>([]);// 交接单列表数据const jjdListData = ref<IJJD[]>([]);// 检验列表数据const testListData = ref<ITest[]>([]);// 报告列表数据const reportListData = ref<IReport[]>([]);// 发送网络请求，获取受理类别列表数据const postAcceptTypeListDataService = async () => {let result = await acceptTypeOptionsByUserNameService();acceptTypeListData.value = result.data;};// 发送网络请求，获取受理列表数据const postApplyBasicInfoListDataService = async () => {// 前置处理，清空数据clearData();let result;// 通过树节点数据，获取受理列表数据if (!queryObj.value.outerApplyId &&!queryObj.value.sjdwName &&!queryObj.value.acceptDateBegin &&!queryObj.value.acceptDateEnd) {queryObj.value.acceptType = currentNode.value?.value;switch (currentNode.value?.value) {case "#ALL#":// 发送网络请求，获取受监控的受理列表数据（所有）result = await applyBasicInfoSjkAllService(queryObj.value);break;case "#today#":// 发送网络请求，获取受监控的受理列表数据（今天内到期）result = await applyBasicInfoSjkTodayService(queryObj.value);case "#3day#":// 发送网络请求，获取受监控的受理单（三天内到期）result = await applyBasicInfoSjk3DayService(queryObj.value);break;case "#recent#":// 发送网络请求，获取受监控的受理单（最近30天）result = await applyBasicInfoSjkRecentService(queryObj.value);break;case "#overdue#":// 发送网络请求，获取受监控的受理单（已超期）result = await applyBasicInfoSjkOverdueService(queryObj.value);break;default:// 发送网络请求，获取受监控的受理单（树节点）result = await applyBasicInfoSjkByQueryDTOService(queryObj.value);break;}}// 通过查询数据，获取受理列表数据else {queryObj.value.acceptType = currentNode.value?.value;// 发送网络请求，获取受监控的受理列表数据（有状态描述）result = await applyBasicInfoYztByQueryDTOService(queryObj.value);}applyBasicInfoListData.value = result.data.rows;};function clearData() {applyBasicInfoListData.value = [];applyListData.value = [];jjdListData.value = [];testListData.value = [];reportListData.value = [];}// 发送网络请求，获取子受理列表数据const postApplyListDataService = async () => {if (!currentTableRow.value) return;let result = await applyDataByOuterApplyIdService(currentTableRow.value?.outerApplyId);applyListData.value = result.data;};// 发送网络请求，获取交接单列表数据const postJJDListDataService = async () => {if (!currentTableRow.value) return;let result = await jjdDataByOuterApplyIdService(currentTableRow.value?.outerApplyId);jjdListData.value = result.data;};// 发送网络请求，获取检验列表数据const postTestListDataService = async () => {if (!currentTableRow.value) return;let result = await testDataByOuterApplyIdService(currentTableRow.value?.outerApplyId);testListData.value = result.data;};// 发送网络请求，获取报告列表数据const postReportListDataService = async () => {if (!currentTableRow.value) return;let result = await reportDataByOuterApplyIdService(currentTableRow.value?.outerApplyId);reportListData.value = result.data;};// 暴露供给外部访问的属性和方法return {acceptTypeListData,treeData,applyBasicInfoListData,queryObj,currentTableRow,currentNode,activeTabName,applyListData,jjdListData,testListData,reportListData,postAcceptTypeListDataService,postApplyBasicInfoListDataService,postApplyListDataService,postJJDListDataService,postTestListDataService,postReportListDataService,clearData};
});// 默认导出 store 实例
export default useProgressCtrlStore;

8、数据邦定

8.1、progress-ctrl.vue

<script setup lang="ts" name="progress-ctrl">
import ProgressCtrlTree from './progress-ctrl/comps/progress-ctrl-tree.vue';
import ProgressCtrlSearch from './progress-ctrl/comps/progress-ctrl-search.vue';
import ProgressCtrlMain from './progress-ctrl/comps/progress-ctrl-main.vue';
import ProgressCtrlTabs from './progress-ctrl/comps/progress-ctrl-tabs.vue';
import ProgressCtrlPagination from './progress-ctrl/comps/progress-ctrl-pagination.vue';</script><template><el-container class="layout-container"><el-aside class="aside"><!-- 左侧受理类别节点树 --><ProgressCtrlTree /></el-aside><el-container class="container"><el-header class="header"><!-- 查询栏 --><ProgressCtrlSearch /></el-header><el-main class="main"><!-- main --><ProgressCtrlMain /></el-main><el-footer class="footer"><!-- 选项卡 --><ProgressCtrlTabs /><!-- 分页 --><ProgressCtrlPagination /></el-footer></el-container></el-container>
</template><style scoped lang="scss">
* {margin: 0;padding: 0;
}
.layout-container {height: 100%;border: 1px solid #ddd;.aside {width: 150px;}.container {border-left: 1px solid #ddd;.header {height: auto;min-height: 40px;border-bottom: 1px solid #ddd;}.main {min-height: 100px;}.footer {height: auto;min-height: 40px;border-top: 1px solid #ddd;}}
}
</style>

8.2、progress-ctrl-tree.vue

<script setup lang="ts" name="progress-ctrl-tree">
import { onMounted, ref, type Component, markRaw } from "vue";
import type { ITree } from "@/views/query/progress-ctrl/types";
import useProgressCtrlStore from "@/views/query/progress-ctrl/stores";
import { Clock } from "@element-plus/icons-vue";const progressCtrlStore = useProgressCtrlStore();onMounted(async () => {// 获取受理类别列表数据await progressCtrlStore.postAcceptTypeListDataService();// 创建树形结构数据createTreeData(progressCtrlStore.acceptTypeListData);
});// 创建树形结构数据
function createTreeData(data: any[]) {let childrenData = data.map((item) => {let { label = "", value = "" } = { ...item };return {label: label as string,value: value as string};});progressCtrlStore.treeData.push({label: "受理类别",value: "#ALL#",children: childrenData});progressCtrlStore.treeData.push({label: "今天内到期",// 组件本身不需要响应式处理，使用 markRaw 包裹组件，标记组件为非响应式icon: markRaw(Clock),iconColor: "blue",value: "#today#"});progressCtrlStore.treeData.push({label: "三天内到期",// 组件本身不需要响应式处理，使用 markRaw 包裹组件，标记组件为非响应式icon: markRaw(Clock),iconColor: "orange",value: "#3day#"});progressCtrlStore.treeData.push({label: "最近30天",// 组件本身不需要响应式处理，使用 markRaw 包裹组件，标记组件为非响应式icon: markRaw(Clock),iconColor: "green",value: "#recent#"});progressCtrlStore.treeData.push({label: "已超期",// 组件本身不需要响应式处理，使用 markRaw 包裹组件，标记组件为非响应式icon: markRaw(Clock),iconColor: "red",value: "#overdue#"});
}// 点击树节点
const onTreeNodeClick = async (node: ITree) => {// 防止在同一树节点上点击多次，产生多次请求if (progressCtrlStore.currentNode && progressCtrlStore.currentNode.value === node.value) {return;}progressCtrlStore.currentNode = node;// 获取受监控的受理单await progressCtrlStore.postApplyBasicInfoListDataService();
};
</script><template><div class="tree"><el-scrollbar><el-tree:data="progressCtrlStore.treeData":default-expand-all="true":highlight-current="true":expand-on-click-node="false":indent="0"@node-click="onTreeNodeClick"></el-tree></el-scrollbar></div>
</template><style scoped lang="scss"></style>

8.3、progress-ctrl-search.vue

<script setup lang="ts" name="progress-ctrl-search">
import useProgressCtrlStore from "@/views/query/progress-ctrl/stores";
import { ref } from "vue";const progressCtrlStore = useProgressCtrlStore();
// 更多筛选
const moreFilterVisible = ref(false);
// 受理日期范围
const acceptDate = ref<string[]>([]);// 查询
import { ElMessage } from "element-plus";
const onQueryClick = async () => {progressCtrlStore.queryObj.acceptDateBegin = "";progressCtrlStore.queryObj.acceptDateEnd = "";// 从范围日期组件中，获取开始日期和结束日期if (acceptDate.value.length) {progressCtrlStore.queryObj.acceptDateBegin = acceptDate.value[0];progressCtrlStore.queryObj.acceptDateEnd = acceptDate.value[1];}// 检查查询参数if (!progressCtrlStore.queryObj.acceptDateBegin &&!progressCtrlStore.queryObj.acceptDateEnd &&!progressCtrlStore.queryObj.outerApplyId &&!progressCtrlStore.queryObj.sjdwName) {ElMessage.warning("请输入查询条件！");return;}// 获取受监控的受理列表数据await progressCtrlStore.postApplyBasicInfoListDataService();
};// 重置
const onResetClick = () => {// 清空日期选择器acceptDate.value.length = 0;// 清空查询条件progressCtrlStore.queryObj.outerApplyId = "";progressCtrlStore.queryObj.sjdwName = "";progressCtrlStore.queryObj.acceptDateBegin = "";progressCtrlStore.queryObj.acceptDateEnd = "";// 清空数据progressCtrlStore.clearData();
};// 更多筛选
const onMoreFilterClick = () => {moreFilterVisible.value = !moreFilterVisible.value;
};
</script><template><div class="search"><el-form class="header-form" v-model="progressCtrlStore.queryObj" :inline="true" :label-width="90"><el-form-item class="header-form-item-330" label="受理编号："><el-input v-model="progressCtrlStore.queryObj.outerApplyId" clearable /></el-form-item><el-form-item class="header-form-item-auto"><el-button class="btn-same-width" type="primary" plain @click="onQueryClick">查询</el-button><el-button class="btn-same-width" type="primary" plain @click="onResetClick">重置</el-button><el-button class="btn-same-width" type="primary" plain @click="onMoreFilterClick">更多筛选</el-button></el-form-item></el-form><el-formclass="header-form"v-model="progressCtrlStore.queryObj":inline="true":label-width="90"v-show="moreFilterVisible"><el-form-item class="header-form-item-330" label="受理日期："><el-date-pickerv-model="acceptDate"type="daterange"start-placeholder="开始日期"range-separator="至"end-placeholder="结束日期"format="YYYY-MM-DD"value-format="YYYY-MM-DD"></el-date-picker></el-form-item><el-form-item class="header-form-item-330" label="受检单位："><el-input v-model="progressCtrlStore.queryObj.sjdwName" clearable /></el-form-item></el-form></div>
</template><style scoped lang="scss"></style>

8.4、progress-ctrl-main.vue

<script setup lang="ts" name="progress-ctrl-main">
import useProgressCtrlStore from "../stores";const progressCtrlStore = useProgressCtrlStore();// 点击表格的行
const onTableRowClick = (row: any, column: any) => {progressCtrlStore.currentTableRow = row;
};
</script><template><div class="main"><el-tableref="table":data="progressCtrlStore.applyBasicInfoListData":border="true"highlight-current-rowstyle="width: 100%; height: 100%"@row-click="onTableRowClick"><el-table-columnprop="outerApplyId"label="受理编号"width="120"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="stateDescription"label="状态"width="150"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptDate"label="受理日期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="reportDate"label="报告限期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="verifyTypeName"label="检验类别"width="120"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptTypeName"label="受理类别"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptGroupName"label="受理组别"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="sjdwName"label="受检单位"width="300"header-align="center"sortableshow-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

8.5、progress-ctrl-tabs.vue

<script setup lang="ts" name="progress-ctrl-tabs">
import ProgressCtrlTabsApply from './progress-ctrl-tabs-apply.vue';
import ProgressCtrlTabsJJD from './progress-ctrl-tabs-jjd.vue';
import ProgressCtrlTabsTest from './progress-ctrl-tabs-test.vue';
import ProgressCtrlTabsReport from './progress-ctrl-tabs-report.vue';
import useProgressCtrlStore from '../stores';
import type { TabsPaneContext } from "element-plus";const progressCtrlStore = useProgressCtrlStore();// 切换tab页
const onTabClick = async (tab: TabsPaneContext, event: Event) => {progressCtrlStore.activeTabName = tab.paneName as string;
};
</script><template><div class="tabs"><el-tabs :model-value="progressCtrlStore.activeTabName" type="border-card" @tab-click="onTabClick"><el-tab-pane label="受理信息" name="apply"><ProgressCtrlTabsApply /></el-tab-pane><el-tab-pane label="交接信息" name="jjd"><ProgressCtrlTabsJJD /></el-tab-pane><el-tab-pane label="检测信息" name="test"><ProgressCtrlTabsTest /></el-tab-pane><el-tab-pane label="报告信息" name="report"><ProgressCtrlTabsReport /></el-tab-pane></el-tabs></div>
</template><style scoped lang="scss"></style>

8.6、progress-ctrl-tabs-apply.vue

<script setup lang="ts" name="progress-ctrl-tabs-apply">
import useProgressCtrlStore from "../stores";
import { computed, watch } from "vue";const progressCtrlStore = useProgressCtrlStore();
const tableData = computed(() => progressCtrlStore.applyListData);watch(() => progressCtrlStore.currentTableRow,async () => {if (progressCtrlStore.activeTabName === "apply") {await progressCtrlStore.postApplyListDataService();}}
);watch(() => progressCtrlStore.activeTabName,async () => {if (progressCtrlStore.activeTabName === "apply") {await progressCtrlStore.postApplyListDataService();}}
);
</script><template><div class="tabs-apply"><el-table ref="applyTable" :data="tableData" :border="true" highlight-current-row style="width: 100%; height: 100%"><el-table-columnprop="applyId"label="子受理编号"width="120"fixed="left"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="acceptDate"label="受理日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="acceptSmallTypeName"label="受理小类"width="150"header-align="center"show-overflow-tooltip /><el-table-column prop="sampleKind" label="检材类别" width="150" header-align="center" show-overflow-tooltip /><el-table-column prop="keepCondition" label="描述信息" width="150" header-align="center" show-overflow-tooltip /><el-table-columnprop="acceptPersonName"label="受理人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

8.7、progress-ctrl-tabs-jjd.vue

<script setup lang="ts" name="progress-ctrl-tabs-jjd">
import useProgressCtrlStore from "../stores";
import { computed, watch } from "vue";const progressCtrlStore = useProgressCtrlStore();
const tableData = computed(() => progressCtrlStore.jjdListData); watch(() => progressCtrlStore.currentTableRow,async () => {if (progressCtrlStore.activeTabName === "jjd") {await progressCtrlStore.postJJDListDataService();}}
);watch(() => progressCtrlStore.activeTabName,async () => {if (progressCtrlStore.activeTabName === "jjd") {await progressCtrlStore.postJJDListDataService();}}
);
</script><template><div class="tabs-jjd"><el-table ref="jjdTable" :data="tableData" :border="true" highlight-current-row style="width: 100%; height: 100%"><el-table-columnprop="blPersonName"label="派样人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-column prop="submitTime" label="派样时间" width="200" header-align="center" show-overflow-tooltip /><el-table-columnprop="checkGroupName"label="检验组别"width="150"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="receivePersonName"label="接样人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-column prop="receiveTime" label="接样时间" width="200" header-align="center" show-overflow-tooltip /><el-table-columnprop="deadlineTime"label="交接限期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

8.8、progress-ctrl-tabs-test.vue

<script setup lang="ts" name="progress-ctrl-tabs-test">
import useProgressCtrlStore from "../stores";
import { computed, watch } from "vue";const progressCtrlStore = useProgressCtrlStore();
const tableData = computed(() => progressCtrlStore.testListData);watch(() => progressCtrlStore.currentTableRow,async () => {if (progressCtrlStore.activeTabName === "test") {await progressCtrlStore.postTestListDataService();}}
);watch(() => progressCtrlStore.activeTabName,async () => {if (progressCtrlStore.activeTabName === "test") {await progressCtrlStore.postTestListDataService();}}
);
</script><template><div class="tabs-test"><el-table ref="testTable" :data="tableData" :border="true" highlight-current-row style="width: 100%; height: 100%"><el-table-columnprop="sampleNo"label="样品编号"width="120"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-columnprop="sampleName"label="样品名称"width="150"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-columnprop="itemName"label="检验项目"width="150"header-align="center"fixedsortableshow-overflow-tooltip /><el-table-column prop="result" label="结果" width="120" header-align="center" sortable show-overflow-tooltip /><el-table-column prop="conclusion" label="结论" width="80" header-align="center" sortable show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"sortableshow-overflow-tooltip /><el-table-columnprop="standardScript"label="标准值"width="120"header-align="center"sortableshow-overflow-tooltip /><el-table-column prop="unit" label="单位" width="100" header-align="center" sortable show-overflow-tooltip /><el-table-columnprop="ffbzId"label="检测标准编号"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="ffbzName"label="检测标准名称"width="300"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="verifyMethod"label="检验方法"width="150"header-align="center"sortableshow-overflow-tooltip /><el-table-column prop="person" label="检验员" width="100" header-align="center" sortable show-overflow-tooltip /><el-table-columnprop="allotTime"label="分派时间"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="submitTime"label="检测时间"width="200"header-align="center"sortableshow-overflow-tooltip /><el-table-columnprop="deadlineDate"label="检测限期"width="110"header-align="center":align="`center`"sortableshow-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

8.9、progress-ctrl-tabs-report.vue

<script setup lang="ts" name="progress-ctrl-tabs-report">
import useProgressCtrlStore from "../stores";
import { watch } from "vue";
import { storeToRefs } from "pinia";const progressCtrlStore = useProgressCtrlStore();
const { reportListData } = storeToRefs(progressCtrlStore);
const tableData = reportListData.value;watch(() => progressCtrlStore.currentTableRow,async () => {if (progressCtrlStore.activeTabName === "report") {await progressCtrlStore.postReportListDataService();}}
);watch(() => progressCtrlStore.activeTabName,async () => {if (progressCtrlStore.activeTabName === "report") {await progressCtrlStore.postReportListDataService();}}
);
</script><template><div class="tabs-report"><el-tableref="reportTable":data="tableData":border="true"highlight-current-rowstyle="width: 100%; height: 100%"><el-table-columnprop="deptName"label="所属部门"width="150"header-align="center"fixed="left"sortableshow-overflow-tooltip /><el-table-columnprop="type"label="类型"width="100"header-align="center":align="`center`"fixed="left"sortableshow-overflow-tooltip:formatter="(row: any) => { return row.type === 1 ? `检验报告` : `评价报告` }" /><el-table-columnprop="reportTypeName"label="报告类型"width="200"header-align="center"fixed="left"sortableshow-overflow-tooltip /><el-table-columnprop="hbPerson"label="编制人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hbDate"label="编制日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hdPerson"label="核对人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hdDate"label="核对日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hfPerson"label="签发人"width="100"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="hfDate"label="签发日期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="reportDate"label="报告限期"width="110"header-align="center":align="`center`"show-overflow-tooltip /><el-table-columnprop="state"label="状态"width="100"header-align="center":align="`center`"fixed="right"show-overflow-tooltip /></el-table></div>
</template><style scoped lang="scss"></style>

8.10、progress-ctrl-pagination.vue

<script setup lang="ts" name="progress-ctrl-pagination">
import useProgressCtrlStore from "../stores";const progressCtrlStore = useProgressCtrlStore();// 改变页码、显示数量，重新获取数据
const onPageOrSizeChange = async (currentPage: number, pageSize: number) => {progressCtrlStore.queryObj.pageHelper.page = currentPage;progressCtrlStore.queryObj.pageHelper.size = pageSize;// 获取受理列表数据await progressCtrlStore.postApplyBasicInfoSjkByQueryDTOListDataService();
};
</script><template><div class="pagination"><el-pagination:page-sizes="[5]"v-model:page-size="progressCtrlStore.queryObj.pageHelper.size"v-model:current-page="progressCtrlStore.queryObj.pageHelper.page"backgroundlayout="total, prev, pager, next":small="true"@change="onPageOrSizeChange" /></div>
</template><style scoped lang="scss"></style>

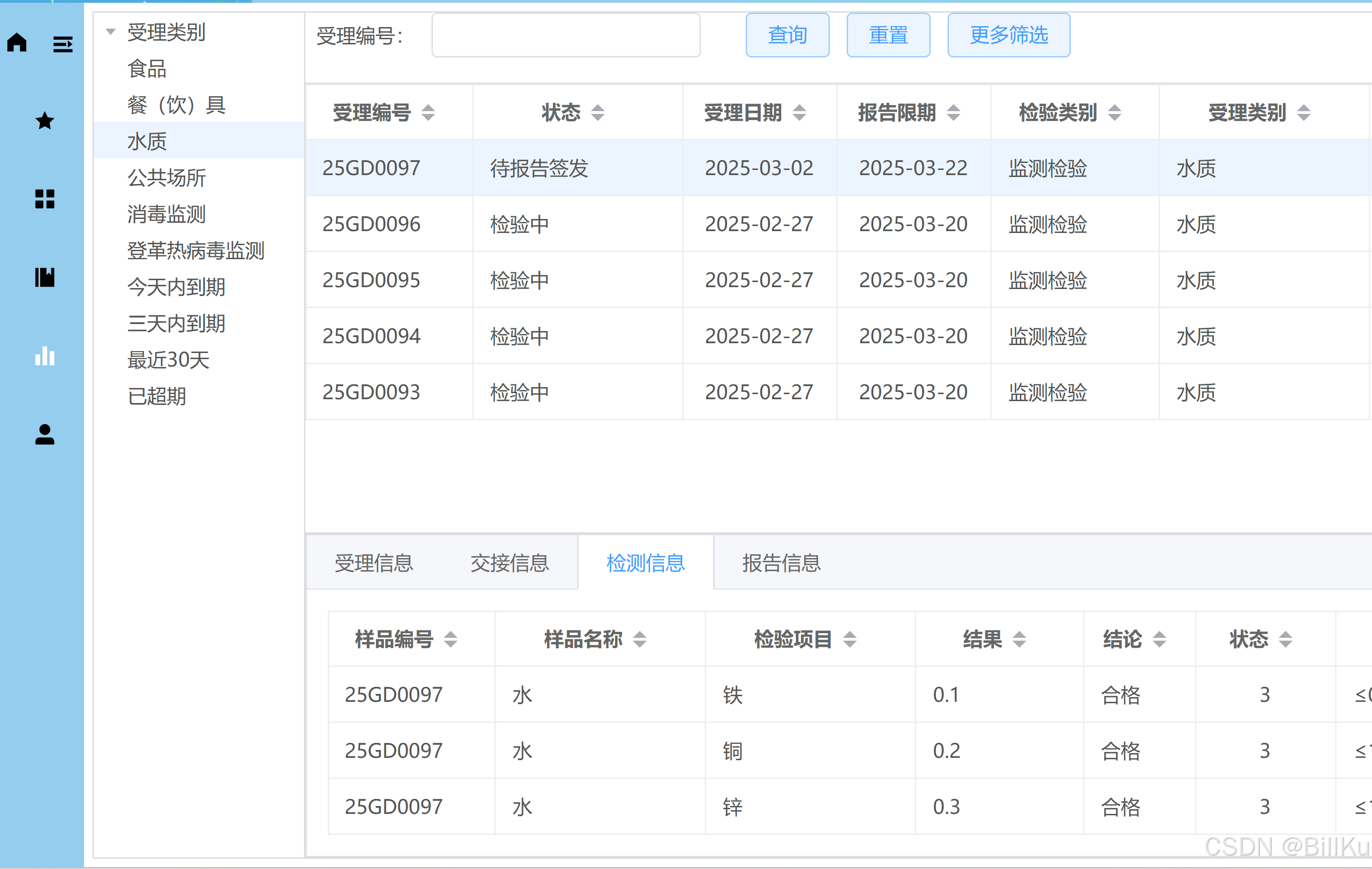

运行效果：

9、设置样式
