frameworks 之 Focus window

讲解 焦点窗口如何显示以及如何查看当前焦点窗口
相关知识点

1. SurfaceFlinger是Android系统中负责合成各个层（Layer）并将其显示到屏幕上的服务。应用通过SurfaceComposerClient与SurfaceFlinger通信，Transaction则是用来收集一批图层状态变更，然后一次性提交，这样可以提高效率，减少多次IPC调用的开销

涉及到的类如下

• frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
• frameworks/base/services/core/java/com/android/server/wm/RootWindowContainer.java
• frameworks/base/services/core/java/com/android/server/wm/DisplayContent.java
• frameworks/base/services/core/java/com/android/server/wm/WindowState.java
• frameworks/base/services/core/java/com/android/server/wm/InputMonitor.java
• frameworks/base/services/core/java/com/android/server/input/InputManagerService.java
• frameworks/base/services/core/jni/com_android_server_input_InputManagerService.cpp
• frameworks/base/services/core/java/com/android/server/wm/InputWindowHandleWrapper.java
• frameworks/base/core/java/android/view/SurfaceControl.java
• frameworks/native/libs/gui/SurfaceComposerClient.cpp
• frameworks/base/core/jni/android_view_SurfaceControl.cpp
• rameworks/base/core/jni/android_hardware_input_InputWindowHandle.cpp
• frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
• frameworks/native/services/surfaceflinger/WindowInfosListenerInvoker.cpp
• frameworks/native/services/inputflinger/dispatcher/FocusResolver.cpp
• frameworks/native/services/inputflinger/InputManager.cpp

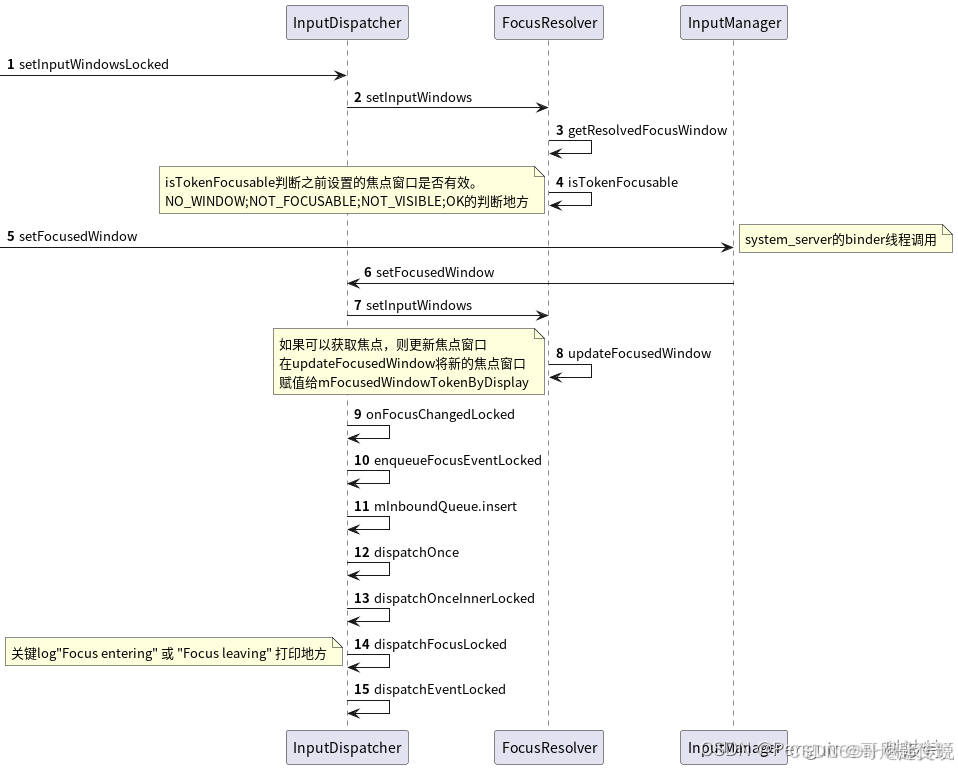

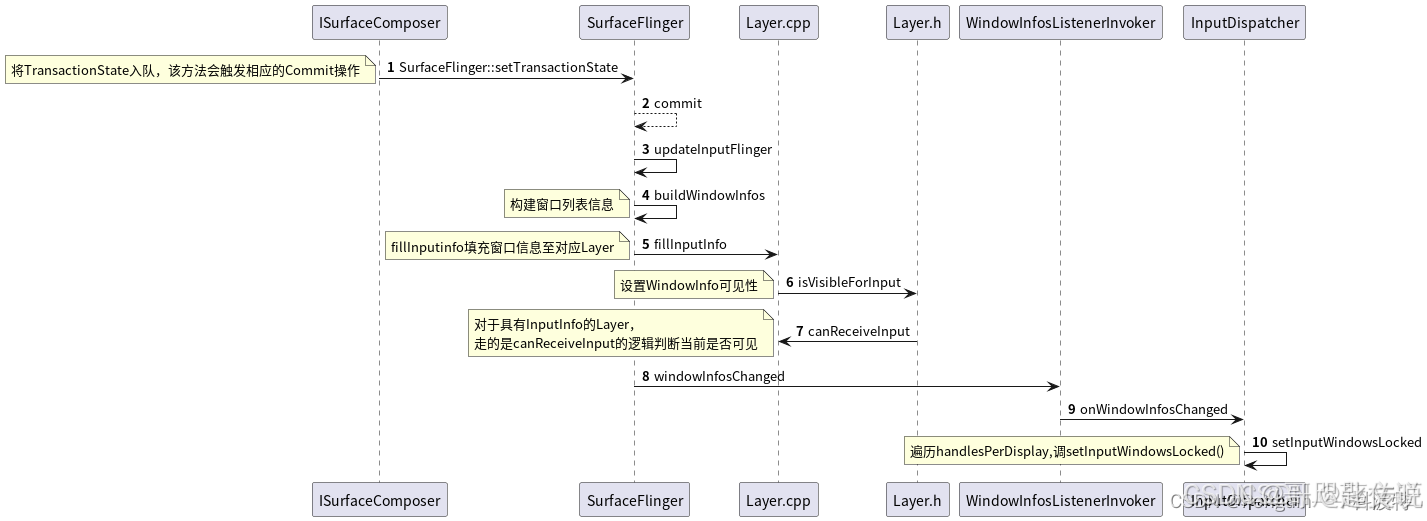

相关流程图，引用 该博客文章 《Android焦点之FocusWindow切换》 和 《Android焦点之SurfaceFlinger传递给InputFinger》

请求窗口焦点

设置窗口信息

1 查看当前焦点窗口

1.1 dump window

adb shell dumpsys window

执行后部分内容如下

1. WINDOW MANAGER LAST ANR 打印出上次 ANR的原因，也会包含ANR时候的窗口信息，如 mCurrentFocus，mFocusedApp
2. mCurrentFocus 表示当前焦点窗口
3. mFocusedApp 表示当前焦点应用

WINDOW MANAGER LAST ANR (dumpsys window lastanr)ANR time: 2025年2月21日 上午6:36:09Application at fault: ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivityReason: Application does not have a focused windowWindows added in display #0 since null focus: [Window{87d5194 u0 com.example.mysystemdialog/com.example.mysystemdialog.MainActivity}]Windows removed in display #0 since null focus: [Window{26b1193 u0 Splash Screen com.example.mysystemdialog}]....
WINDOW MANAGER DISPLAY CONTENTS (dumpsys window displays)mLastOrientationSource=WindowedMagnification:0:31@59915038deepestLastOrientationSource=ActivityRecord{d4b3e0 u0 com.android.launcher3/.uioverrides.QuickstepLauncher t14}overrideConfig={1.0 310mcc260mnc [zh_CN_#Hans,en_US] ldltr sw411dp w411dp h773dp 560dpi nrml long port finger qwerty/v/v dpad/v winConfig={ mBounds=Rect(0, 0 - 1440, 2960) mAppBounds=Rect(0, 0 - 1440, 2792) mMaxBounds=Rect(0, 0 - 1440, 2960) mWindowingMode=fullscreen mDisplayWindowingMode=fullscreen mActivityType=undefined mAlwaysOnTop=undefined mRotation=ROTATION_0} as.2 s.30 fontWeightAdjustment=0}Display: mDisplayId=0 rootTasks=4init=1440x2960 560dpi cur=1440x2960 app=1440x2792 rng=1440x1356-2792x2708deferred=false mLayoutNeeded=false mTouchExcludeRegion=SkRegion((0,0,1440,2960))mLayoutSeq=636mCurrentFocus=Window{ea70127 u0 com.android.launcher3/com.android.launcher3.uioverrides.QuickstepLauncher}mFocusedApp=ActivityRecord{d4b3e0 u0 com.android.launcher3/.uioverrides.QuickstepLauncher t14}

如果只想查看 ANR 也可以直接执行如下命令查看.

WINDOW MANAGER LAST ANR (dumpsys window lastanr)ANR time: 2025年2月21日 上午6:36:09Application at fault: ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivityReason: Application does not have a focused windowWindows added in display #0 since null focus: [Window{87d5194 u0 com.example.mysystemdialog/com.example.mysystemdialog.MainActivity}]Windows removed in display #0 since null focus: [Window{26b1193 u0 Splash Screen com.example.mysystemdialog}]
...
Last ANR continued
WINDOW MANAGER DISPLAY CONTENTS (dumpsys window displays)mLastOrientationSource=WindowedMagnification:0:31@59915038deepestLastOrientationSource=ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivity t19}overrideConfig={1.0 310mcc260mnc [zh_CN_#Hans,en_US] ldltr sw411dp w411dp h773dp 560dpi nrml long port finger qwerty/v/v dpad/v winConfig={ mBounds=Rect(0, 0 - 1440, 2960) mAppBounds=Rect(0, 0 - 1440, 2792) mMaxBounds=Rect(0, 0 - 1440, 2960) mWindowingMode=fullscreen mDisplayWindowingMode=fullscreen mActivityType=undefined mAlwaysOnTop=undefined mRotation=ROTATION_0} as.2 s.30 fontWeightAdjustment=0}Display: mDisplayId=0 rootTasks=5init=1440x2960 560dpi cur=1440x2960 app=1440x2792 rng=1440x1356-2792x2708deferred=false mLayoutNeeded=false mTouchExcludeRegion=SkRegion((0,0,1440,2960))

1.2 dump input

执行如下命令

adb shell dumpsys input

打印内容如下

1. FocusedApplications 表示当前焦点的应用
2. FocusedWindows 表示当前的焦点窗口
3. Input Dispatcher State at time of last ANR 开始记录上一次ANR的状态

Input Dispatcher State:DispatchEnabled: trueDispatchFrozen: falseInputFilterEnabled: falseFocusedDisplayId: 0FocusedApplications:displayId=0, name='ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivity t19}', dispatchingTimeout=5000msFocusedWindows:displayId=0, name='577c5c1 Application Not Responding: com.example.mysystemdialog'FocusRequests:displayId=0, name='577c5c1 Application Not Responding: com.example.mysystemdialog' result='OK'Input Dispatcher State at time of last ANR:ANR:Time: 2025-02-21 06:36:09Reason: ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivity t19} does not have a focused windowWindow: ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivity t19}
...FocusedApplications:displayId=0, name='ActivityRecord{7f16991 u0 com.example.mysystemdialog/.MainActivity t19}', dispatchingTimeout=5000msFocusedWindows: <none>

1.3 input Events 日志

也可以过滤日志查看当前的焦点

adb shell logcat -b events | grep input_focus

执行后可以看到如下日志

1. Focus leaving 表示输入正在取消
2. Focus request 表示输入请求
3. Focus entering 表示输入焦点在这个window

02-21 06:36:02.570  6677  6764 I input_focus: [Focus leaving ea70127 com.android.launcher3/com.android.launcher3.uioverrides.QuickstepLauncher (server),reason=NO_WINDOW]
02-21 06:36:10.304  6677  6700 I input_focus: [Focus request 577c5c1 Application Not Responding: com.example.mysystemdialog,reason=UpdateInputWindows]
02-21 06:36:10.371  6677  6764 I input_focus: [Focus entering 577c5c1 Application Not Responding: com.example.mysystemdialog (server),reason=Window became focusable. Previous reason: NOT_VISIBLE]

1.4 dump SurfaceFlinger

执行如下命令可以查看，显示如下，HWC是决定显示的图层，后面打 * 号 表示当前的焦点

1.5 查看关键的日志

打开对应的日志命令

adb shell wm logging enable-text WM_DEBUG_SCREEN_ON WM_DEBUG_APP_TRANSITIONS WM_DEBUG_FOCUS

过滤日志关键词

adb shell logcat | grep -IE "Changing focus from|findFocusedWindow: No focusable|setFocusedApp|setAppVisibility|Relayout "

2 更新当前焦点应用

当窗口的弹出，并不会改变当前焦点应用。只有改变应用切换才会触发，各种情况触发堆栈如3.1 打印。所以存在如焦点窗口是systemUi, 焦点应用是应用等情况。触发变化大部分都是从 ActivityTaskManagerService 的 setResumedActivityUncheckLocked 当更改ActivityReord 状态为resume状态的时候。

 void setResumedActivityUncheckLocked(ActivityRecord r, String reason) {....mLastResumedActivity = r;// 通过设置可见的时候，就会执行displayContent的setFocusedApp方法去更新当前焦点的mFocusedApp变量// 拉出状态栏等操作并不会改变该焦点应用final boolean changed = r.mDisplayContent.setFocusedApp(r);if (changed) {mWindowManager.updateFocusedWindowLocked(UPDATE_FOCUS_NORMAL,true /*updateInputWindows*/);}

会调用 displayContent 的 setFocusedApp 设置当前焦点的APP，如果有改变 则又会调 WindowManagerService 的 updateFocusedWindowLocked 进行更新窗口焦点

boolean setFocusedApp(ActivityRecord newFocus) {...final Task oldTask = mFocusedApp != null ? mFocusedApp.getTask() : null;final Task newTask = newFocus != null ? newFocus.getTask() : null;mFocusedApp = newFocus;if (oldTask != newTask) {if (oldTask != null) oldTask.onAppFocusChanged(false);if (newTask != null) newTask.onAppFocusChanged(true);}...}

接着又调用

boolean updateFocusedWindowLocked(int mode, boolean updateInputWindows) {Trace.traceBegin(TRACE_TAG_WINDOW_MANAGER, "wmUpdateFocus");boolean changed = mRoot.updateFocusedWindowLocked(mode, updateInputWindows);Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);return changed;}

3 更新当前焦点窗口

当启动一个activity的时候 会经历2个阶段，焦点为null ，到焦点存在。
当 新Activity 启动的时候 进入 resume 和 上一个Activity就会进入 onPause 状态

3.1 焦点丢失

当进入桌面onPause的时候，会通过 setVisibility 设置桌面应用不可见

1. 将对应打开中和关闭中的app移除，后续在根据可见状态添加
2. 调用 setVisibleRequested 设置对应的变量

void setVisibility(boolean visible, boolean deferHidingClient) {...ProtoLog.v(WM_DEBUG_APP_TRANSITIONS,"setAppVisibility(%s, visible=%b): %s visible=%b mVisibleRequested=%b Callers=%s",appToken, visible, appTransition, isVisible(), mVisibleRequested,Debug.getCallers(6));final DisplayContent displayContent = getDisplayContent();// 先将要打开的app和关闭的app移除，后面在根据visibledisplayContent.mOpeningApps.remove(this);displayContent.mClosingApps.remove(this);waitingToShow = false;// 当前设置是否可见的时候，会将mVisibleRequested赋值，用于判断canReceiveKeys是否可触摸setVisibleRequested(visible);...}

setVisibleRequested 方法主要将 mVisibleRequested 设置为false ，后续判断是否可见接收事件会用到该变量

private void setVisibleRequested(boolean visible) {if (visible == mVisibleRequested) {return;}// 设置可见的请求mVisibleRequested = visible;setInsetsFrozen(!visible);if (app != null) {mTaskSupervisor.onProcessActivityStateChanged(app, false /* forceBatch */);}logAppCompatState();}

对应的日志打印包括堆栈如下

02-23 01:19:35.788   561  9003 V WindowManager: setAppVisibility(Token{5253e43 ActivityRecord{3fcedf9 u0 com.android.launcher3/.uioverrides.QuickstepLauncher t25}}, visible=false): mNextAppTransitionRequests=[TRANSIT_OPEN, TRANSIT_OPEN], mNextAppTransitionFlags= visible=true mVisibleRequested=true Callers=com.android.server.wm.ActivityRecord.setVisibility:4784 com.android.server.wm.ActivityRecord.makeInvisible:5488 com.android.server.wm.EnsureActivitiesVisibleHelper.setActivityVisibilityState:224 com.android.server.wm.EnsureActivitiesVisibleHelper.process:140 com.android.server.wm.TaskFragment.updateActivityVisibilities:979 com.android.server.wm.Task.lambda$ensureActivitiesVisible$15:4866

在进入onPause的时候，又让对应的应用变为onResume状态，此时启动的应用也会调用对应的 setVisibility，将变量 mVisibleRequested 设置为true ，注意此时启动的会启动的windowState是闪屏页，目标的Activity还没创建AddView。

在设置 状态onActivityStateChanged的时候，如果是onResume 即会进入setResumedActivityUncheckLocked开始寻找对应的 窗口，看是否改变

	void onActivityStateChanged(ActivityRecord record, ActivityRecord.State state,String reason) {warnForNonLeafTaskFragment("onActivityStateChanged");if (record == mResumedActivity && state != RESUMED) {setResumedActivity(null, reason + " - onActivityStateChanged");}if (state == RESUMED) {if (ActivityTaskManagerDebugConfig.DEBUG_ROOT_TASK) {Slog.v(TAG, "set resumed activity to:" + record + " reason:" + reason);}setResumedActivity(record, reason + " - onActivityStateChanged");if (record == mRootWindowContainer.getTopResumedActivity()) {mAtmService.setResumedActivityUncheckLocked(record, reason);}mTaskSupervisor.mRecentTasks.add(record.getTask());}}

setResumedActivityUncheckLocked 方法会调用 displayContent的 setFocusedApp 方法设置焦点

void setResumedActivityUncheckLocked(ActivityRecord r, String reason) {...mLastResumedActivity = r;// 通过设置可见的时候，就会执行displayContent的setFocusedApp方法去更新当前焦点的mFocusedApp变量// 拉出状态栏等操作并不会改变该焦点应用final boolean changed = r.mDisplayContent.setFocusedApp(r);if (changed) {mWindowManager.updateFocusedWindowLocked(UPDATE_FOCUS_NORMAL,true /*updateInputWindows*/);}...}

接着又调用 RootWindowContainer的updateFocusedWindowLocked

	boolean updateFocusedWindowLocked(int mode, boolean updateInputWindows) {Trace.traceBegin(TRACE_TAG_WINDOW_MANAGER, "wmUpdateFocus");boolean changed = mRoot.updateFocusedWindowLocked(mode, updateInputWindows);Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);return changed;}

又会遍历各自的displayContent 的 updateFocusedWindowLocked 更新焦点

	boolean updateFocusedWindowLocked(int mode, boolean updateInputWindows) {mTopFocusedAppByProcess.clear();boolean changed = false;int topFocusedDisplayId = INVALID_DISPLAY;for (int i = mChildren.size() - 1; i >= 0; --i) {final DisplayContent dc = mChildren.get(i);// 更新对应窗口焦点changed |= dc.updateFocusedWindowLocked(mode, updateInputWindows, topFocusedDisplayId);}}

updateFocusedWindowLocked

1. 会先通过 findFocusedWindowIfNeeded 遍历获取对应的窗口
2. 判断是否和当前一样，是的话返回false，否则将新的窗口赋值给 mCurrentFocus

	boolean updateFocusedWindowLocked(int mode, boolean updateInputWindows,int topFocusedDisplayId) {// 查找新焦点,如果界面setVisibility为false则没焦点WindowState newFocus = findFocusedWindowIfNeeded(topFocusedDisplayId);// 如果是一样的则返回if (mCurrentFocus == newFocus) {return false;}...// 赋值新的焦点给mCurrentFocus变量ProtoLog.d(WM_DEBUG_FOCUS_LIGHT, "Changing focus from %s to %s displayId=%d Callers=%s",mCurrentFocus, newFocus, getDisplayId(), Debug.getCallers(4));final WindowState oldFocus = mCurrentFocus;mCurrentFocus = newFocus;}

findFocusedWindowIfNeeded 方法通过 findFocusedWindow 方法(判断实现为 mFindFocusedWindow)遍历获取，并将符合条件的保存到 mTmpWindow， 并返回。

	WindowState findFocusedWindowIfNeeded(int topFocusedDisplayId) {return (mWmService.mPerDisplayFocusEnabled || topFocusedDisplayId == INVALID_DISPLAY)? findFocusedWindow() : null;}WindowState findFocusedWindow() {mTmpWindow = null;// 开始从上到下遍历查找，查找到保存到 mTmpWindow 变量forAllWindows(mFindFocusedWindow, true /* traverseTopToBottom */);if (mTmpWindow == null) {ProtoLog.v(WM_DEBUG_FOCUS_LIGHT, "findFocusedWindow: No focusable windows, display=%d",getDisplayId());return null;}return mTmpWindow;}

mFindFocusedWindow 主要通过 WindowState的canReceiveKeys 方法

	private final ToBooleanFunction<WindowState> mFindFocusedWindow = w -> {// 当前聚焦的应用final ActivityRecord focusedApp = mFocusedApp;ProtoLog.v(WM_DEBUG_FOCUS, "Looking for focus: %s, flags=%d, canReceive=%b, reason=%s",w, w.mAttrs.flags, w.canReceiveKeys(),w.canReceiveKeysReason(false /* fromUserTouch */));// 判断当前是否能接收事件，主要依靠mVisibleRequested属性// 而该属性在 setVisisable设置，表示是否可见if (!w.canReceiveKeys()) {return false;}}

canReceiveKeys 方法判断如下，通过isVisibleRequestedOrAdding，可见和是否没带 FLAG_NOT_FOCUSABLE等变量判断

	public String canReceiveKeysReason(boolean fromUserTouch) {return "fromTouch= " + fromUserTouch+ " isVisibleRequestedOrAdding=" + isVisibleRequestedOrAdding()+ " mViewVisibility=" + mViewVisibility+ " mRemoveOnExit=" + mRemoveOnExit+ " flags=" + mAttrs.flags+ " appWindowsAreFocusable="+ (mActivityRecord == null || mActivityRecord.windowsAreFocusable(fromUserTouch))+ " canReceiveTouchInput=" + canReceiveTouchInput()+ " displayIsOnTop=" + getDisplayContent().isOnTop()+ " displayIsTrusted=" + getDisplayContent().isTrusted();}public boolean canReceiveKeys(boolean fromUserTouch) {final boolean canReceiveKeys = isVisibleRequestedOrAdding()&& (mViewVisibility == View.VISIBLE) && !mRemoveOnExit&& ((mAttrs.flags & WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE) == 0)&& (mActivityRecord == null || mActivityRecord.windowsAreFocusable(fromUserTouch))&& canReceiveTouchInput();if (!canReceiveKeys) {return false;}// Do not allow untrusted virtual display to receive keys unless user intentionally// touches the display.return fromUserTouch || getDisplayContent().isOnTop()|| getDisplayContent().isTrusted();}

而 isVisibleRequestedOrAdding 方法 主要就是依赖刚才的变量 mVisibleRequested

 boolean isVisibleRequestedOrAdding() {final ActivityRecord atoken = mActivityRecord;return (mHasSurface || (!mRelayoutCalled && mViewVisibility == View.VISIBLE))&& isVisibleByPolicy() && !isParentWindowHidden()&& (atoken == null || atoken.mVisibleRequested)&& !mAnimatingExit && !mDestroying;}

所以 因为桌面设置了不可见 和新启动的windowState是 Splash Screen 虽然可见，但是携带了 FLAG_NOT_FOCUSABLE ,所以遍历下来，此时没有可聚焦的窗口，就会返回null.。这样 当前的 mCurrentFocus 变为了 null

3.2 获得窗口焦点

1. 当对应的Activity启动后，进入realStartActivityLocked方法 时候，就会触发 setVisibility，将变量 mVisibleRequested 设置为true
   具体日志如下

02-23 01:19:35.951   561  9003 V WindowManager: setAppVisibility(Token{279e3b3 ActivityRecord{b8ad70 u0 com.android.gallery3d/.app.GalleryActivity t34}}, visible=true): mNextAppTransitionRequests=[], mNextAppTransitionFlags= visible=true mVisibleRequested=true Callers=com.android.server.wm.ActivityRecord.setVisibility:4784 com.android.server.wm.ActivityRecord.completeResumeLocked:5695 com.android.server.wm.Task.minimalResumeActivityLocked:4784 com.android.server.wm.ActivityTaskSupervisor.realStartActivityLocked:938 com.android.server.wm.RootWindowContainer.startActivityForAttachedApplicationIfNeeded:2017 com.android.server.wm.RootWindowContainer.$r8$lambda$auelgeOhCvbItmS_07q5VFEb1ac:0

2. 当窗口焦点丢失后，启动的Activity启动后，就会通过 addview 触发3部曲中的 relayout
   WMS的 relayoutWindow 方法当检测到窗口从不可见变为可见，可见性有变化的时候或者flag有变化，focusMayChange 即会变为 true。所以就会调用 updateFocusedWindowLocked

public int relayoutWindow(...){// 如果可见不一样 或者flagFLAG_NOT_FOCUSABL有变化boolean focusMayChange = win.mViewVisibility != viewVisibility|| ((flagChanges & FLAG_NOT_FOCUSABLE) != 0)|| (!win.mRelayoutCalled);// 如果窗口改变则执行该方法去更新对应屏幕的焦点窗口if (focusMayChange) {if (updateFocusedWindowLocked(UPDATE_FOCUS_NORMAL, true /*updateInputWindows*/)) {imMayMove = false;}}
}

updateFocusedWindowLocked 上面已讲解，此时 目标应用 已经为可见可触摸 ，所以可以查询到 ，所以焦点会变更为 桌面焦点。这样焦点就恢复了

4 窗口信息到InputDispatcher

当WMS保存了对应的焦点应用和窗口后，也要同步到 Input端。DisplayContent 负责传输的类是InputMonitor 。

4.1 焦点应用通知InputDispatcher

从上面流程可以看出 displayContent的时候会调用 InputMonitor对应的 setFocusedAppLw 方法开始通知

boolean setFocusedApp(ActivityRecord newFocus) {///ProtoLog.i(WM_DEBUG_FOCUS_LIGHT, "setFocusedApp %s displayId=%d Callers=%s",newFocus, getDisplayId(), Debug.getCallers(4));final Task oldTask = mFocusedApp != null ? mFocusedApp.getTask() : null;final Task newTask = newFocus != null ? newFocus.getTask() : null;mFocusedApp = newFocus;if (oldTask != newTask) {if (oldTask != null) oldTask.onAppFocusChanged(false);if (newTask != null) newTask.onAppFocusChanged(true);}// 将新的焦点通过mInputMonitor传递给inputgetInputMonitor().setFocusedAppLw(newFocus);
}

而 setFocusedAppLw 直接调用 InputManagerService 的 setFocusedApplication 方法。
getInputApplicationHandle 在 ActivityRecord 构造了 InputApplicationHandle 对象，用于跟native交互。里面的token 为 ActivityRecord 的appToken，属于ibinder对象

	void setFocusedAppLw(ActivityRecord newApp) {// Focused app has changed.// 构建 InputApplicationHandle对象，将ActivityRecord的AIDL对象appToken传递进去mService.mInputManager.setFocusedApplication(mDisplayId,newApp != null ? newApp.getInputApplicationHandle(true /* update */) : null);}

InputManagerService 又会调用 native方法 nativeSetFocusedApplication

	public void setFocusedApplication(int displayId, InputApplicationHandle application) {nativeSetFocusedApplication(mPtr, displayId, application);}

查看 com_android_server_input_InputManagerService.cpp 文件的 nativeSetFocusedApplication 方法，又会调用 NativeInputManager 的 setFocusedApplication

static void nativeSetFocusedApplication(JNIEnv* env, jclass /* clazz */,jlong ptr, jint displayId, jobject applicationHandleObj) {NativeInputManager* im = reinterpret_cast<NativeInputManager*>(ptr);im->setFocusedApplication(env, displayId, applicationHandleObj);
}

NativeInputManager 又会继续调用 inputDIspatcher的 setFocusedApplication

void NativeInputManager::setFocusedApplication(JNIEnv* env, int32_t displayId,jobject applicationHandleObj) {if (!applicationHandleObj) {return;}std::shared_ptr<InputApplicationHandle> applicationHandle =android_view_InputApplicationHandle_getHandle(env, applicationHandleObj);applicationHandle->updateInfo();// 调用 inputDispater的setFocusedApplication方法mInputManager->getDispatcher()->setFocusedApplication(displayId, applicationHandle);
}

InputDispatcher 又会调用 setFocusedApplicationLocked

void InputDispatcher::setFocusedApplication(int32_t displayId, const std::shared_ptr<InputApplicationHandle>& inputApplicationHandle) {if (DEBUG_FOCUS) {ALOGD("setFocusedApplication displayId=%" PRId32 " %s", displayId,inputApplicationHandle ? inputApplicationHandle->getName().c_str() : "<nullptr>");}{ // acquire lockstd::scoped_lock _l(mLock);// 设置当前对应的ApplicationsetFocusedApplicationLocked(displayId, inputApplicationHandle);} // release lock// Wake up poll loop since it may need to make new input dispatching choices.mLooper->wake();
}

该方法会从 mFocusedApplicationHandlesByDisplay 根据displayId 获取之前聚焦的应用，如果相等不处理，不相等的话则替换放到 mFocusedApplicationHandlesByDisplay， 为空的话则移除

void InputDispatcher::setFocusedApplicationLocked(int32_t displayId, const std::shared_ptr<InputApplicationHandle>& inputApplicationHandle) {// 从mFocusedApplicationHandlesByDisplay获取当前的已聚焦的应用std::shared_ptr<InputApplicationHandle> oldFocusedApplicationHandle =getValueByKey(mFocusedApplicationHandlesByDisplay, displayId);// 判断是否相等if (sharedPointersEqual(oldFocusedApplicationHandle, inputApplicationHandle)) {return; // This application is already focused. No need to wake up or change anything.}// Set the new application handle.// r如果为空则移除，否则就根据displayId 保存inputApplicationHandleif (inputApplicationHandle != nullptr) {mFocusedApplicationHandlesByDisplay[displayId] = inputApplicationHandle;} else {mFocusedApplicationHandlesByDisplay.erase(displayId);}// No matter what the old focused application was, stop waiting on it because it is// no longer focused.resetNoFocusedWindowTimeoutLocked();
}

这样就将当前聚焦的应用传递到InputDispatcher

4.2 焦点窗口通知InputDispatcher

相对于聚焦应用的通知，窗口通知比较复杂，需要先从WMS通知到 SurfaceFlinger，SurfaceFlinger 在通知到 InputDispatcher。

当焦点有改变的时候如上面流程就会调用到 DisplayContent 的 updateFocusedWindowLocked

	boolean updateFocusedWindowLocked(int mode, boolean updateInputWindows,int topFocusedDisplayId) {// 查找新焦点,如果界面setVisibility为false则没焦点WindowState newFocus = findFocusedWindowIfNeeded(topFocusedDisplayId);// 如果是一样的则返回if (mCurrentFocus == newFocus) {return false;}...// 赋值新的焦点给mCurrentFocus变量ProtoLog.d(WM_DEBUG_FOCUS_LIGHT, "Changing focus from %s to %s displayId=%d Callers=%s",mCurrentFocus, newFocus, getDisplayId(), Debug.getCallers(4));final WindowState oldFocus = mCurrentFocus;mCurrentFocus = newFocus;...if (mode != UPDATE_FOCUS_WILL_ASSIGN_LAYERS) {// If we defer assigning layers, then the caller is responsible for doing this part.// 当焦点改变，通过 inputMonitor通知 setInputFocusLwgetInputMonitor().setInputFocusLw(newFocus, updateInputWindows);}}

setInputFocusLw 会调用对应的 updateInputWindowsLw 方法 ，该方法又会通过 scheduleUpdateInputWindows 启动 mUpdateInputWindows 任务

	void setInputFocusLw(WindowState newWindow, boolean updateInputWindows) {ProtoLog.v(WM_DEBUG_FOCUS_LIGHT, "Input focus has changed to %s display=%d",newWindow, mDisplayId);...if (updateInputWindows) {updateInputWindowsLw(false /*force*/);}}void updateInputWindowsLw(boolean force) {if (!force && !mUpdateInputWindowsNeeded) {return;}// 启动mUpdateInputWindows任务scheduleUpdateInputWindows();}private void scheduleUpdateInputWindows() {if (mDisplayRemoved) {return;}if (!mUpdateInputWindowsPending) {mUpdateInputWindowsPending = true;mHandler.post(mUpdateInputWindows);}}

UpdateInputWindows 主要执行了 UpdateInputForAllWindowsConsumer的 updateInputWindows 方法

private class UpdateInputWindows implements Runnable {@Overridepublic void run() {synchronized (mService.mGlobalLock) {...// Add all windows on the default display.mUpdateInputForAllWindowsConsumer.updateInputWindows(inDrag);}}}

UpdateInputForAllWindowsConsumer 主要工作

1. 调用 disolayContent的forAllWindows，遍历所有windowState，去更新对应的信息
2. 调用 updateInputFocusRequest 去申请输入焦点，要通过requestFocus 申请了，才会在InputDispatcher 有数据，这样才会在后续的焦点更新那从request数据中获取到，不然一直会是null，没输入事件

private final class UpdateInputForAllWindowsConsumer implements Consumer<WindowState> {...private void updateInputWindows(boolean inDrag) {...// 遍历所有窗口信息，因为传入的为this,遍历的时候会调用的accept方法mDisplayContent.forAllWindows(this, true /* traverseTopToBottom */);// 更新所有焦点，只要通过requestFocus 申请了，才会在InputDispatcher 有数据，// 这样才会在后续的焦点更新那从request数据中获取到，不然一直会是null，没输入事件updateInputFocusRequest(mRecentsAnimationInputConsumer);if (!mUpdateInputWindowsImmediately) {// 合并对应的事务mDisplayContent.getPendingTransaction().merge(mInputTransaction);mDisplayContent.scheduleAnimation();}Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);}@Overridepublic void accept(WindowState w) {// InputWindowHandleWrapper 包含displayId和InputApplicationHandlefinal InputWindowHandleWrapper inputWindowHandle = w.mInputWindowHandle;...if (w.mInputChannelToken == null || w.mRemoved|| (!w.canReceiveTouchInput() && !shouldApplyRecentsInputConsumer)) {// 如果不可输入但是拥有 Surface，调用populateOverlayInputInfo重置下信息，如token重置// 在 openInputChannel的时候会赋值if (w.mWinAnimator.hasSurface()) {// Make sure the input info can't receive input event. It may be omitted from// occlusion detection depending on the type or if it's a trusted overlay.populateOverlayInputInfo(inputWindowHandle, w);setInputWindowInfoIfNeeded(mInputTransaction,w.mWinAnimator.mSurfaceController.mSurfaceControl, inputWindowHandle);return;}// Skip this window because it cannot possibly receive input.return;}...// 有surfaceif (w.mWinAnimator.hasSurface()) {// 构造对应的inputWindowHandle信息，用于native传输populateInputWindowHandle(inputWindowHandle, w);// 调用 InputTransaction事务将InputWindowHandleWrapper放进去setInputWindowInfoIfNeeded(mInputTransaction,w.mWinAnimator.mSurfaceController.mSurfaceControl, inputWindowHandle);}}}

因为 forAllWindows 传入的是 this,所以会触发 accept 方法。该方法主要

1. 如果不可输入但是拥有 Surface，调用populateOverlayInputInfo重置下信息，如token重置为null（在 openInputChannel的时候会赋值）
2. 最后有Surface的时候 调用 populateInputWindowHandle ,构造对应的inputWindowHandle信息，用于native传输

4.2.1 更新窗口信息 setInputWindowInfo

4.2.1.1 WMS通知到SurfaceFlinger

通过 populateInputWindowHandle 设置好之后，就会调用 setInputWindowInfoIfNeeded，因为设置过所以 isChanged 返回true。所以会调用 applyChangesToSurface 方法提交到事务

	static void setInputWindowInfoIfNeeded(SurfaceControl.Transaction t, SurfaceControl sc,InputWindowHandleWrapper inputWindowHandle) {if (DEBUG_INPUT) {Slog.d(TAG_WM, "Update InputWindowHandle: " + inputWindowHandle);}// 只要有设置就会为trueif (inputWindowHandle.isChanged()) {inputWindowHandle.applyChangesToSurface(t, sc);}}

里面会调用事务的 setInputWIndowInfo

	void applyChangesToSurface(@NonNull SurfaceControl.Transaction t, @NonNull SurfaceControl sc) {// 调用Transaction的setInputWindowInfo将setInputWindowInfo保存进入t.setInputWindowInfo(sc, mHandle);mChanged = false;}

调用 nativeSetInputWindowInfo 将 对应 InputWindowHandle 信息传递给 SurfaceControl

		public Transaction setInputWindowInfo(SurfaceControl sc, InputWindowHandle handle) {checkPreconditions(sc);nativeSetInputWindowInfo(mNativeObject, sc.mNativeObject, handle);return this;}

nativeSetInputWindowInfo 内容如下

1. 通过 android_view_InputWindowHandle_getHandle 构建出 NativeInputWindowHandle 对象
2. 调用 updateInfo 方法，将 java的inputWindowHandler属性拿出，拷贝到 NativeInputWindowHandle变量
3. 调用 SurfaceComposerClient的setInputWindowInfo 更新窗口信息到数组

// transactionObj参数是Transaction的指针，而nativeObject是SurfaceControl的指针
static void nativeSetInputWindowInfo(JNIEnv* env, jclass clazz, jlong transactionObj,jlong nativeObject, jobject inputWindow) {auto transaction = reinterpret_cast<SurfaceComposerClient::Transaction*>(transactionObj);// 创建 NativeInputWindowHandle 对象sp<NativeInputWindowHandle> handle = android_view_InputWindowHandle_getHandle(env, inputWindow);// 将 java的inputWindowHandler属性拿出，拷贝到 NativeInputWindowHandle变量handle->updateInfo();// 获取SurfaceControlauto ctrl = reinterpret_cast<SurfaceControl *>(nativeObject);// 调用 SurfaceComposerClient的setInputWindowInfo，会保存到 mComposerStates 数组，后续apply事务的时候就会从该数据遍历transaction->setInputWindowInfo(ctrl, *handle->getInfo());
}

android_view_InputWindowHandle_getHandle 方法。会根据ptr属性获取，如果不为空则直接获取，否则在创建，并设置到对应ptr属性

sp<NativeInputWindowHandle> android_view_InputWindowHandle_getHandle(JNIEnv* env, jobject inputWindowHandleObj) {if (!inputWindowHandleObj) {return NULL;}AutoMutex _l(gHandleMutex);jlong ptr = env->GetLongField(inputWindowHandleObj, gInputWindowHandleClassInfo.ptr);NativeInputWindowHandle* handle;// 获取对应的指针如果不为空则直接获取，否则在创建，并设置到对应ptr属性。if (ptr) {handle = reinterpret_cast<NativeInputWindowHandle*>(ptr);} else {jweak objWeak = env->NewWeakGlobalRef(inputWindowHandleObj);handle = new NativeInputWindowHandle(objWeak);handle->incStrong((void*)android_view_InputWindowHandle_getHandle);env->SetLongField(inputWindowHandleObj, gInputWindowHandleClassInfo.ptr,reinterpret_cast<jlong>(handle));}return handle;
}

updateInfo 进行深拷贝

bool NativeInputWindowHandle::updateInfo() {JNIEnv* env = AndroidRuntime::getJNIEnv();jobject obj = env->NewLocalRef(mObjWeak);...// windowState的tokenjobject tokenObj = env->GetObjectField(obj, gInputWindowHandleClassInfo.token);if (tokenObj) {mInfo.token = ibinderForJavaObject(env, tokenObj);env->DeleteLocalRef(tokenObj);} else {mInfo.token.clear();}...// 获取对应的 AIDL token(IWindow AIDL接口，用于wms和应用交互通知,如viewRootImpl的W)// 通过 ibinderForJavaObject 转换放到 windowTokenjobject windowTokenObj = env->GetObjectField(obj, gInputWindowHandleClassInfo.windowToken);if (windowTokenObj) {mInfo.windowToken = ibinderForJavaObject(env, windowTokenObj);env->DeleteLocalRef(windowTokenObj);} else {mInfo.windowToken.clear();}env->DeleteLocalRef(obj);return true;
}

setInputWindowInfo 方法,

1. 通过 getLayerState 创建对应 layer_state_t，该方法很重要会将对应的信息保存到 mComposerStates
2. 将windowInfo放到WindowInfoHandle，并赋值给 layer_state_t

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::setInputWindowInfo(const sp<SurfaceControl>& sc, const WindowInfo& info) {// 获取对应的 layer_state_tlayer_state_t* s = getLayerState(sc);if (!s) {mStatus = BAD_INDEX;return *this;}// 将windowInfo放到WindowInfoHandle，并赋值给 layer_state_ts->windowInfoHandle = new WindowInfoHandle(info);// 记录变化的s->what |= layer_state_t::eInputInfoChanged;return *this;
}

getLayerState 会获取

1. SurfaceControl 对应的 binder对象。从mComposerStates数组判断是否存在
2. 不包含则创建，将对应信息放进去layer_state_t 并根据handler为key，放进mComposerStates
3. 返回 layer_state_t

layer_state_t* SurfaceComposerClient::Transaction::getLayerState(const sp<SurfaceControl>& sc) {// 获取SurfaceControl的binderauto handle = sc->getLayerStateHandle();// 判断 mComposerStates 是否包含，不包含则创建，并根据handler为key，放进mComposerStates// 后续事务提交的时候，会从mComposerStates该数组遍历if (mComposerStates.count(handle) == 0) {// we don't have it, add an initialized layer_state to our listComposerState s;// 放进 layer_state_t 中s.state.surface = handle;s.state.layerId = sc->getLayerId();mComposerStates[handle] = s;}// 返回 layer_state_treturn &(mComposerStates[handle].state);
}

4.2.1.2 SurfaceFlinger 到 InputDIspatcher

事务在 提交的时候，就会调用 apply方法。又会调用过 nativeApplyTransaction 方法。

		public void apply(boolean sync) {applyResizedSurfaces();notifyReparentedSurfaces();nativeApplyTransaction(mNativeObject, sync);}

native 又会调用 SurfaceComposerClient 的 apply 方法。

static void nativeApplyTransaction(JNIEnv* env, jclass clazz, jlong transactionObj, jboolean sync) {auto transaction = reinterpret_cast<SurfaceComposerClient::Transaction*>(transactionObj);// 调用 SurfaceComposerClient 的applytransaction->apply(sync);
}

apply方法

1. 获取 SurfaceFlinger的Binder代理sf
2. 开始遍历 mComposerStates, 添加到 composerStates
3. 跨进程调用SurfaceFlinger的setTransactionState把composerStates作为参数

status_t SurfaceComposerClient::Transaction::apply(bool synchronous) {if (mStatus != NO_ERROR) {return mStatus;}// 获取SurfaceFlinger的Binder代理sf，单例sp<ISurfaceComposer> sf(ComposerService::getComposerService());...// 开始遍历 mComposerStates, 添加到 composerStatesfor (auto const& kv : mComposerStates){composerStates.add(kv.second);}...// 如果已经有则直接用，否则创建TransactionCompletedListenersp<IBinder> applyToken = mApplyToken? mApplyToken: IInterface::asBinder(TransactionCompletedListener::getIInstance());// 跨进程调用SurfaceFlinger的setTransactionState把composerStates作为参数sf->setTransactionState(mFrameTimelineInfo, composerStates, displayStates, flags, applyToken,mInputWindowCommands, mDesiredPresentTime, mIsAutoTimestamp,{} /*uncacheBuffer - only set in doUncacheBufferTransaction*/,hasListenerCallbacks, listenerCallbacks, mId);}

setTransactionState 会创建 TransactionState 对象，并调用 queueTransaction 方法，将事务（Transaction）加入队列。

status_t SurfaceFlinger::setTransactionState(const FrameTimelineInfo& frameTimelineInfo, const Vector<ComposerState>& states,const Vector<DisplayState>& displays, uint32_t flags, const sp<IBinder>& applyToken,const InputWindowCommands& inputWindowCommands, int64_t desiredPresentTime,bool isAutoTimestamp, const client_cache_t& uncacheBuffer, bool hasListenerCallbacks,const std::vector<ListenerCallbacks>& listenerCallbacks, uint64_t transactionId) {...// 将参数放到 TransactionState 对象中。TransactionState state{frameTimelineInfo,  states,displays,           flags,applyToken,         inputWindowCommands,desiredPresentTime, isAutoTimestamp,uncacheBuffer,      postTime,permissions,        hasListenerCallbacks,listenerCallbacks,  originPid,originUid,          transactionId};...// 把TransactionState放入队列，且会启动对应的scheduleCommitqueueTransaction(state);// Check the pending state to make sure the transaction is synchronous.if (state.transactionCommittedSignal) {waitForSynchronousTransaction(*state.transactionCommittedSignal);}return NO_ERROR;
}

在每次SurfaceFlinger主线程进行commit操作的时候，都会调用一次updateInputFlinger方法去更新一遍需要派发给InputDispatcher的窗口信息。

updateInputFlinger 方法会调用 notifyWindowInfos 方法开始通知 给inputDispatcher

void SurfaceFlinger::updateInputFlinger() {ATRACE_CALL();if (!mInputFlinger) {return;}if (mVisibleRegionsDirty || mInputInfoChanged) {mInputInfoChanged = false;// 调用通知给inputDispatchernotifyWindowInfos();} ...for (const auto& focusRequest : mInputWindowCommands.focusRequests) {mInputFlinger->setFocusedWindow(focusRequest);}
;
}

notifyWindowInfos

1. 通过 traverseInReverseZOrder 开始遍历，判断是否需要，通过layer里面的 hasInputInfo 方法，hasInputInfo通过inputInfo的token是否为空判断,并将放到 windowInfos 数组尾部
2. 通过 mWindowInfosListenerInvoker 开始触发通知，给 InputDispatcher

void SurfaceFlinger::notifyWindowInfos() {std::vector<WindowInfo> windowInfos;// 开始遍历，过滤需要的windowInfosmDrawingState.traverseInReverseZOrder([&](Layer* layer) {// 判断是否需要，通过layer里面的 hasInputInfo 方法，hasInputInfo通过inputInfo的token是否为空判断if (!layer->needsInputInfo()) return;sp<DisplayDevice> display = enablePerWindowInputRotation()? ON_MAIN_THREAD(getDisplayWithInputByLayer(layer)): nullptr;// When calculating the screen bounds we ignore the transparent region since it may// result in an unwanted offset.// 根据layer填满outWindowInfos信息windowInfos.push_back(layer->fillInputInfo(display));});// 开始触发通知，给 InputDispatchermWindowInfosListenerInvoker->windowInfosChanged(windowInfos,mInputWindowCommands.syncInputWindows);
}

WindowInfosListenerInvoker 的 windowInfosChanged方法又会遍历listner，里面其实就是 InputDispather

void WindowInfosListenerInvoker::windowInfosChanged(const std::vector<WindowInfo>& windowInfos,bool shouldSync) {...// 这里listener其实就是InputDispatherfor (const auto& listener : windowInfosListeners) {listener->onWindowInfosChanged(windowInfos,shouldSync ? mWindowInfosReportedListener : nullptr);}
}

查看 InputDispather 的 onWindowInfosChanged 方法

void InputDispatcher::onWindowInfosChanged(const std::vector<gui::WindowInfo>& windowInfos) {// The listener sends the windows as a flattened array. Separate the windows by display for// more convenient parsing.std::unordered_map<int32_t, std::vector<sp<WindowInfoHandle>>> handlesPerDisplay;for (const auto& info : windowInfos) {handlesPerDisplay.emplace(info.displayId, std::vector<sp<WindowInfoHandle>>());handlesPerDisplay[info.displayId].push_back(new WindowInfoHandle(info));}setInputWindows(handlesPerDisplay);
}

setInputWindows 主要更新 内容

1. 调用 updateWindowHandlesForDisplayLocked，更新mWindowHandlesByDisplay对应该屏幕下的数据
2. 调用 FocusResolver 的 setInputWindows 开始设置焦点窗口

void InputDispatcher::setInputWindowsLocked(const std::vector<sp<WindowInfoHandle>>& windowInfoHandles, int32_t displayId) {if (DEBUG_FOCUS) {...ALOGD("setInputWindows displayId=%" PRId32 " %s", displayId, windowList.c_str());}...// 比较更旧的windowInfo，更新mWindowHandlesByDisplay对应该屏幕下的数据updateWindowHandlesForDisplayLocked(windowInfoHandles, displayId);// 判断是否改变窗口焦点std::optional<FocusResolver::FocusChanges> changes =mFocusResolver.setInputWindows(displayId, windowHandles);if (changes) {onFocusChangedLocked(*changes);}...
}

FocusResolver 的 setInputWindows 方法

1. 通过getFocusedWindowToken（通过mFocusedWindowTokenByDisplay数组） 获取还没更新前的焦点窗口
2. 调用 isTokenFocusable,判断下当前窗口是否可以聚焦，如果还聚焦的话，则继续授予其焦点。返回null，表示不需要改变。
3. 通过 getFocusRequest（通过 mFocusRequestByDisplay 数组）方法获取请求的焦点窗口，需要调用 （requestFocus），如果没请求过的话，则表示没焦点。
4. 如果请求过，则再次通过 isTokenFocusable ，判断该窗口是否符合，如何的话则调用 updateFocusedWindow 方法进行更新，如果不符合的话，则传入null，将当前屏幕设置为没焦点。

std::optional<FocusResolver::FocusChanges> FocusResolver::setInputWindows(int32_t displayId, const std::vector<sp<WindowInfoHandle>>& windows) {std::string removeFocusReason;// Check if the currently focused window is still focusable.// 通过 mFocusedWindowTokenByDisplay（mFocusedWindowTokenByDisplay数组） 检查下当前还没更新的焦点是否还在,这时候还没更新，所以获取的是旧的const sp<IBinder> currentFocus = getFocusedWindowToken(displayId);if (currentFocus) {Focusability result = isTokenFocusable(currentFocus, windows);// 返回ok，表示当前窗口仍可以聚焦，那么我们将继续授予其焦点if (result == Focusability::OK) {return std::nullopt;}removeFocusReason = NamedEnum::string(result);}// We don't have a focused window or the currently focused window is no longer focusable. Check// to see if we can grant focus to the window that previously requested focus.// 请求的requestFocus(（mFocusRequestByDisplay数组）)是否存在，如果没请求，那 updateFocusedWindow 只会传入nullconst std::optional<FocusRequest> request = getFocusRequest(displayId);if (request) {sp<IBinder> requestedFocus = request->token;const Focusability result = isTokenFocusable(requestedFocus, windows);const Focusability previousResult = mLastFocusResultByDisplay[displayId];mLastFocusResultByDisplay[displayId] = result;// 如果可以 则调用 updateFocusedWindow 更新当前聚焦焦点if (result == Focusability::OK) {return updateFocusedWindow(displayId,"Window became focusable. Previous reason: " +NamedEnum::string(previousResult),requestedFocus, request->windowName);}}// Focused window is no longer focusable and we don't have a suitable focus request to grant.// Remove focus if needed.// 因为没请求，传入为空的对象更新为空的，让其失去焦点return updateFocusedWindow(displayId, removeFocusReason, nullptr);
}

isTokenFocusable 判断是否符合条件 ，遍历表示是否可见，是否可聚焦。

FocusResolver::Focusability FocusResolver::isTokenFocusable(const sp<IBinder>& token, const std::vector<sp<WindowInfoHandle>>& windows) {bool allWindowsAreFocusable = true;bool visibleWindowFound = false;bool windowFound = false;for (const sp<WindowInfoHandle>& window : windows) {// 遍历到相等才执行判断if (window->getToken() != token) {continue;}windowFound = true;// 至少有一个窗口可见if (window->getInfo()->visible) {// Check if at least a single window is visible.visibleWindowFound = true;}// 检查所有窗口是否可聚焦if (!window->getInfo()->focusable) {// Check if all windows with the window token are focusable.allWindowsAreFocusable = false;break;}}if (!windowFound) {return Focusability::NO_WINDOW;}if (!allWindowsAreFocusable) {return Focusability::NOT_FOCUSABLE;}if (!visibleWindowFound) {return Focusability::NOT_VISIBLE;}return Focusability::OK;
}

updateFocusedWindow 方法

1. 会获取当前的窗口和要更新的窗口是否一致，是的话返回为空，表示不需要改变。
2. 在判断 newFocus 是否为空，不为空的则更新到 mFocusedWindowTokenByDisplay 数组，否则调用 errase 方法移除。丢失焦点。

std::optional<FocusResolver::FocusChanges> FocusResolver::updateFocusedWindow(int32_t displayId, const std::string& reason, const sp<IBinder>& newFocus,const std::string& tokenName) {// 获取之前的焦点窗口，如果一样则返回空。sp<IBinder> oldFocus = getFocusedWindowToken(displayId);if (newFocus == oldFocus) {return std::nullopt;}// 如果传入参数不为空，则更新到 mFocusedWindowTokenByDisplay 数据// 为空则调用 errase，移除。if (newFocus) {mFocusedWindowTokenByDisplay[displayId] = {tokenName, newFocus};} else {mFocusedWindowTokenByDisplay.errase(displayId);}return {{oldFocus, newFocus, displayId, reason}};
}

这样就完成了到 InputDispatcher的聚焦窗口更新。

4.2.2 请求窗口焦点

更新聚焦窗口，需要request数组有对应的请求，之前的 InputMonitor 遍历后更新窗口信息，又会调用 updateInputFocusRequest 方法。又会调用 requestFocus 方法

4.2.2.1 WMS通知到SurfaceFlinger

private void updateInputFocusRequest(InputConsumerImpl recentsAnimationInputConsumer) {...// mInputChannelToken是否为空可以判断是否聚焦输入final IBinder focusToken = focus != null ? focus.mInputChannelToken : null;if (focusToken == null) {mInputFocus = null;return;}...// 请求输入焦点requestFocus(focusToken, focus.getName());}

requestFocus 会打印请求的日志和 调用事务 Transaction 的 setFocusedWindow 方法。

private void requestFocus(IBinder focusToken, String windowName) {if (focusToken == mInputFocus) {return;}mInputFocus = focusToken;// 将对应焦点token设置到事务mInputTransaction.setFocusedWindow(mInputFocus, windowName, mDisplayId);// 请求日志EventLog.writeEvent(LOGTAG_INPUT_FOCUS, "Focus request " + windowName,"reason=UpdateInputWindows");ProtoLog.v(WM_DEBUG_FOCUS_LIGHT, "Focus requested for window=%s", windowName);}

而 setFocusedWindow 又会调用 nativeSetFocusedWindow 方法。

	public Transaction setFocusedWindow(@NonNull IBinder token, String windowName,int displayId) {nativeSetFocusedWindow(mNativeObject, token,  windowName,null /* focusedToken */, null /* focusedWindowName */, displayId);return this;}

nativeSetFocusedWindow 会创建对应的 FocusRequest 对象，并调用 setFocusedWindow 方法。

static void nativeSetFocusedWindow(JNIEnv* env, jclass clazz, jlong transactionObj,jobject toTokenObj, jstring windowNameJstr,jobject focusedTokenObj, jstring focusedWindowNameJstr,jint displayId) {auto transaction = reinterpret_cast<SurfaceComposerClient::Transaction*>(transactionObj);if (toTokenObj == NULL) return;// 转换对应的binder对象sp<IBinder> toToken(ibinderForJavaObject(env, toTokenObj));sp<IBinder> focusedToken;if (focusedTokenObj != NULL) {focusedToken = ibinderForJavaObject(env, focusedTokenObj);}// 创建 FocusRequest对象FocusRequest request;request.token = toToken;if (windowNameJstr != NULL) {ScopedUtfChars windowName(env, windowNameJstr);request.windowName = windowName.c_str();}request.focusedToken = focusedToken;if (focusedWindowNameJstr != NULL) {ScopedUtfChars focusedWindowName(env, focusedWindowNameJstr);request.focusedWindowName = focusedWindowName.c_str();}request.timestamp = systemTime(SYSTEM_TIME_MONOTONIC);request.displayId = displayId;// 调用 SurfaceComposerClient的setFocusedWindowtransaction->setFocusedWindow(request);
}

setFocusedWindow 方法又会将对应的request 放到 mInputWindowCommands的focusRequests 数组

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::setFocusedWindow(const FocusRequest& request) {// 添加 mInputWindowCommands 到  focusRequestsmInputWindowCommands.focusRequests.push_back(request);return *this;
}

跟上面一样 apply的时候 调用 SurfaceFlinger的 setTransactionState 时候 将 mInputWindowCommands 带过去给

status_t SurfaceComposerClient::Transaction::apply(bool synchronous) {...// 如果已经有则直接用，否则创建TransactionCompletedListenersp<IBinder> applyToken = mApplyToken? mApplyToken: IInterface::asBinder(TransactionCompletedListener::getIInstance());// 跨进程调用SurfaceFlinger的setTransactionState把composerStates作为参数// apply的时候 也会将 mInputWindowCommands 带过去sf->setTransactionState(mFrameTimelineInfo, composerStates, displayStates, flags, applyToken,mInputWindowCommands, mDesiredPresentTime, mIsAutoTimestamp,{} /*uncacheBuffer - only set in doUncacheBufferTransaction*/,hasListenerCallbacks, listenerCallbacks, mId);
}

4.2.2.2 SurfaceFlinger 到 InputDIspatcher

同样 inputWindowCommands 也会放在 TransactionState 中，并调用 queueTransaction 放进队列，最终也会调用到 updateInputFlinger,会遍历对应的数组，然后调用 InputFlinger 的setFocusedWindow方法，也即是 InputManager 的 setFocusedWindow

// 更新对应的
void SurfaceFlinger::updateInputFlinger() {ATRACE_CALL();if (!mInputFlinger) {return;}if (mVisibleRegionsDirty || mInputInfoChanged) {mInputInfoChanged = false;// 调用通知给inputDispatchernotifyWindowInfos();} ...// 开始遍历每一个焦点请求，调用 mInputFlingerfor (const auto& focusRequest : mInputWindowCommands.focusRequests) {mInputFlinger->setFocusedWindow(focusRequest);}mInputWindowCommands.clear();
}

class InputManager : public InputManagerInterface, public BnInputFlinger {
protected:~InputManager() override;

inputManger 又会调用 mDispatcher 的setFocusedWindow

binder::Status InputManager::setFocusedWindow(const FocusRequest& request) {mDispatcher->setFocusedWindow(request);return binder::Status::ok();
}

InputDispatcher里面 又会调用 FocusResolver的setFocusedWindow

void InputDispatcher::setFocusedWindow(const FocusRequest& request) {{ // acquire lockstd::scoped_lock _l(mLock);// 又会调用 FocusResolver的setFocusedWindowstd::optional<FocusResolver::FocusChanges> changes =mFocusResolver.setFocusedWindow(request, getWindowHandlesLocked(request.displayId));if (changes) {onFocusChangedLocked(*changes);}} // release lock// Wake up poll loop since it may need to make new input dispatching choices.mLooper->wake();
}

FocusResolver 的 setFocusedWindow 方法

1. 获取当前的窗口焦点**,如果和当前的一样，则直接返回空，表示无变化**
2. 如果请求聚焦已经是聚焦的的情况下进入，如果 跟当前的不一致，则用当前的即可，如果当前request是可用的话，则调用 updateFocusedWindow 更新,否则也返回空，抛弃该请求
3. 如果是可用的窗口，将对应的信息保存到 mFocusRequestByDisplay 中，在 setInputWindows 中可用
4. 再次判断是否可用，不可用则调用 updateFocusedWindow，否则传入null 丢失窗口，因为保存在 mFocusRequestByDisplay 中，等待下一次窗口状态改变请求。

std::optional<FocusResolver::FocusChanges> FocusResolver::setFocusedWindow(const FocusRequest& request, const std::vector<sp<WindowInfoHandle>>& windows) {const int32_t displayId = request.displayId;// 获取当前的窗口焦点const sp<IBinder> currentFocus = getFocusedWindowToken(displayId);if (currentFocus == request.token) {ALOGD_IF(DEBUG_FOCUS,"setFocusedWindow %s on display %" PRId32 " ignored, reason: already focused",request.windowName.c_str(), displayId);return std::nullopt;}// Handle conditional focus requests, i.e. requests that have a focused token. These requests// are not persistent. If the window is no longer focusable, we expect focus to go back to the// previously focused window.// 如果请求聚焦已经是聚焦的的情况下进入，(正常请求的时候，并还没聚焦)if (request.focusedToken) {// 跟当前的不一致，则用当前的即可if (currentFocus != request.focusedToken) {ALOGW("setFocusedWindow %s on display %" PRId32" ignored, reason: focusedToken %s is not focused",request.windowName.c_str(), displayId, request.focusedWindowName.c_str());return std::nullopt;}// 是否可聚焦,是的话更新窗口信息Focusability result = isTokenFocusable(request.token, windows);if (result == Focusability::OK) {return updateFocusedWindow(displayId, "setFocusedWindow with focus check",request.token, request.windowName);}// 已经不符合可聚焦了，无需设置 返回空指针ALOGW("setFocusedWindow %s on display %" PRId32 " ignored, reason: %s",request.windowName.c_str(), displayId, NamedEnum::string(result).c_str());return std::nullopt;}// 如果是可用的窗口，将对应的信息保存到 mFocusRequestByDisplay 中，在 setInputWindows 中可用Focusability result = isTokenFocusable(request.token, windows);// Update focus request. The focus resolver will always try to handle this request if there is// no focused window on the display.mFocusRequestByDisplay[displayId] = request;mLastFocusResultByDisplay[displayId] = result;// 如果结果是ok，更新对应的焦点窗口if (result == Focusability::OK) {return updateFocusedWindow(displayId, "setFocusedWindow", request.token,request.windowName);}// The requested window is not currently focusable. Wait for the window to become focusable// but remove focus from the current window so that input events can go into a pending queue// and be sent to the window when it becomes focused.// 当前request不是符合的窗口 传入null 设置当前为没焦点窗口，后续 窗口改变，通过 setInputWindows 可用return updateFocusedWindow(displayId, "Waiting for window because " + NamedEnum::string(result),nullptr);
}

这样就完成了 焦点的请求流程

5 打印 Focus entering" 或 Focus leaving

从上面流程 调用 setFocusedWindow 或者 setInputWindowsLocked 有改变后就会调用 onFocusChangedLocked 方法。

	// 判断是否改变窗口焦点std::optional<FocusResolver::FocusChanges> changes =mFocusResolver.setInputWindows(displayId, windowHandles);if (changes) {onFocusChangedLocked(*changes);}

		// 又会调用 FocusResolver的setFocusedWindowstd::optional<FocusResolver::FocusChanges> changes =mFocusResolver.setFocusedWindow(request, getWindowHandlesLocked(request.displayId));if (changes) {onFocusChangedLocked(*changes);}

onFocusChangedLocked 会根据传进来的 oldFocus 和 newFocus,分别调用 enqueueFocusEventLocked 方法，发送 focus的event事件

void InputDispatcher::onFocusChangedLocked(const FocusResolver::FocusChanges& changes) {// 如果有改变，分别调用 旧焦点和新焦点，传入 enqueueFocusEventLocked 方法// 旧的if (changes.oldFocus) {std::shared_ptr<InputChannel> focusedInputChannel = getInputChannelLocked(changes.oldFocus);if (focusedInputChannel) {CancelationOptions options(CancelationOptions::CANCEL_NON_POINTER_EVENTS,"focus left window");synthesizeCancelationEventsForInputChannelLocked(focusedInputChannel, options);enqueueFocusEventLocked(changes.oldFocus, false /*hasFocus*/, changes.reason);}}// 新的if (changes.newFocus) {enqueueFocusEventLocked(changes.newFocus, true /*hasFocus*/, changes.reason);}...
}

构造对应event type为 EventEntry::Type::FOCUS 的事件，插入到 mInboundQueue 即 IQ队列

void InputDispatcher::enqueueFocusEventLocked(const sp<IBinder>& windowToken, bool hasFocus,const std::string& reason) {if (mPendingEvent != nullptr) {// Move the pending event to the front of the queue. This will give the chance// for the pending event to get dispatched to the newly focused windowmInboundQueue.push_front(mPendingEvent);mPendingEvent = nullptr;}std::unique_ptr<FocusEntry> focusEntry =std::make_unique<FocusEntry>(mIdGenerator.nextId(), now(), windowToken, hasFocus,reason);// This event should go to the front of the queue, but behind all other focus events// Find the last focus event, and insert right after itstd::deque<std::shared_ptr<EventEntry>>::reverse_iterator it =std::find_if(mInboundQueue.rbegin(), mInboundQueue.rend(),[](const std::shared_ptr<EventEntry>& event) {return event->type == EventEntry::Type::FOCUS;});// Maintain the order of focus events. Insert the entry after all other focus events.mInboundQueue.insert(it.base(), std::move(focusEntry));
}

下一次循环唤醒的时候，就会执行 dispatchOnce 方法。和之前一样队列有东西 就会调用 dispatchOnceInnerLocked。该方法会从 IQ队列获取，判断到类型为 EventEntry::Type::FOCUS 就会调用 dispatchFocusLocked 方法。

void InputDispatcher::dispatchOnceInnerLocked(nsecs_t* nextWakeupTime) {switch (mPendingEvent->type) {case EventEntry::Type::FOCUS: {std::shared_ptr<FocusEntry> typedEntry =std::static_pointer_cast<FocusEntry>(mPendingEvent);dispatchFocusLocked(currentTime, typedEntry);done = true;dropReason = DropReason::NOT_DROPPED; // focus events are never droppedbreak;}}
}

dispatchFocusLocked 就会打印对应的窗口离开和进入日志。

void InputDispatcher::dispatchFocusLocked(nsecs_t currentTime, std::shared_ptr<FocusEntry> entry) {std::shared_ptr<InputChannel> channel = getInputChannelLocked(entry->connectionToken);if (channel == nullptr) {return; // Window has gone away}InputTarget target;target.inputChannel = channel;target.flags = InputTarget::FLAG_DISPATCH_AS_IS;entry->dispatchInProgress = true;// 打印对应的信息std::string message = std::string("Focus ") + (entry->hasFocus ? "entering " : "leaving ") +channel->getName();std::string reason = std::string("reason=").append(entry->reason);android_log_event_list(LOGTAG_INPUT_FOCUS) << message << reason << LOG_ID_EVENTS;dispatchEventLocked(currentTime, entry, {target});
}

3 堆栈

3.1 setFocusApp

启动App堆栈

setFocusedApp:3655, DisplayContent (com.android.server.wm)
setResumedActivityUncheckLocked:4539, ActivityTaskManagerService (com.android.server.wm)
onActivityStateChanged:579, TaskFragment (com.android.server.wm)
setState:5163, ActivityRecord (com.android.server.wm)
minimalResumeActivityLocked:4783, Task (com.android.server.wm)
realStartActivityLocked:938, ActivityTaskSupervisor (com.android.server.wm)
startSpecificActivity:1005, ActivityTaskSupervisor (com.android.server.wm)
resumeTopActivity:1348, TaskFragment (com.android.server.wm)
resumeTopActivityInnerLocked:5037, Task (com.android.server.wm)
resumeTopActivityUncheckedLocked:4971, Task (com.android.server.wm)
resumeFocusedTasksTopActivities:2398, RootWindowContainer (com.android.server.wm)
resumeFocusedTasksTopActivities:2383, RootWindowContainer (com.android.server.wm)
completePause:1608, TaskFragment (com.android.server.wm)
activityPaused:5734, ActivityRecord (com.android.server.wm)
activityPaused:176, ActivityClientController (com.android.server.wm)
onTransact:548, IActivityClientController$Stub (android.app)
onTransact:121, ActivityClientController (com.android.server.wm)
execTransactInternal:1179, Binder (android.os)
execTransact:1143, Binder (android.os)

按home建，回退的时候

setFocusedApp:3655, DisplayContent (com.android.server.wm)
setResumedActivityUncheckLocked:4539, ActivityTaskManagerService (com.android.server.wm)
moveFocusableActivityToTop:3001, ActivityRecord (com.android.server.wm)
moveTaskToFront:5581, Task (com.android.server.wm)
setTargetRootTaskIfNeeded:2733, ActivityStarter (com.android.server.wm)
recycleTask:2062, ActivityStarter (com.android.server.wm)
startActivityInner:1762, ActivityStarter (com.android.server.wm)
startActivityUnchecked:1594, ActivityStarter (com.android.server.wm)
executeRequest:1195, ActivityStarter (com.android.server.wm)
execute:674, ActivityStarter (com.android.server.wm)
startHomeActivity:179, ActivityStartController (com.android.server.wm)
startHomeOnTaskDisplayArea:1604, RootWindowContainer (com.android.server.wm)
lambda$startHomeOnDisplay$12$RootWindowContainer:1545, RootWindowContainer (com.android.server.wm)
apply:-1, RootWindowContainer$$ExternalSyntheticLambda10 (com.android.server.wm)
reduceOnAllTaskDisplayAreas:554, TaskDisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:2091, WindowContainer (com.android.server.wm)
startHomeOnDisplay:1544, RootWindowContainer (com.android.server.wm)
startHomeOnDisplay:5839, ActivityTaskManagerService$LocalService (com.android.server.wm)
startDockOrHome:5106, PhoneWindowManager (com.android.server.policy)
startDockOrHome:5111, PhoneWindowManager (com.android.server.policy)
launchHomeFromHotKey:3254, PhoneWindowManager (com.android.server.policy)
launchHomeFromHotKey:3211, PhoneWindowManager (com.android.server.policy)
handleShortPressOnHome:1351, PhoneWindowManager (com.android.server.policy)
access$2200:240, PhoneWindowManager (com.android.server.policy)
lambda$handleHomeButton$0$PhoneWindowManager$DisplayHomeButtonHandler:1501, PhoneWindowManager$DisplayHomeButtonHandler (com.android.server.policy)
run:-1, PhoneWindowManager$DisplayHomeButtonHandler$$ExternalSyntheticLambda0 (com.android.server.policy)
handleCallback:938, Handler (android.os)
dispatchMessage:99, Handler (android.os)
loopOnce:201, Looper (android.os)
loop:288, Looper (android.os)
run:67, HandlerThread (android.os)
run:44, ServiceThread (com.android.server)
run:45, UiThread (com.android.server)

setFocusedApp:3655, DisplayContent (com.android.server.wm)
setResumedActivityUncheckLocked:4539, ActivityTaskManagerService (com.android.server.wm)
onActivityStateChanged:579, TaskFragment (com.android.server.wm)
setState:5163, ActivityRecord (com.android.server.wm)
resumeTopActivity:1227, TaskFragment (com.android.server.wm)
resumeTopActivityInnerLocked:5037, Task (com.android.server.wm)
resumeTopActivityUncheckedLocked:4971, Task (com.android.server.wm)
resumeTopActivityUncheckedLocked:4985, Task (com.android.server.wm)
resumeFocusedTasksTopActivities:2398, RootWindowContainer (com.android.server.wm)
resumeTargetRootTaskIfNeeded:2788, ActivityStarter (com.android.server.wm)
recycleTask:2113, ActivityStarter (com.android.server.wm)
startActivityInner:1762, ActivityStarter (com.android.server.wm)
startActivityUnchecked:1594, ActivityStarter (com.android.server.wm)
executeRequest:1195, ActivityStarter (com.android.server.wm)
execute:674, ActivityStarter (com.android.server.wm)
startHomeActivity:179, ActivityStartController (com.android.server.wm)
startHomeOnTaskDisplayArea:1604, RootWindowContainer (com.android.server.wm)
lambda$startHomeOnDisplay$12$RootWindowContainer:1545, RootWindowContainer (com.android.server.wm)
apply:-1, RootWindowContainer$$ExternalSyntheticLambda10 (com.android.server.wm)
reduceOnAllTaskDisplayAreas:554, TaskDisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:392, DisplayArea (com.android.server.wm)
reduceOnAllTaskDisplayAreas:2091, WindowContainer (com.android.server.wm)
startHomeOnDisplay:1544, RootWindowContainer (com.android.server.wm)
startHomeOnDisplay:5839, ActivityTaskManagerService$LocalService (com.android.server.wm)
startDockOrHome:5106, PhoneWindowManager (com.android.server.policy)
startDockOrHome:5111, PhoneWindowManager (com.android.server.policy)
launchHomeFromHotKey:3254, PhoneWindowManager (com.android.server.policy)
launchHomeFromHotKey:3211, PhoneWindowManager (com.android.server.policy)
handleShortPressOnHome:1351, PhoneWindowManager (com.android.server.policy)
access$2200:240, PhoneWindowManager (com.android.server.policy)
lambda$handleHomeButton$0$PhoneWindowManager$DisplayHomeButtonHandler:1501, PhoneWindowManager$DisplayHomeButtonHandler (com.android.server.policy)
run:-1, PhoneWindowManager$DisplayHomeButtonHandler$$ExternalSyntheticLambda0 (com.android.server.policy)
handleCallback:938, Handler (android.os)
dispatchMessage:99, Handler (android.os)
loopOnce:201, Looper (android.os)
loop:288, Looper (android.os)
run:67, HandlerThread (android.os)
run:44, ServiceThread (com.android.server)
run:45, UiThread (com.android.server)

后退键

setFocusedApp:3655, DisplayContent (com.android.server.wm)
setResumedActivityUncheckLocked:4539, ActivityTaskManagerService (com.android.server.wm)
moveFocusableActivityToTop:3001, ActivityRecord (com.android.server.wm)
moveHomeActivityToTop:1880, TaskDisplayArea (com.android.server.wm)
adjustFocusToNextFocusableTask:2484, Task (com.android.server.wm)
finishIfPossible:3144, ActivityRecord (com.android.server.wm)
finishActivity:451, ActivityClientController (com.android.server.wm)
onTransact:688, IActivityClientController$Stub (android.app)
onTransact:121, ActivityClientController (com.android.server.wm)
execTransactInternal:1184, Binder (android.os)
execTransact:1143, Binder (android.os)
