Allegro23.1新功能之4K显示器页面显示不全如何解决操作指导

news 来源：原创 2025/7/28 2:48:47

Allegro23.1新功能之4K显示器页面显示不全如何解决操作指导

Allegro升级到了23.1的时候，可能会出现界面显示不全的情况，如下图

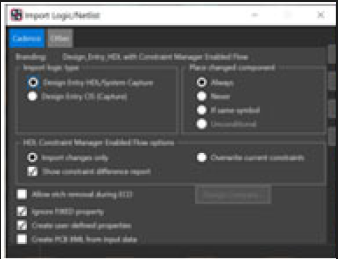

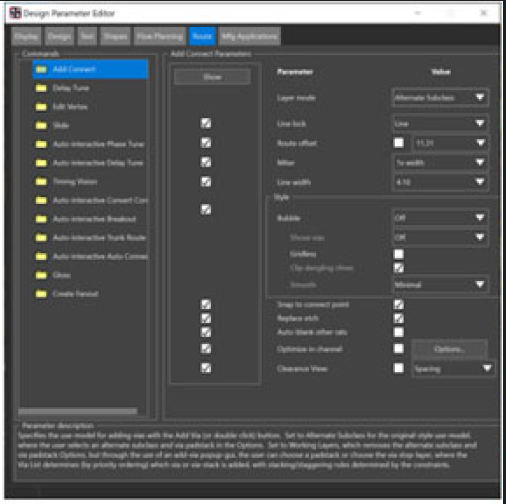

是因为4K高清显示器的原因导致的

如何解决，具体操作如下

我的电脑，右键选择属性

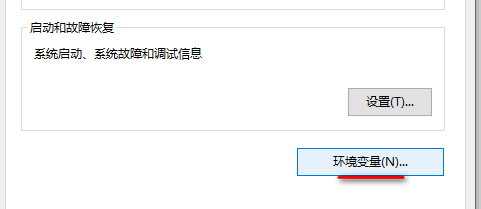

点击高级系统设置

点击环境变量

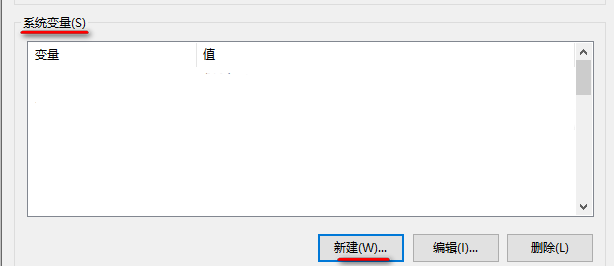

系统变量，点击新建

添加系统变量

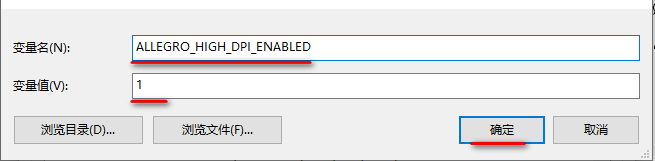

变量名：ALLEGRO_HIGH_DPI_ENABLED

变量值：1

点击确定

重启软件，界面就能完整显示了

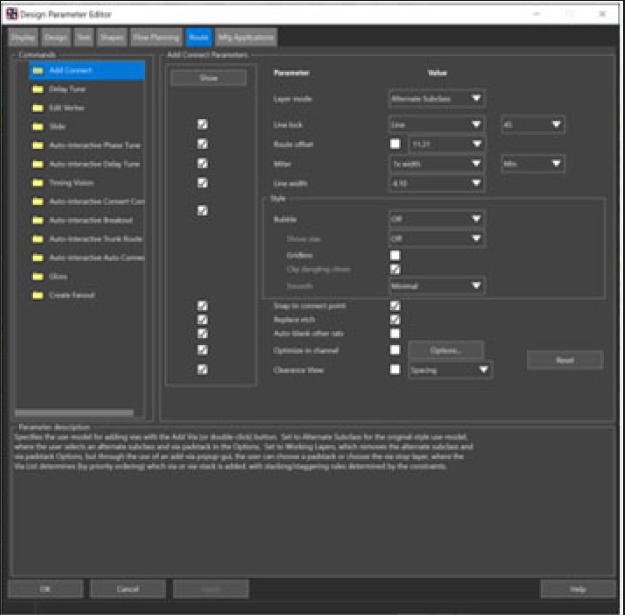

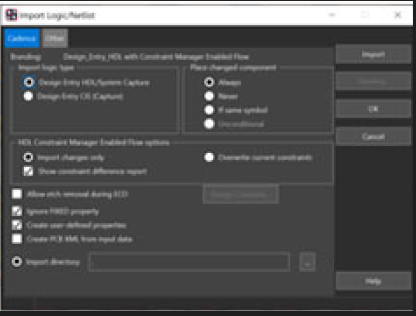

This section is describe what the function allegro have ,helpfully could let user know more about allegro

Allegro Design and Analysis includes design authoring

PCB layout and Library and Design Data Management

With. It can ensure the end-to-end design of PCB with high quality and efficiency

Realize smooth data transfer between tools, shorten PCB design cycle, and shorten product

Market time

1. Design authoring

Provide a flexible logic constraint driven flow, management design rules, network hierarchy,

Bus and differential pair.

1.1.1 Main features and functions

Through hierarchical and design "derivation" function, improve the original of complex design

Map editing efficiency.

Powerful CIS helps users quickly determine part selection and accelerate design flow

And reduce project cost.

1.2.1 Main features

Schematic designers and PCB design engineers can work in parallel.

Advanced design efficiency improves functions, such as copying the previous schematic design Select multiplexing with or by page.

Seamless integration into pre simulation and signal analysis.

1.2.2 Main Functions

Provide schematic diagram and HDL/Verilog design input.

Assign and manage high-speed design rules.

Support netclasses, buses, extension networks and differential pairs.

Powerful library creation and management functions.

Allows synchronization of logical and physical designs.

Realize multi-user parallel development and version control.

Pre integration simulation and signal analysis.

Support customizable user interface and enterprise customization development.

1.3 o Allegro n Design Publisher

1.3.1 Main Features and Functions

Allows you to share designs with others using PDF files.

The entire design is represented in a single, compact PDF format.

Improve design readability.

Provide content control - users can select the content to be published.

1.4 Allegro A FPGA m System Planner

1 1.4.1 Main features and functions

Complete and scalable FPGA/PCB collaborative design technology for ideal "

Design and correct "pin assignment.

Scalable FPGA/PCB protocol from OrCAD Capture to Allegro GXL

Same as the design solution.

Shorten the optimization pin allocation time and accelerate the PCB design cycle.

2. B PCB layout

It provides expandable and easy to use PCB design (including RFPCB)

Then drive PCB design solution. It also includes innovative new automatic delivery

Mutual technology can effectively improve the wiring of high-speed interfaces; Apply EDMD (IDX) mode, which makes ECAD/MCAD work smoothly; Execute modern industry standard IPC-2581,

Ensure that the design data is simply and high-quality transferred to the downstream link.

2.1.1 Main features

Speed up the design process from layout, wiring to manufacturing.

Including powerful functions, such as design zoning, RF design functions and global design rules Stroke.

It can improve productivity and help engineers to quickly move up to mass production* g- M4 G8 |6 }9 k7 G

2.1.2 Main Functions

Provide scalable full function PCB design solutions.

Enable constraint driven design processes to reduce design iterations.

Integrated DesignTrueDFM technology provides real-time DFM inspection.

Provide a single, consistent context for management.

Minimize design iterations and reduce overall Flex and rigid flexible design

Cost, and has advanced rigid and flexible design functions.

Realize dynamic concurrent team design capability, shorten design cycle, and greatly reduce

Time spent in routing, winding and optimization.

Provide integrated RF/analog design and mixed signal design environment.

Provides interactive layout and component placement.

Provide design partitions for large distributed development teams.

Realize real-time, interactive push editing of routing.

It is allowed to use dynamic copper sheet technology to edit and update in real time.

Manage netscheduling, timing, crosstalk, routing by designated layer and area Bundle.

Provide proven PCB routing technology for automatic routing.

Realize hierarchical route planning and accelerate the completion of design.

Shorten interconnect planning and cabling time for high-speed interface intensive design.

Provide a comprehensive, powerful and easy-to-use tool suite to help designers

Efficient and successful manufacturing switch: DFM Checker is aimed at the company/manufacturer

Review the specific rules of manufacturing partners; Used to reduce manufacturing and assembly documents

The document editing time of the file can reach 70%; The panel editor will assemble the panel design

The intention is communicated to the manufacturing partners; Output design data in various manufacturing formats.

3. y Library d and n Design a Data Management

For cost-effective projects that need to be delivered on time, it is easy to obtain

Current component information and design data are critical. library and design

Data management is a collaborative control of the company's internal cooperation and design process

Advanced functions are provided. As the design cycle shortens and the complexity increases, you

There must be a design approach that increases predictability and accelerates design turnaround.

3.1.1 Main features

Reduce time and optimize library development related resources.

Improve the precision in the process of parts manufacturing. Q9 b

3.1.2 Main functions

Reduce time and optimize library development and validation through integrated creation and validation processes Certification related resources.

A simple method to develop devices with large pin count can shorten the time from a few days to A few minutes.

Powerful graphic editor supports custom shape and spreadsheet import for

Schematic symbols are created to ensure the reliability and integrity of data.

Supports the import of part information from general industry formats, allowing rapid creation and Update part information.

Common library development environment supporting schematic tools from different suppliers, including Mentor Graphics Design Architect and Mentor Graphics Viewdraw。

Built in version management is provided through metadata support.

Reduce errors through real-time and batch validation of part data.

And Cadence OrCAD® Capture, Allegro PCB Design Editor

HDL, Allegro Package Designer and Allegro EDM are tightly integrated.

3.2.1 Main features

Provide a common library and design data interface for all members of the design team.

Expand access and visibility to component information, design data, and tools.

Simplify part selection through parametric component browsing.

3.2.2 Main Functions

Eliminate redundant component inputs and input errors.

Reduce the number of Engineering Change Orders (ECOs) for different or obsolete libraries.

Automatically notify engineers of changes to standard parts in active/archived designs.

List of parts to control bulk procurement and compliance.

3.3.1 Main features

Create new standards compliant libraries in a short time.

Realize the dream of unified component library by synchronizing your ECAD and MCAD libraries.

Quickly and easily rebuild libraries for different technologies.

3.3.2 Main Functions

Automatically generate encapsulation from templates and existing 3D models.

The rule and template editor can be customized.

Local support for MCAD3D models.

Verify ECAD footprints through 3D models to improve the accuracy of the library.

Use automatic search and coordinate system alignment to expand from the repository with 3D mode

The existing ECAD library for the.

Support to copy PTCCreo, Siemens NX MCAD for other MCAD suppliers

Library and STEP.

Reuse existing library models in future design to reduce design time.

Create different libraries for different standards (flex, HDI and different welding processes)

It only takes a few days, not months.

Ensure the accuracy and integrity of the library through automatic inspection and verification
