Swagger2 自定义排序

分享一下Spring+Swagger2在线文档自定义排序的代码。

这里参考swagger2 接口排序_swagger接口排序-CSDN博客提供的思路，并在此基础上做了优化。

1、引用pom信息

        <!--swagger依赖(pojo注解)--><dependency><groupId>io.swagger</groupId><artifactId>swagger-annotations</artifactId><version>1.5.20</version></dependency><!--生成后端开发文档--><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId><version>2.7.0</version><exclusions><exclusion><artifactId>jackson-annotations</artifactId><groupId>com.fasterxml.jackson.core</groupId></exclusion></exclusions></dependency><!--第三方生成后端开发文档页面UI--><dependency><groupId>com.github.xiaoymin</groupId><artifactId>swagger-bootstrap-ui</artifactId><version>1.9.6</version></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></dependency>

2、未排序效果

现有3个接口模块

@Api(tags = "用户：用户相关接口")
@RestController
@RequestMapping("/system/user")
public class UserController{/** 列表 */@ApiOperation(value = "列表", notes = "")@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}@ApiOperation(value = "新增用户", notes = "")@ApiImplicitParams({})@PostMapping("/addUser")public ReturnMap addUser(@RequestBody User user, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

@Api(tags = "系统：字典相关接口")
@RestController
@RequestMapping("/system/dict")
public class DictController{/** 列表 */@ApiOperation(value = "列表", notes = "")@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}//更新角色@ApiOperation(value = "新增字典", notes = "")@ApiImplicitParams({})@PostMapping("/addDict")public ReturnMap addDict(@RequestBody Dict dict, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

@Api(tags = "系统：字典类型相关接口")
@RestController
@RequestMapping("/system/dictType")
public class DictTypeController{/** 列表 */@ApiOperation(value = "列表", notes = "")@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}//新增角色@ApiOperation(value = "新增字典类型", notes = "")@ApiImplicitParams({})@PostMapping("/addDictType")public ReturnMap addDictType(@RequestBody DictType dictType, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

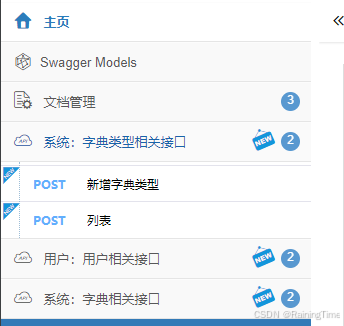

Swagger2显示如下：

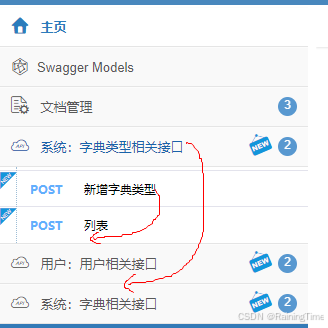

期望展示顺序如下：

3、自定义排序改造

3.1 添加配置类Swagger2CustomSort并继承ServiceModelToSwagger2MapperImpl

API模块的排序，使用tag名称排序，在名称前加上前缀0X0X_##_，即在名称就加上"0101_##_"、"0102_##_"、"0201_##_"、"0202_##_"。但为了页面展示效果，在排序后把前缀进行处理。

接口的排序，使用@ApiOperation的position实现。

import com.google.common.base.Optional;
import com.google.common.collect.Maps;
import com.google.common.collect.Multimap;
import io.swagger.models.Operation;
import io.swagger.models.Path;
import io.swagger.models.Tag;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Primary;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;
import springfox.documentation.builders.BuilderDefaults;
import springfox.documentation.service.ApiDescription;
import springfox.documentation.service.ApiListing;
import springfox.documentation.swagger2.mappers.ServiceModelToSwagger2MapperImpl;
import springfox.documentation.swagger2.mappers.VendorExtensionsMapper;import java.util.*;/*** 自定义排序** 经过代码跟踪分析，总结如下：* 1.API模块的排序是依据tag 的名称进行的，虽然@Api里保留有position属性，但是已经完全弃用。* 2.接口的排序也是依据@ApiOperation里value的值进行的，position属性虽然废弃，但是仍可以进行设置取值。** 解决办法如下：* 1.API模块的排序，使用tag名称排序，在名称前加上前缀0X0X_##_，即在名称就加上"0101_##_"、"0102_##_"、"0201_##_"、"0202_##_"。但为了页面展示效果，在排序后把前缀进行处理;* 2.接口的排序，使用@ApiOperation的position实现。** @author https://blog.csdn.net/jinhf10/article/details/103684895*/
@Primary //同一个接口，可能会有几种不同的实现类，而默认只会采取其中一种的情况下
@Component("ServiceModelToSwagger2Mapper")
@Order(Ordered.HIGHEST_PRECEDENCE)
public class Swagger2CustomSort extends ServiceModelToSwagger2MapperImpl {//API接口排序序号识别private static final String API_SORT_PREFIX = "_##_";@Autowiredprivate VendorExtensionsMapper vendorExtensionsMapper;protected Map<String, Path> mapApiListings(Multimap<String, ApiListing> apiListings) {Map<String, Path> paths = Maps.newTreeMap();Iterator var3 = apiListings.values().iterator();while (var3.hasNext()) {ApiListing each = (ApiListing) var3.next();List<ApiDescription> list = each.getApis();Iterator var5 = each.getApis().iterator();while (var5.hasNext()) {ApiDescription api = (ApiDescription) var5.next();String position = api.getOperations().get(0).getPosition()+"";while(position.length() < 32){position = "0"+position;}paths.put(position + "-" + api.getPath(), this.mapOperations(api, Optional.fromNullable(paths.get(api.getPath()))));}}Map<String, Path> paths2 = new LinkedHashMap<>();for (String key : paths.keySet()) {paths2.put(key.substring(key.indexOf("-") + 1), paths.get(key));}return paths2;}private Path mapOperations(ApiDescription api, Optional<Path> existingPath) {Path path = (Path) existingPath.or(new Path());Iterator var4 = BuilderDefaults.nullToEmptyList(api.getOperations()).iterator();while (var4.hasNext()) {springfox.documentation.service.Operation each = (springfox.documentation.service.Operation) var4.next();Operation operation = this.mapOperation(each);path.set(each.getMethod().toString().toLowerCase(), operation);}return path;}protected Operation mapOperation(springfox.documentation.service.Operation from) {if (from == null) {return null;} else {Operation operation = new Operation();operation.setSecurity(this.mapAuthorizations(from.getSecurityReferences()));operation.setVendorExtensions(this.vendorExtensionsMapper.mapExtensions(from.getVendorExtensions()));operation.setDescription(from.getNotes());String position = from.getPosition()+"";while(position.length() < 32){position = "0"+position;}operation.setOperationId(position + from.getUniqueId());operation.setResponses(this.mapResponseMessages(from.getResponseMessages()));operation.setSchemes(this.stringSetToSchemeList(from.getProtocol()));Set<String> set = from.getTags();if (set != null) {Iterator<String> it= set.iterator();Set<String> rset= new HashSet<>();while (it.hasNext()){String tagName= it.next();if(API_SORT_PREFIX!=null && !"".equals(API_SORT_PREFIX)){if(tagName!=null && !"".equals(tagName) && tagName.indexOf(API_SORT_PREFIX)>=0){rset.add(tagName.substring(tagName.indexOf(API_SORT_PREFIX) + API_SORT_PREFIX.length()));}else{rset.add(tagName);}}else{rset.add(tagName);}}operation.setTags(new ArrayList(rset));} else {operation.setTags((List) null);}operation.setSummary(from.getSummary());Set<String> set1 = from.getConsumes();if (set1 != null) {operation.setConsumes(new ArrayList(set1));} else {operation.setConsumes((List) null);}Set<String> set2 = from.getProduces();if (set2 != null) {operation.setProduces(new ArrayList(set2));} else {operation.setProduces((List) null);}operation.setParameters(this.parameterListToParameterList(from.getParameters()));if (from.getDeprecated() != null) {operation.setDeprecated(Boolean.parseBoolean(from.getDeprecated()));}return operation;}}@Overrideprotected List<Tag> tagSetToTagList(Set<springfox.documentation.service.Tag> set) {List<Tag> tlist = super.tagSetToTagList(set);Collections.sort(tlist, new Comparator<Tag>() {@Overridepublic int compare(Tag t1, Tag t2) {return t1.getName().compareTo(t2.getName());}});List<Tag> result = new LinkedList<>();Iterator<Tag> it = tlist.iterator();while (it.hasNext()) {Tag tag = it.next();Tag tt = new Tag();if(API_SORT_PREFIX!=null && !"".equals(API_SORT_PREFIX)){if(tag.getName()!=null && !"".equals(tag.getName()) && tag.getName().indexOf(API_SORT_PREFIX)>=0){tt.setName(tag.getName().substring(tag.getName().indexOf(API_SORT_PREFIX) + API_SORT_PREFIX.length()));}else{tt.setName(tag.getName());}}else{tt.setName(tag.getName());}tt.setDescription(tag.getDescription());result.add(tt);}return result;}
}

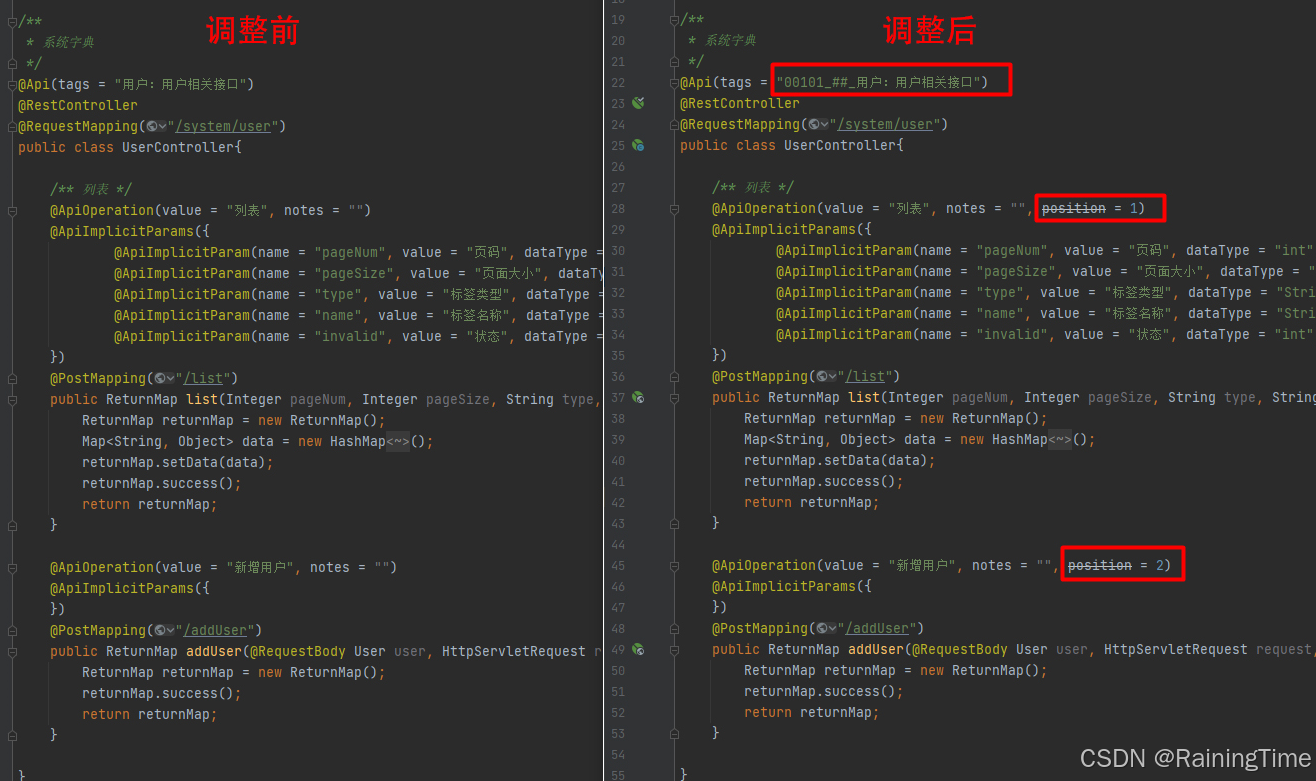

3.2 接口Controller调整

做如下调整：

具体代码如下：

@Api(tags = "00101_##_用户：用户相关接口")
@RestController
@RequestMapping("/system/user")
public class UserController{/** 列表 */@ApiOperation(value = "列表", notes = "", position = 1)@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}@ApiOperation(value = "新增用户", notes = "", position = 2)@ApiImplicitParams({})@PostMapping("/addUser")public ReturnMap addUser(@RequestBody User user, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

@Api(tags = "00202_##_系统：字典相关接口")
@RestController
@RequestMapping("/system/dict")
public class DictController{/** 列表 */@ApiOperation(value = "列表", notes = "", position = 1)@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}//更新角色@ApiOperation(value = "新增字典", notes = "", position = 2)@ApiImplicitParams({})@PostMapping("/addDict")public ReturnMap addDict(@RequestBody Dict dict, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

@Api(tags = "00201_##_系统：字典类型相关接口")
@RestController
@RequestMapping("/system/dictType")
public class DictTypeController{/** 列表 */@ApiOperation(value = "列表", notes = "", position = 1)@ApiImplicitParams({@ApiImplicitParam(name = "pageNum", value = "页码", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "pageSize", value = "页面大小", dataType = "int", paramType = "query"),@ApiImplicitParam(name = "type", value = "标签类型", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "name", value = "标签名称", dataType = "String", paramType = "query"),@ApiImplicitParam(name = "invalid", value = "状态", dataType = "int", paramType = "query"),})@PostMapping("/list")public ReturnMap list(Integer pageNum, Integer pageSize, String type, String name, Integer invalid, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();Map<String, Object> data = new HashMap<String, Object>();returnMap.setData(data);returnMap.success();return returnMap;}//新增角色@ApiOperation(value = "新增字典类型", notes = "", position = 2)@ApiImplicitParams({})@PostMapping("/addDictType")public ReturnMap addDictType(@RequestBody DictType dictType, HttpServletRequest request, HttpServletResponse response){ReturnMap returnMap = new ReturnMap();returnMap.success();return returnMap;}}

4、自定义排序效果

重新编译运行后，Swagger2显示如下：
