【瑞萨RA0E1开发板评测报告】IIC OLED 测试

基于前面关于瑞萨 e² studio 开发软件的使用，以及工程测试基础，本文进一步探索实现硬件 IIC OLED 的文字和图片显示。

1 背景

简单介绍 IIC 通信协议、OLED 显示原理、SS1306 驱动 IC 等。

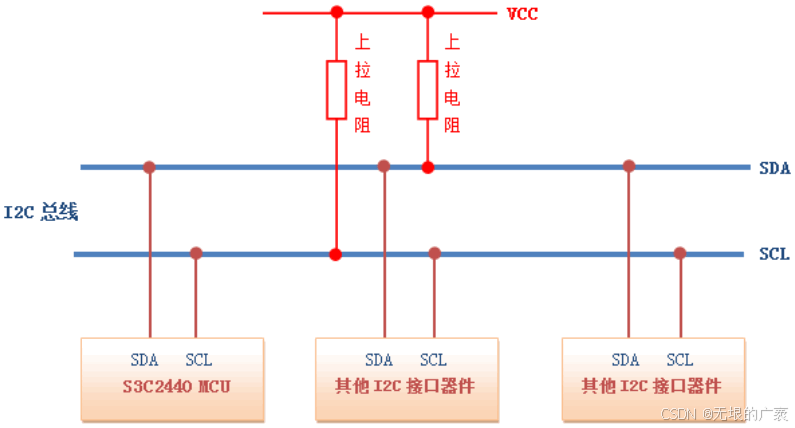

IIC 通信协议

IIC (Inter-Integrated Circuit) 即集成电路总线。它是一种串行通信总线，使用多主从架构，如图所示。

在这里插入图片描述

飞利浦 Philips 公司于二十世纪八十年代初设计，最初是为了让主板、嵌入式系统或手机用以连接低速周边设备。

自2006年10月1日起，使用 IIC 协议不需要支付专利费，但制造商仍然需要付费以获取 IIC 从属设备地址。

IIC 通信协议的功能特点如下

只需要两条总线线路
没有严格的波特率要求，例如使用 RS232，主站生成总线时钟
所有组件之间存在简单的主/从关系连接到总线的每个设备都可通过唯一地址进行软件寻址
IIC 是真正的多主总线，提供仲裁和冲突检测

IIC 使用两根线进行通信：一根时钟线 SCL，一根数据线 SDA。

IIC 将 SCL 处于高时 SDA 拉低的动作作为开始信号，SCL 处于高时 SDA 拉高的动作作为结束信号；

传输数据时，SDA 在 SCL 低电平时改变数据，在 SCL 高电平时保持数据，每个 SCL 脉冲的高电平传递 1 位数据。

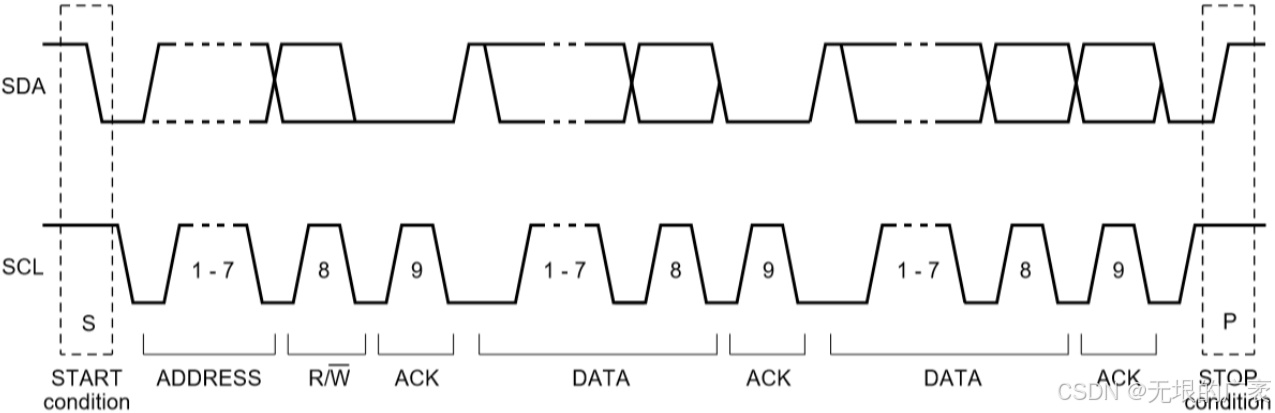

7-bit 设备的数据传输

在这里插入图片描述

软件模拟 IIC 一般是用 GPIO 管脚，软件控制管脚高低电平输出，以模拟 IIC 通信波形。
硬件 IIC 对应芯片上的 IIC 外设，有相应 IIC 驱动电路，其所使用的 IIC 管脚也是专用。

软硬件 IIC 对比

硬件 IIC 效率远高于软件 IIC，软件 IIC 不受管脚限制，接口更灵活；
软件模拟 IIC 是通过 GPIO 软件模拟寄存器的工作方式，而硬件 IIC 是直接调用内部寄存器进行配置；
性能方面，硬件 IIC 由于由专门的硬件模块处理，减少了软件干预，因此具有更高的可靠性和稳定性；
硬件 IIC 模块可以在后台自动处理数据传输，释放 CPU 资源，因此CPU占用率更低；
软件 IIC 的代码量多于硬件 IIC，相比之下更为复杂；
硬件 IIC 通常还支持更高的通信速率。

OLED 显示原理

OLED (Organic Electroluminescence Display) 即有机发光二极管。

在这里插入图片描述

OLED 由于同时具备自发光，不需背光源、对比度高、厚度薄、视角广、反应速度快、可用于挠曲性面板、使用温度范围广、构造及制程较简单等优异特性，被认为是下一代的平面显示器新兴应用技术。

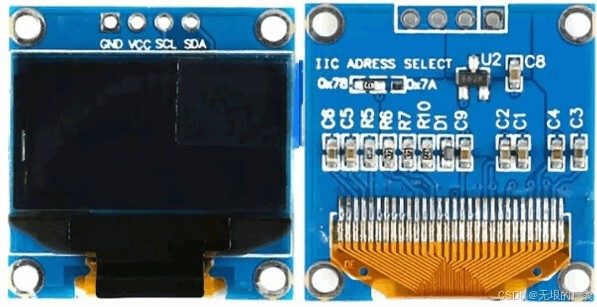

0.96英寸OLED基本参数

工作电压：3.3~5V（内置 3.3V LDO，IIC 通信接口电平是 3.3V 的）
像素点阵规模：128*64（128 列，64 行，共 8192 颗 LED）
驱动 IC：SSD1306

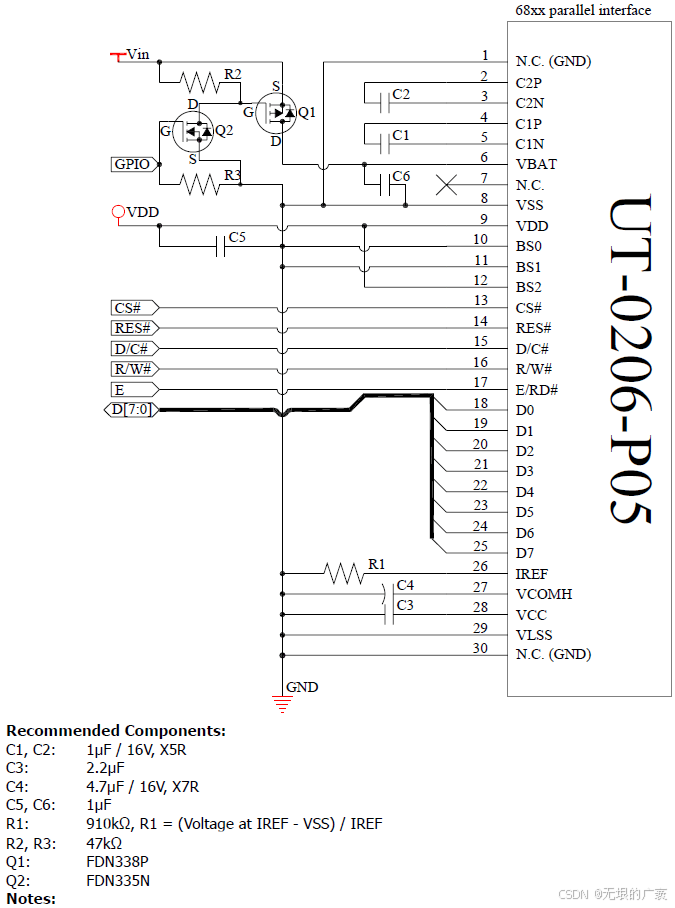

OLED 模块电路

在这里插入图片描述

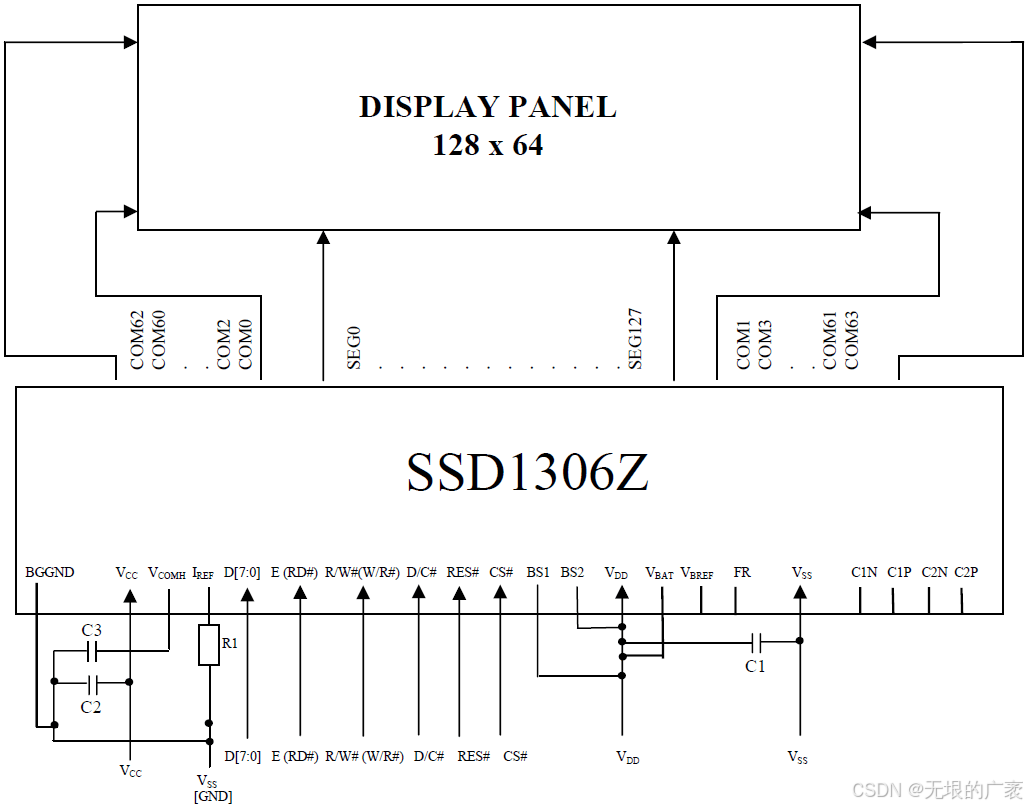

SSD1306 驱动电路

在这里插入图片描述

详见：oled i2c , SSD1306 Datasheet .

2 方法说明

1.使用 e2 studio 建立硬件 IIC 框架；

2.编译 OLED 相关主函数，特别是初始化、打开 IIC、写入 IIC 等部分，或移植相关函数，并进行修改；

3.运行程序，构建项目，调试项目。

3 操作说明

1.新建项目；

2.引脚 Pins 定义；

3.新建Stacks - IIC master，并修改属性，定义地址 0x3C ；

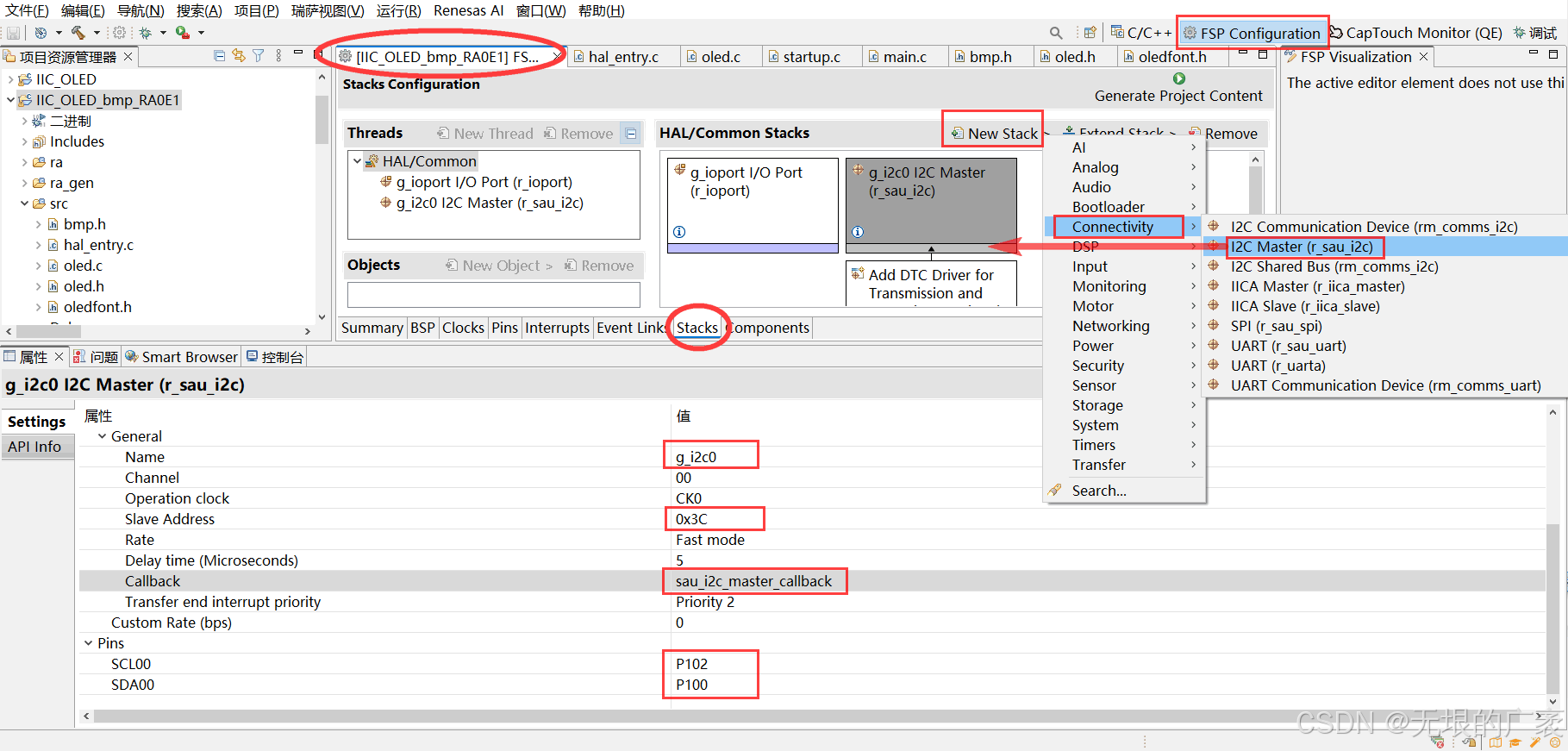

在这里插入图片描述

4.移植并修改 oled.c 、 oled.h 、 oledfont.h 、 bmp.h 文件；

5.构建主函数 hal_entry.c，调试项目。

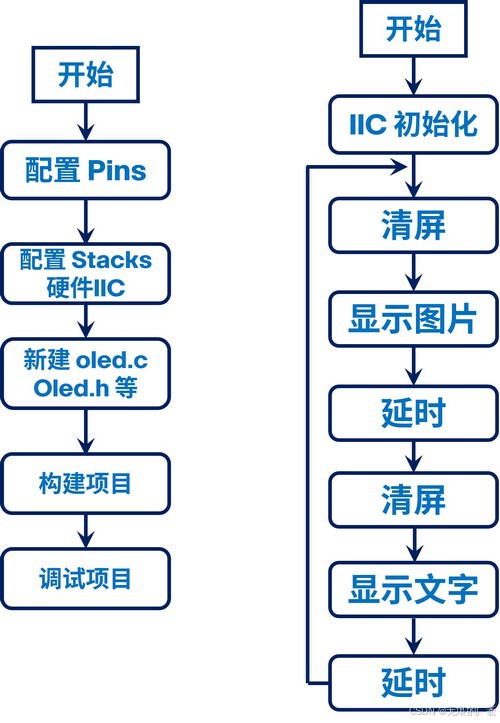

4 系统框图

在这里插入图片描述

5 代码

主函数 hal_entry.c

#include "hal_data.h"
#include "oled.h"
#include "stdint.h"
#include "bmp.h"/* SDA P100 */
/* SCL P102 */FSP_CPP_HEADER
void R_BSP_WarmStart(bsp_warm_start_event_t event);
FSP_CPP_FOOTERi2c_master_event_t i2c_event = I2C_MASTER_EVENT_ABORTED;
void sau_i2c_master_callback(i2c_master_callback_args_t *p_args)
{i2c_event = I2C_MASTER_EVENT_ABORTED;if (NULL != p_args){/* capture callback event for validating the i2c transfer event*/i2c_event = p_args->event;}
}fsp_err_t err = FSP_SUCCESS;
int  timeout_ms = 100;/*
main() is generated by the RA Configuration editor and is used to generate threads if an RTOS is used.  This functionis called by main() when no RTOS is used.
*/
void hal_entry(void)
{/* TODO: add your own code here *//* IIC initicalized*/err = R_SAU_I2C_Open(&g_i2c0_ctrl, &g_i2c0_cfg);assert(FSP_SUCCESS == err);WriteCmd();//OLED初始化while(1){/*---------- Picture ------------*/OLED_Clear();//clear screenOLED_DrawBMP(0,0,128,8,BMP1);R_BSP_SoftwareDelay(500, BSP_DELAY_UNITS_MILLISECONDS);/*----------- Text ------------*/OLED_Clear();//clear screenOLED_ShowString(0,0,"RA",16);OLED_ShowCHinese(16,0,0);//生OLED_ShowCHinese(32,0,1);//态OLED_ShowCHinese(48,0,2);//工OLED_ShowCHinese(64,0,3);//作OLED_ShowCHinese(80,0,4);//室OLED_ShowString(0,2,"2024.12.14",16);OLED_ShowString(0,4,"Renesas RA0E1",16);R_BSP_SoftwareDelay(500, BSP_DELAY_UNITS_MILLISECONDS);}
#if BSP_TZ_SECURE_BUILD/* Enter non-secure code */R_BSP_NonSecureEnter();
#endif
}/*
This function is called at various points during the startup process.  This implementation uses the event that is* called right before main() to set up the pins.** @param[in]  event    Where at in the start up process the code is currently at
*/
void R_BSP_WarmStart(bsp_warm_start_event_t event)
{if (BSP_WARM_START_RESET == event){
#if BSP_FEATURE_FLASH_LP_VERSION != 0/* Enable reading from data flash. */R_FACI_LP->DFLCTL = 1U;/* Would normally have to wait tDSTOP(6us) for data flash recovery. Placing the enable here, before clock and* C runtime initialization, should negate the need for a delay since the initialization will typically take more than 6us. */
#endif}if (BSP_WARM_START_POST_C == event){/* C runtime environment and system clocks are setup. *//* Configure pins. */R_IOPORT_Open (&IOPORT_CFG_CTRL, &IOPORT_CFG_NAME);#if BSP_CFG_SDRAM_ENABLED/* Setup SDRAM and initialize it. Must configure pins first. */R_BSP_SdramInit(true);
#endif}
}#if BSP_TZ_SECURE_BUILDFSP_CPP_HEADER
BSP_CMSE_NONSECURE_ENTRY void template_nonsecure_callable ();/* Trustzone Secure Projects require at least one nonsecure callable function in order to build (Remove this if it is not required to build). */
BSP_CMSE_NONSECURE_ENTRY void template_nonsecure_callable ()
{}
FSP_CPP_FOOTER#endif

oled.c

#include "oled.h"
#include "oledfont.h"          //头文件
#include "hal_data.h"
#include "stdint.h"uint8_t CMD_Data[]={
0xAE,
0x00,
0x10,
0x40,
0xB0,
0x81,
0xFF,
0xA1,
0xA6,
0xA8,
0x3F,
0xC8,
0xD3,
0x00,
0xD5,
0x80,
0xD8,
0x05,
0xD9,
0xF1,
0xDA,
0x12,
0xD8,
0x30,
0x8D,
0x14,
0xAF
};      //初始化命令extern fsp_err_t err;
extern int  timeout_ms;
extern  i2c_master_event_t i2c_event ;void WriteCmd(void)
{uint8_t i = 0;uint8_t ii[2]={0x00,0x00};for(i=0;i<27;i++){ii[1]=CMD_Data[i];//err = R_IIC_MASTER_Write(&g_i2c_master0_ctrl, ii, 0x02, true);err = R_SAU_I2C_Write(&g_i2c0_ctrl, ii, 0x02, true);assert(FSP_SUCCESS == err);/* Since there is nothing else to do, block until Callback triggers*/while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms>0){R_BSP_SoftwareDelay(1U, BSP_DELAY_UNITS_MICROSECONDS);timeout_ms--;}if (I2C_MASTER_EVENT_ABORTED == i2c_event){__BKPT(0);}/* Read data back from the I2C slave */i2c_event = I2C_MASTER_EVENT_ABORTED;timeout_ms           = 100;}
}//向设备写控制命令void OLED_WR_CMD(uint8_t cmd){uint8_t ii[2]={0x00,0x00};ii[1]=cmd;//err = R_IIC_MASTER_Write(&g_i2c_master0_ctrl, ii, 0x02, true);err = R_SAU_I2C_Write(&g_i2c0_ctrl, ii, 0x02, true);assert(FSP_SUCCESS == err);/* Since there is nothing else to do, block until Callback triggers*///while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms)while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms>0){R_BSP_SoftwareDelay(1U, BSP_DELAY_UNITS_MICROSECONDS);timeout_ms--;}if (I2C_MASTER_EVENT_ABORTED == i2c_event){__BKPT(0);}/* Read data back from the I2C slave */i2c_event = I2C_MASTER_EVENT_ABORTED;timeout_ms           = 100;}
//向设备写数据
void OLED_WR_DATA(uint8_t data)
{uint8_t ii[2]={0x40,0x00};ii[1]=data;//err = R_IIC_MASTER_Write(&g_i2c_master0_ctrl, ii, 0x02, true);err = R_SAU_I2C_Write(&g_i2c0_ctrl, ii, 0x02, true);assert(FSP_SUCCESS == err);/* Since there is nothing else to do, block until Callback triggers*/while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms>0){R_BSP_SoftwareDelay(1U, BSP_DELAY_UNITS_MICROSECONDS);timeout_ms--;}if (I2C_MASTER_EVENT_ABORTED == i2c_event){__BKPT(0);}/* Read data back from the I2C slave */i2c_event = I2C_MASTER_EVENT_ABORTED;timeout_ms           = 100;}
//清屏
void OLED_Clear(void)
{uint8_t i,n;for(i=0;i<8;i++){OLED_WR_CMD(0xb0+i);//设置页地址（0~7）OLED_WR_CMD (0x00); //设置显示位置—列低地址OLED_WR_CMD (0x10); //设置显示位置—列高地址for(n=0;n<128;n++)OLED_WR_DATA(0);//更新显示}
/*for(i=0; i<27; i++){HAL_I2C_Mem_Write(&hi2c1 ,0x78,0x00,I2C_MEMADD_SIZE_8BIT,CMD_Data+i,1,0x100);}
*/
}
//开启OLED显示
void OLED_Display_On(void)
{OLED_WR_CMD(0X8D);  //SET DCDC命令OLED_WR_CMD(0X14);  //DCDC ONOLED_WR_CMD(0XAF);  //DISPLAY ON
}
//关闭OLED显示
void OLED_Display_Off(void)
{OLED_WR_CMD(0X8D);  //SET DCDC命令OLED_WR_CMD(0X10);  //DCDC OFFOLED_WR_CMD(0XAE);  //DISPLAY OFF
}
//坐标设置
void OLED_Set_Pos(uint8_t x, uint8_t y)
{OLED_WR_CMD(0xb0+y);OLED_WR_CMD(((x&0xf0)>>4)|0x10);OLED_WR_CMD(x&0x0f);
}
void OLED_On(void)
{uint8_t i,n;for(i=0;i<8;i++){OLED_WR_CMD(0xb0+i);    //设置页地址（0~7）OLED_WR_CMD(0x00);      //设置显示位置—列低地址OLED_WR_CMD(0x10);      //设置显示位置—列高地址for(n=0;n<128;n++)OLED_WR_DATA(1);} //更新显示
}
unsigned int oled_pow(uint8_t m,uint8_t n)
{unsigned int result=1;while(n--)result*=m;return result;
}
//显示2个数字
//x,y :起点坐标
//len :数字的位数
//size:字体大小
//mode:模式   0,填充模式;1,叠加模式
//num:数值(0~4294967295);
void OLED_ShowNum(uint8_t x,uint8_t y,unsigned int num,uint8_t len,uint8_t size2)
{uint8_t t,temp;uint8_t enshow=0;for(t=0;t<len;t++){temp=(num/oled_pow(10,len-t-1))%10;if(enshow==0&&t<(len-1)){if(temp==0){OLED_ShowChar(x+(size2/2)*t,y,' ',size2);continue;}else enshow=1;}OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2);}
}
//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//mode:0,反白显示;1,正常显示
//size:选择字体 16/12
void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t Char_Size)
{unsigned char c=0,i=0;c=chr-' ';//得到偏移后的值if(x>128-1){x=0;y=y+2;}if(Char_Size ==16){OLED_Set_Pos(x,y);for(i=0;i<8;i++)OLED_WR_DATA(F8X16[c*16+i]);OLED_Set_Pos(x,y+1);for(i=0;i<8;i++)OLED_WR_DATA(F8X16[c*16+i+8]);}else {OLED_Set_Pos(x,y);for(i=0;i<6;i++)OLED_WR_DATA(F6x8[c][i]);}
}
//显示一个字符号串
void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr,uint8_t Char_Size)
{unsigned char j=0;while (chr[j]!='\0'){OLED_ShowChar(x,y,chr[j],Char_Size);//一次显示一个字符x+=8;if(x>120){x=0;y+=2;}j++;}
}
//显示汉字
//hzk 用取模软件得出的数组
void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no)
{uint8_t t,adder=0;
//定位（0xbx,x为第几行。0x1x ,x为列地址 高四位；0x0x，x为列地址第4位。
//比如你想定 位到第3行，第126(0x7e)列，就要写WrCmd(0xb3);WrCmd(0x17);WrCmd(0x0e);）OLED_Set_Pos(x,y);for(t=0;t<16;t++){OLED_WR_DATA(Hzk[2*no][t]);adder+=1;}OLED_Set_Pos(x,y+1);for(t=0;t<16;t++){OLED_WR_DATA(Hzk[2*no+1][t]);adder+=1;}
}
//--------------------------------------------------------------
// Prototype      : void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);
// Calls          :
// Parameters     : x0,y0 -- 起始点坐标(x0:0~127, y0:0~7); x1,y1 -- 起点对角线(结束点)的坐标(x1:1~128,y1:1~8)
// Description    : 显示BMP位图
//--------------------------------------------------------------
void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t BMP[])
{unsigned int j=0;unsigned char x,y;if(y1%8==0)y = y1/8;elsey = y1/8 + 1;for(y=y0;y<y1;y++){OLED_Set_Pos(x0,y);for(x=x0;x<x1;x++){OLED_WR_DATA(BMP[j++]);}}
}

oled.h

#ifndef OLED_H_
#define OLED_H_
#include "stdint.h"void WriteCmd(void);
void OLED_WR_CMD(uint8_t cmd);
void OLED_WR_DATA(uint8_t data);
void OLED_Init(void);
void OLED_Clear(void);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Set_Pos(uint8_t x, uint8_t y);
void OLED_On(void);
void OLED_ShowNum(uint8_t x,uint8_t y,unsigned int num,uint8_t len,uint8_t size2);
void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t Char_Size);
void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr,uint8_t Char_Size);
void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no);
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);#endif /* OLED_H_ */

oledfont.h

/** oledfont.h**  Created on: 2024年12月14日*      Author: h2457*/#ifndef OLEDFONT_H_
#define OLEDFONT_H_#include "stdint.h"//8*6 ASCII字符集点阵
const unsigned char F6x8[][6] =
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 00x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 10x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 20x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 30x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 40x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 50x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 60x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 70x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 80x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 90x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 550x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};//16*8 ASCII字符集点阵
const unsigned char F8X16[]=
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//sp /00x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//!  /10x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//"  /20x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//#  /30x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$  /40xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//%  /50x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//&  /60x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//'  /70x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//(  /80x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//)  /90x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//*  /100x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+  /110x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//,  /120x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//-  /130x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//.  /140x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,///  /150x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0  /160x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1  /170x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2  /180x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3  /190x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4  /200x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5  /210x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6  /220x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7  /230x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8  /240x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9  /250x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//:  /260x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//;  /270x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//<  /280x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//=  /290x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//>  /300x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//?  /310xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@  /320x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A  /330x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B  /340xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C  /350x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D  /360x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E  /370x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F  /380xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G  /390x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H  /400x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I  /410x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J  /420x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K  /430x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L  /440x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M  /450x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N  /460xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O  /470x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P  /480xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q  /490x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R  /500x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S  /510x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T  /520x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U  /530x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V  /540xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W  /550x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X  /560x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y  /570x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z  /580x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[  /590x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\  /600x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//]  /610x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^  /620x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_  /630x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//`  /640x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a  /650x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b  /660x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c  /670x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d  /680x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e  /690x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f  /700x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g  /710x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h  /720x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i  /730x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j  /740x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k  /750x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l  /760x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m  /770x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n  /780x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o  /790x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p  /800x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q  /810x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r  /820x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s  /830x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t  /840x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u  /850x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v  /860x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w  /870x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x  /880x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y  /890x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z  /900x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{  /910x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//}  /920x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00};//|  /93//部分汉字
const unsigned char Hzk[][32]=
{//年(0) 月(1) 日(2) 生(3) 态(4) 工(5) 作(6) 室(7){0x00,0x20,0x18,0xC7,0x44,0x44,0x44,0x44,0xFC,0x44,0x44,0x44,0x44,0x04,0x00,0x00},
{0x04,0x04,0x04,0x07,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"年",0*/{0x00,0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00},
{0x80,0x40,0x30,0x0F,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},/*"月",1*/{0x00,0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x00,0x00,0x00,0x00},/*"日",2*/{0x80,0x40,0x30,0x1E,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},
{0x40,0x40,0x42,0x42,0x42,0x42,0x42,0x7F,0x42,0x42,0x42,0x42,0x42,0x40,0x40,0x00},/*"生",3*/{0x00,0x04,0x84,0x84,0x44,0x24,0x54,0x8F,0x14,0x24,0x44,0x84,0x84,0x04,0x00,0x00},
{0x41,0x39,0x00,0x00,0x3C,0x40,0x40,0x42,0x4C,0x40,0x40,0x70,0x04,0x09,0x31,0x00},/*"态",4*/{0x00,0x04,0x04,0x04,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x04,0x04,0x00,0x00},
{0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00},/*"工",5*/{0x00,0x80,0x60,0xF8,0x07,0x40,0x30,0x0F,0xF8,0x88,0x88,0x88,0x88,0x08,0x08,0x00},
{0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,0x08,0x08,0x00,0x00},/*"作",6*/{0x10,0x0C,0x24,0x24,0xA4,0x64,0x25,0x26,0x24,0x24,0xA4,0x24,0x24,0x14,0x0C,0x00},
{0x40,0x40,0x48,0x49,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x4B,0x48,0x40,0x40,0x00},/*"室",7*/};#endif /* OLEDFONT_H_ */

bmp.h

/** bmp.h**  Created on: 2024年12月14日*      Author: h2457*/#ifndef BMP_H_
#define BMP_H_const unsigned char BMP1[] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x01,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xE1,0xE1,0xFF,0x7F,0x3F,0x1F,0x1E,0x00,0x00,0xF0,0xF8,0xF8,0xFC,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x04,0x00,0x00,0x00,0xFC,0xFC,0x1C,0x3C,0xF8,0xF8,0xE0,0xC0,0x80,0x00,0x00,0x00,0xFC,0xFC,0x00,0x00,0x00,0xF0,0xF8,0xF8,0xFC,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x8C,0x04,0x00,0x00,0x30,0x78,0xFC,0xFC,0xFC,0xCC,0xCC,0xCC,0x8C,0x8C,0x8C,0x0C,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF8,0x7C,0x3C,0x1C,0x7C,0xFC,0xF8,0xE0,0xC0,0x00,0x00,0x00,0x30,0x78,0xFC,0xFC,0xFC,0xCC,0xCC,0xCC,0x8C,0x8C,0x8C,0x0C,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x1F,0x1F,0x1F,0x00,0x00,0x00,0x00,0x03,0x07,0x0F,0x0F,0x1E,0x38,0x30,0x60,0x60,0xC0,0x8F,0x1F,0x1F,0x3F,0x38,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x00,0x00,0x00,0x3F,0x3F,0x00,0x00,0x00,0x01,0x03,0x07,0x0F,0x1F,0x3E,0x3C,0x3F,0x3F,0x00,0x00,0x00,0x07,0x1F,0x1F,0x3F,0x38,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x00,0x00,0x20,0x30,0x30,0x30,0x30,0x31,0x31,0x31,0x33,0x33,0x3F,0x3F,0x1F,0x1E,0x0C,0x20,0x38,0x3C,0x3F,0x1F,0x07,0x01,0x00,0x30,0x30,0x30,0x31,0x33,0x3F,0x3F,0x3F,0x3C,0x38,0x30,0x30,0x30,0x30,0x30,0x31,0x31,0x31,0x33,0x33,0x3F,0x3F,0x1F,0x1E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};#endif /* BMP_H_ */

6 效果展示

如主代码所示，图片和文字交替显示。每隔 500ms 刷新页面一次。
在这里插入图片描述

瑞萨 RA0E1 芯片具有高性能、功耗比和性价比等优异特性，配合 Renesas 完善的开发环境，便捷的操作和 GPIO 配置、IIC 配置等，可以实现项目的快捷开发和调试。

希望这次测评能够为广大电子爱好者提供参考，并在今后的项目中得到应用。
